Point-of-Use Solids Interceptors

Keep your drains clear by intercepting solids at the source.

Common Applications

  • 01. Art rooms sinks
  • 02. Dog wash sinks
  • 03. Washing machines
  • 04. Barber shops and hair salons

SIDEKICK

Point-of-use side-access solids interceptor

$520 list

Screen perforations
1/8" diameter
Weight
3.2 lbs.
Solids capacity
0.17 gal.

DIMENSIONS

L x W x H
10-5/8" x 7-7/16" x 7-7/16"

CONNECTIONS

Inlet & Outlets
1-1/2" or 2"

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

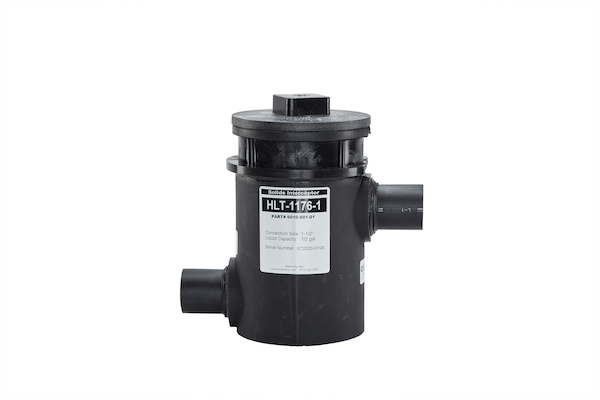

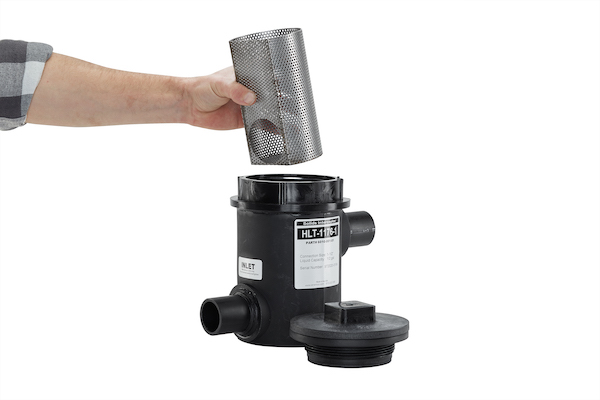

HLT-1176-1

Under-sink hair and lint trap, 1-½” connections, top access

$420 list

Liquid capacity
1/2 gal.
Basket perforations
1/10" diameter
Clearance for maintenance
8-½”
Weight
4 lbs.

DIMENSIONS

Dia. x H
5-½” x 8-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

HLT-1176-2

Under-sink hair and lint trap, 2” connections, top access

$420 list

Liquid capacity
1/2 gal.
Basket perforations
1/10" diameter
Clearance for maintenance
8-½”
Weight
4 lbs.

DIMENSIONS

Dia. x H
5-½” x 8-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

HLB-1176-1

Under-sink hair and lint trap, 1-½” connections, bottom access

$420 list

Liquid capacity
1/2 gal.
Basket perforations
1/10" diameter
Clearance for maintenance
8-½”
Weight
4 lbs.

DIMENSIONS

Dia. x H
5-½” x 8-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

HLB-1176-2

Under-sink hair and lint trap, 2” connections, bottom access

$420 list

Liquid capacity
1/2 gal.
Basket perforations
1/10" diameter
Clearance for maintenance
8-½”
Weight
4 lbs.

DIMENSIONS

Dia. x H
5-½” x 8-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

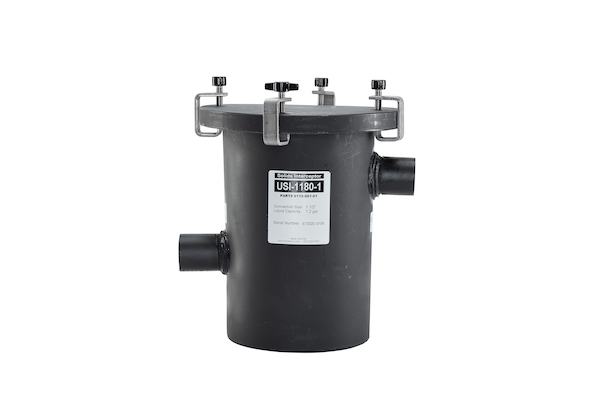

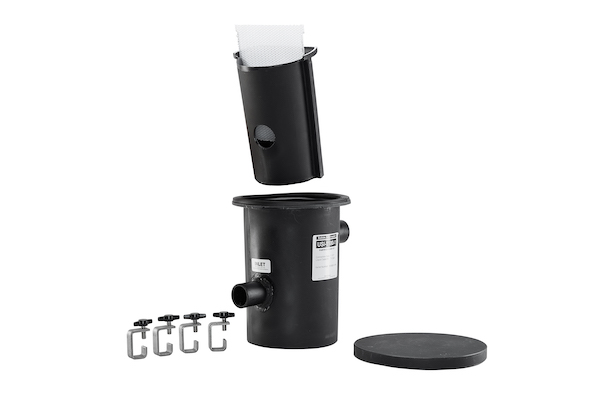

USI-1180-1

Plaster trap, 1-½” connections, top access

$420 list

Liquid capacity
1.2 gal.
Screen perforations
1/10" diameter
Clearance for maintenance
11-½"
Weight
7 lbs.

DIMENSIONS

Dia. x H
11” x 11-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

USI-1180-2

Plaster trap, 2” connections, top access

$420 list

Liquid capacity
1.2 gal.
Screen perforations
1/10" diameter
Clearance for maintenance
11-½"
Weight
7 lbs.

DIMENSIONS

Dia. x H
11” x 11-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

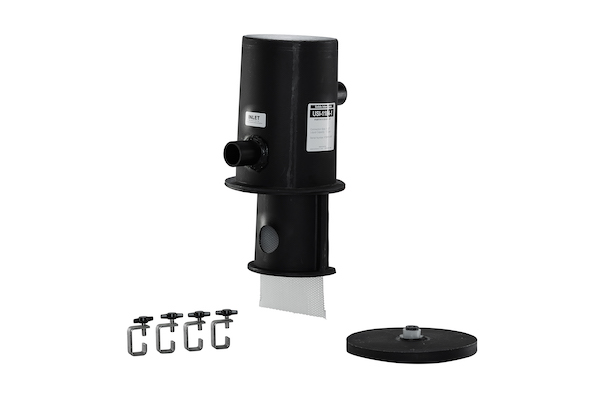

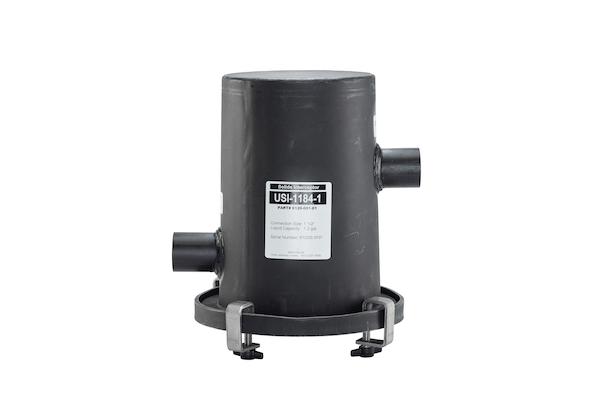

USI-1184-1

Plaster trap, 1-½” connections, bottom access

$420 list

Liquid capacity
1.2 gal.
Screen perforations
1/10" diameter
Clearance for maintenance
11-½"
Weight
7 lbs.

DIMENSIONS

Dia. x H
11” x 11-¾”

Downloads

Specifications
Revit
RFA
Installation & Maintenance
PDF

USI-1184-2

Plaster trap, 2” connections, bottom access

$420 list

Liquid capacity
1.2 gal.
Screen perforations
1/10" diameter
Clearance for maintenance
11-½"
Weight
7 lbs.

DIMENSIONS

Dia. x H
11” x 11-¾”

Downloads

Specifications
Revit
RFA
Install & Maint.
PDF

Polyethylene Construction

Lightweight, easy to install, and does not break down.

Thoughtful Design

The USI and HLT can be installed in lieu of a p-trap, saving you time and space.

Easy to maintain

With top and bottom access options, you have installation flexibility.
