OS-75
OS-350

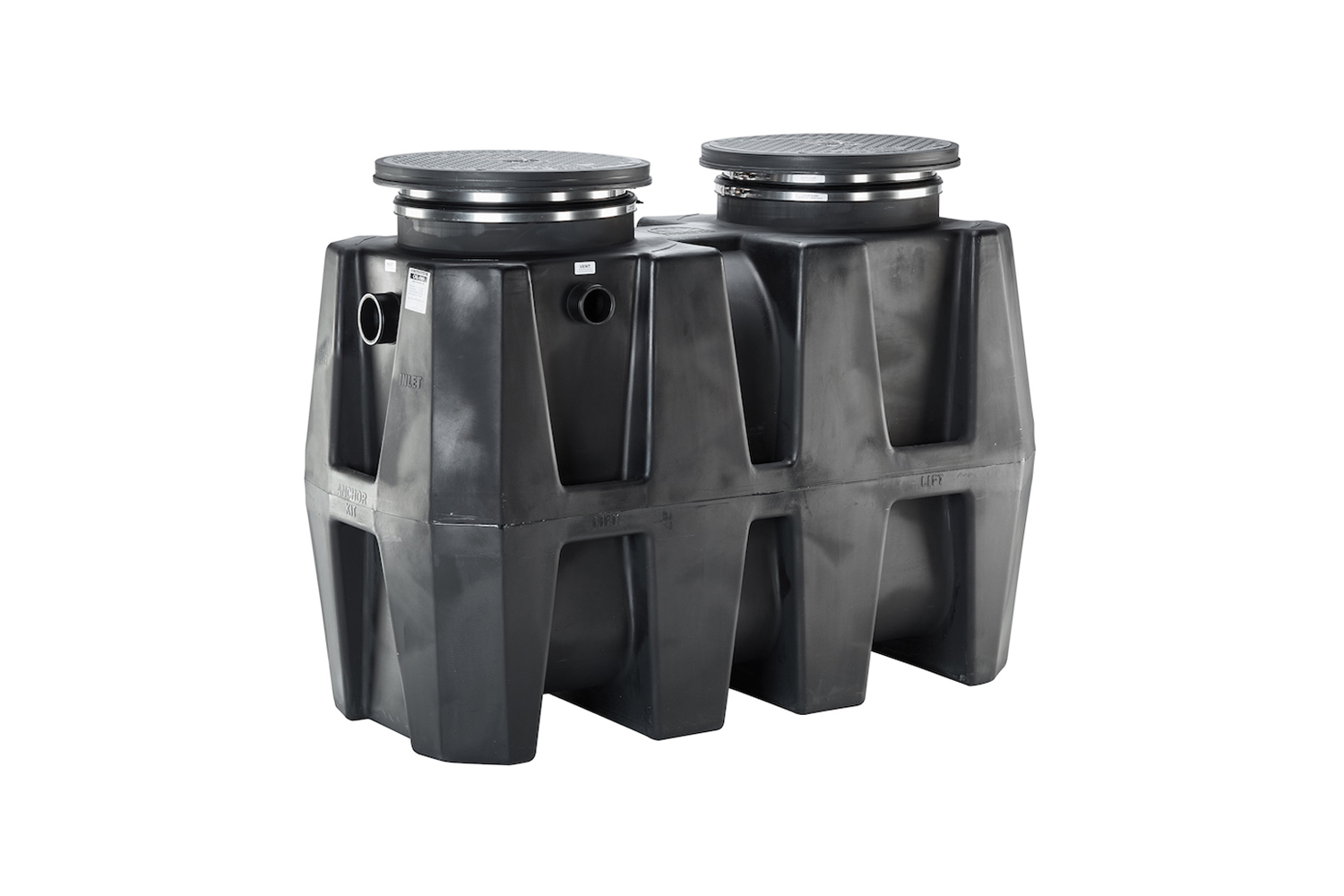

OS-100

High Efficiency Oil/Water Separator

100 GPM | 99% Efficient

UPC Listed by IAPMO to IGC 325

$7,100 list

Ships in: 3 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    100 GPM

  • Weight

    225 lbs.

Capacities

  • Total

    250 gal. / 33.4 cu. ft.

  • Oil

    62.5 gal.

  • Sand

    95 gal.

Dimensions

  • L x W x H

    68" x 33" x 51-1/2"

Connections

  • Inlet & Outlet

    4” plain end

  • Vents

    3” plain end

Material of Construction

  • Tank

    Polyethylene

  • Covers

    Composite

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    6” plain end (-6P)

Covers

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5"

    Included with cover adapter

  • Up to 24"

    SR-24 (x2)

  • Up to 39"

    LR-24 (x2)

  • Up to 43"

    SR-24 (x4)

  • Up to 58"

    SR-24 (x2) + LR-24 (x2)

  • Up to 72":

    LR-24 (x4)

  • Up to 90":

    SR-24 (x2) + LR-24 (x4)

  • -OR-

  • 11" - 90":

    CPRK (x2) (corrugated pipe by others)

Oil Level Monitoring System

High Water Hold Down Kit
