OS-50-SS

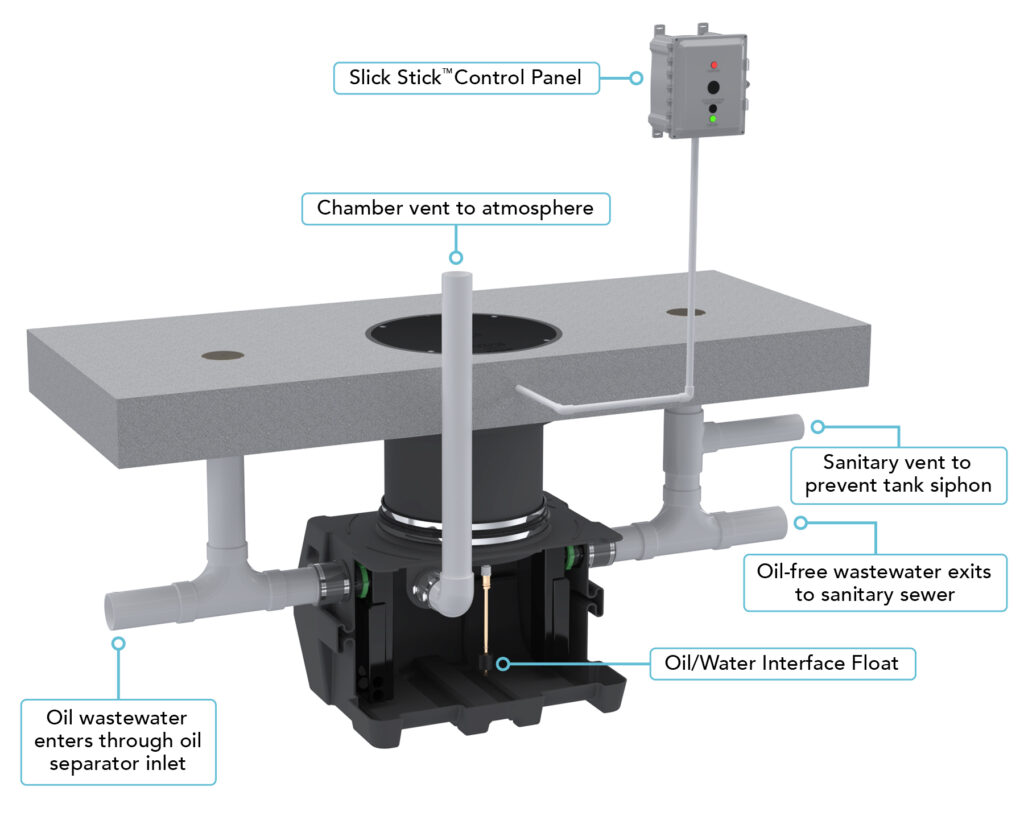

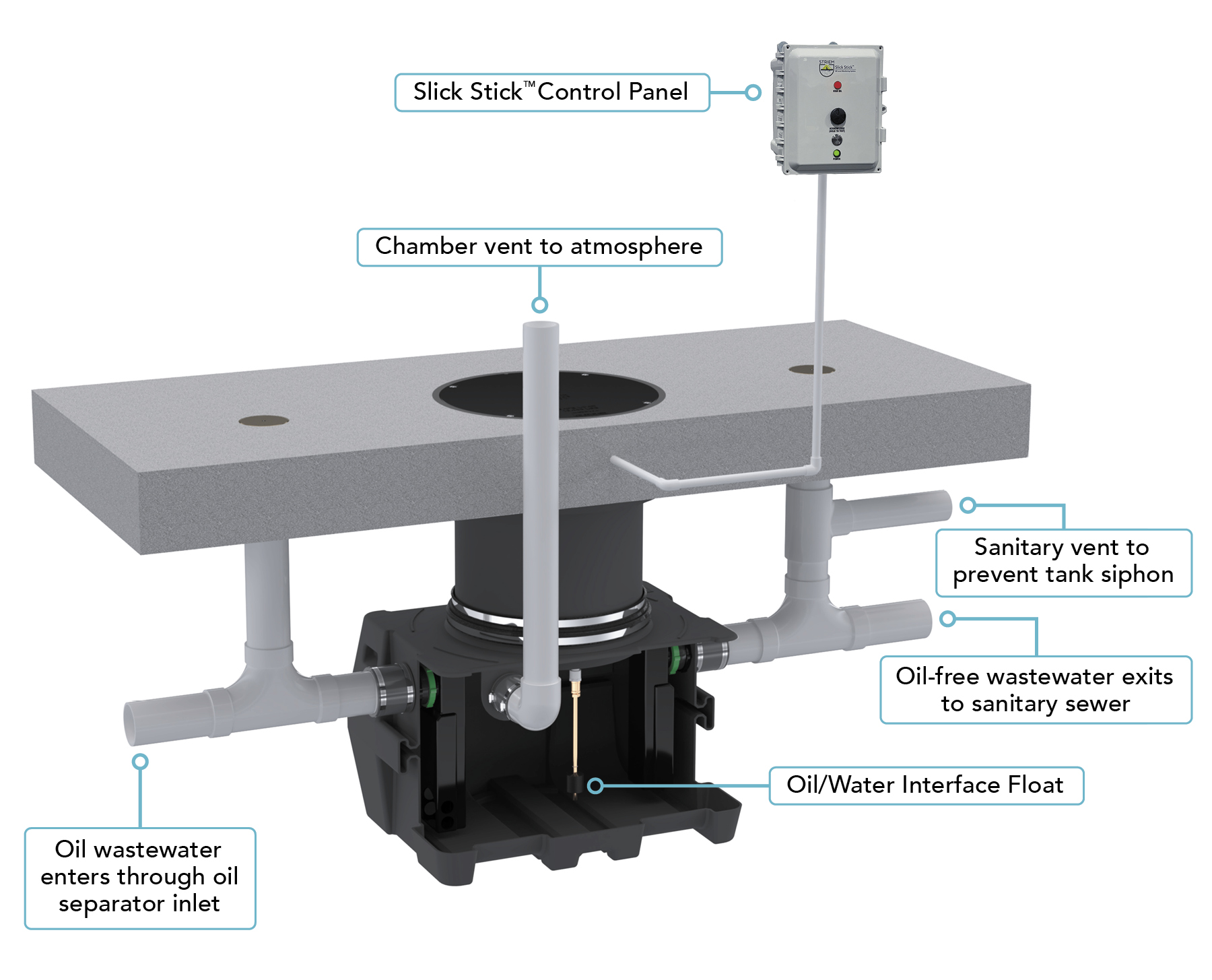

50 GPM Oil/Water Separator with Slick Stick™

Listed by IAPMO to IGC 325

$8,700 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
  • Flow Rate

    50 GPM

  • Weight

    93 lbs.

  • Tank is fabricated to accept Slick Stick™

CAPACITIES

  • Total

    57 gal. / 7.6 cu. ft.

  • Oil

    14.25 gal.

  • Sand

    7 gal.

DIMENSIONS

  • L x W x H

    37" x 28" x 31-1/2"

CONNECTIONS

  • Inlet & Outlet

    4" plain end

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Polyethylene

  • Cover

    Bolted composite

Slick Stick™

  • UL Listed

  • NEMA 4X weatherproof enclosure

  • 120 volt power required

  • Provides audible and visual indicator when oil level is met

  • Unit supplied with extra dry contact for BMS hookup

COVERS

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • Up to 21":

    SR-24

  • Up to 36":

    LR-24

High Water Hold Down Kit
