OS-75-SS

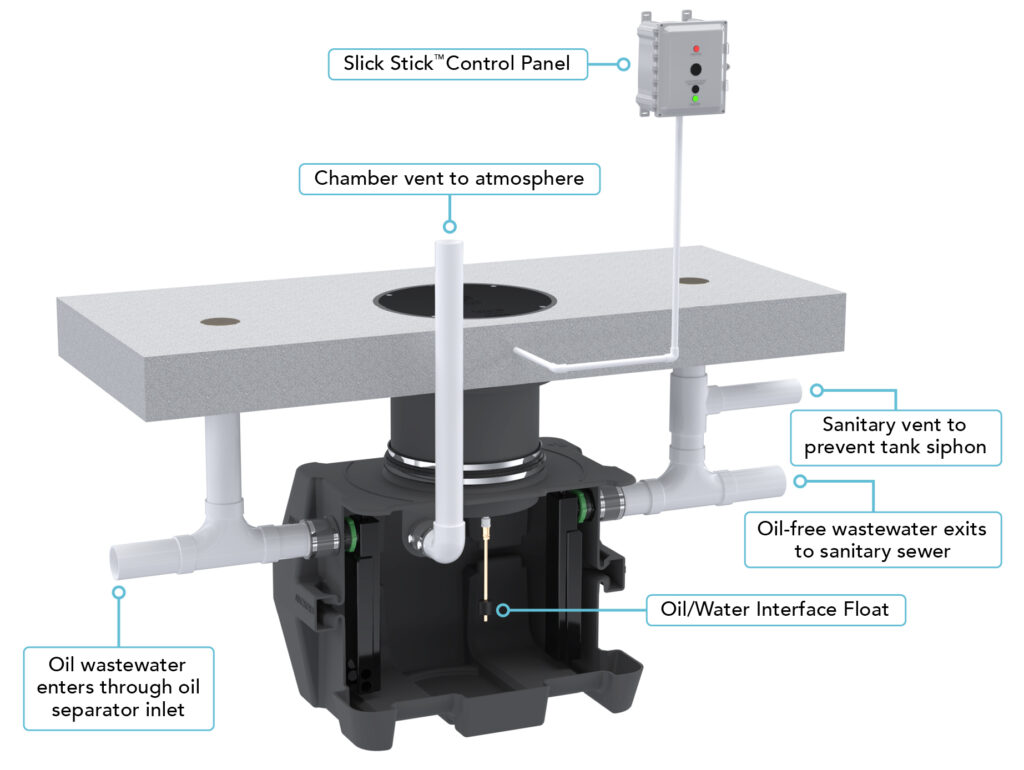

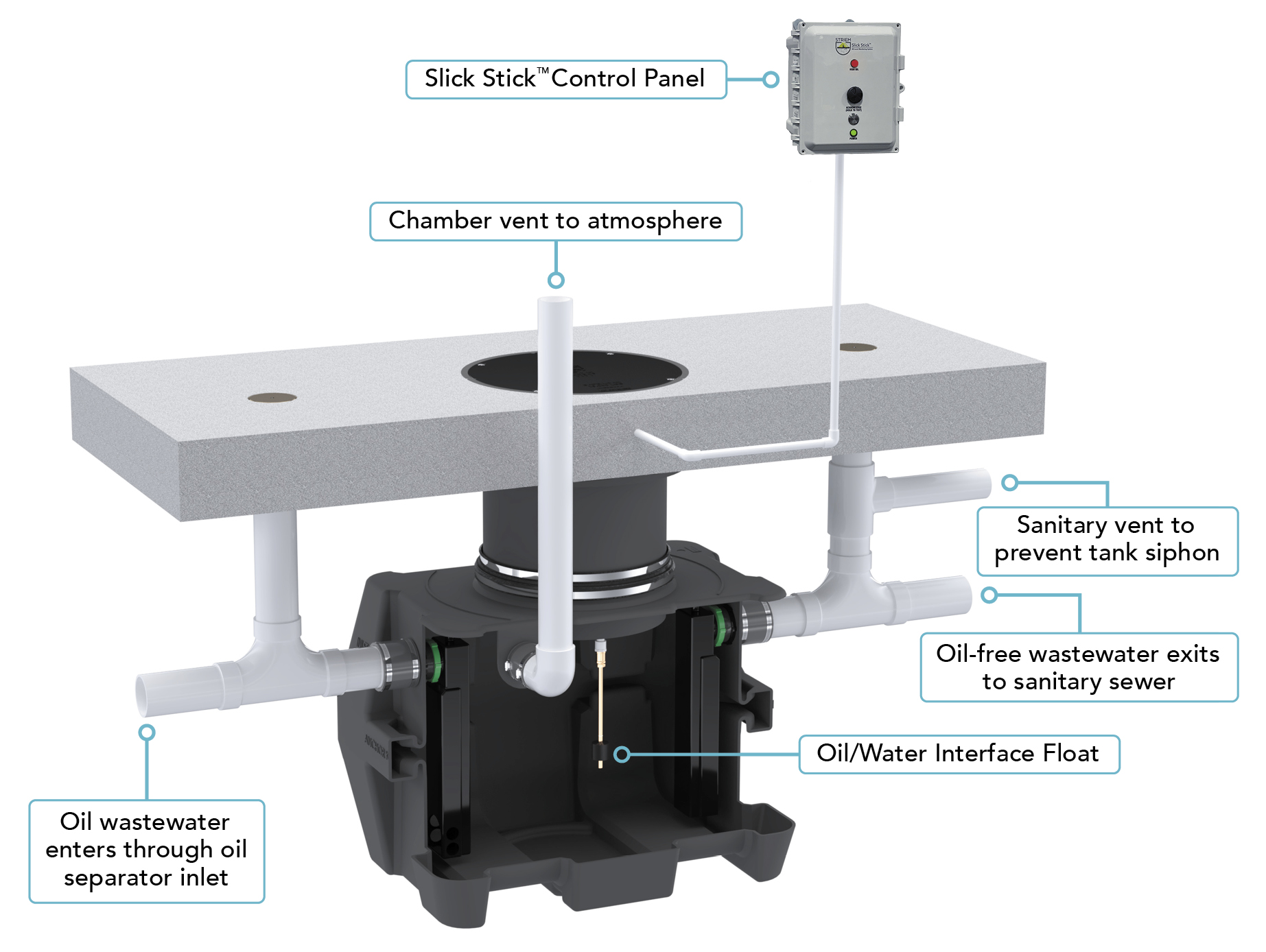

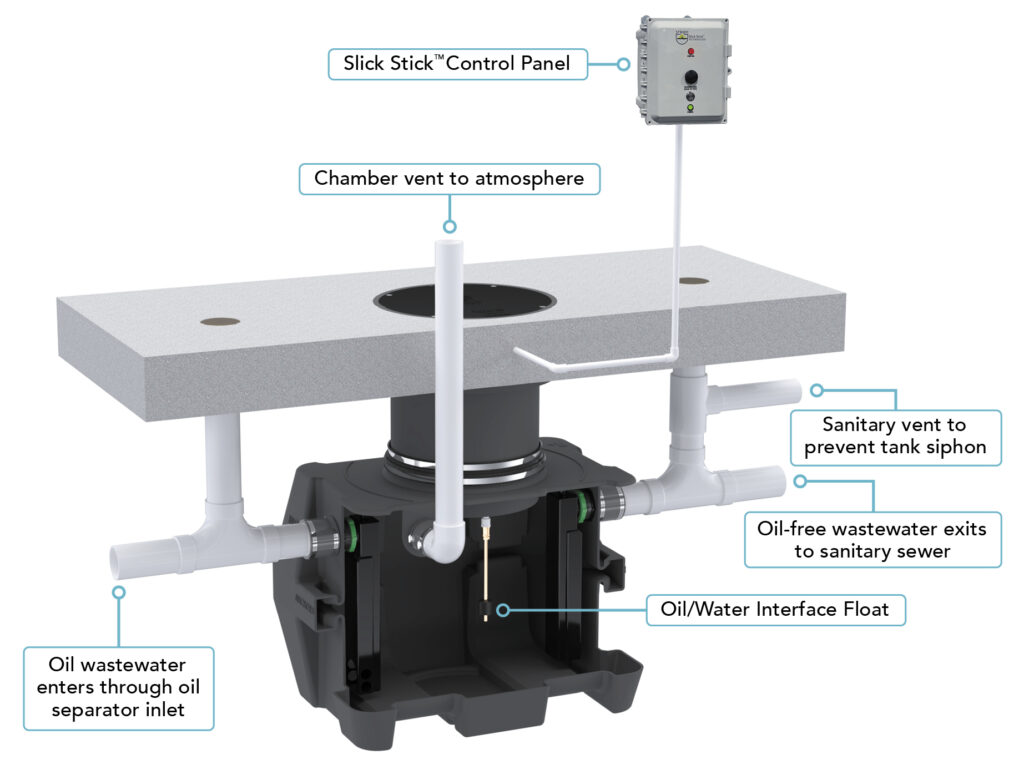

75 GPM Oil/Water Separator with Slick Stick™

Listed by IAPMO to IGC 325

$9,800 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
  • Flow Rate

    50 GPM

  • Weight

    120 lbs.

  • Tank is fabricated to accept Slick Stick™

CAPACITIES

  • Total

    110 gal. / 14.7 cu. ft.

  • Oil

    27.5 gal.

  • Sand

    11 gal.

DIMENSIONS

  • L x W x H

    46" x 32" x 41-1/2"

CONNECTIONS

  • Inlet & Outlet

    4" plain end

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Cover

    Traffic-rated bolted composite

Slick Stick™

  • UL Listed

  • NEMA 4X weatherproof enclosure

  • 120 volt power required

  • Provides audible and visual indicator when oil level is met

  • Unit supplied with extra dry contact for BMS hookup

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

COVER

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • Up to 21":

    SR-24

  • Up to 36":

    LR-24

  • Up to 40":

    SR-24 (x2)

  • Up to 55":

    SR-24 + LR-24

  • Up to 69":

    LR-24 (x2)

  • -OR-

  • 11" - 69":

    CPRK *corrugated pipe by others

High Water Hold Down Kit
