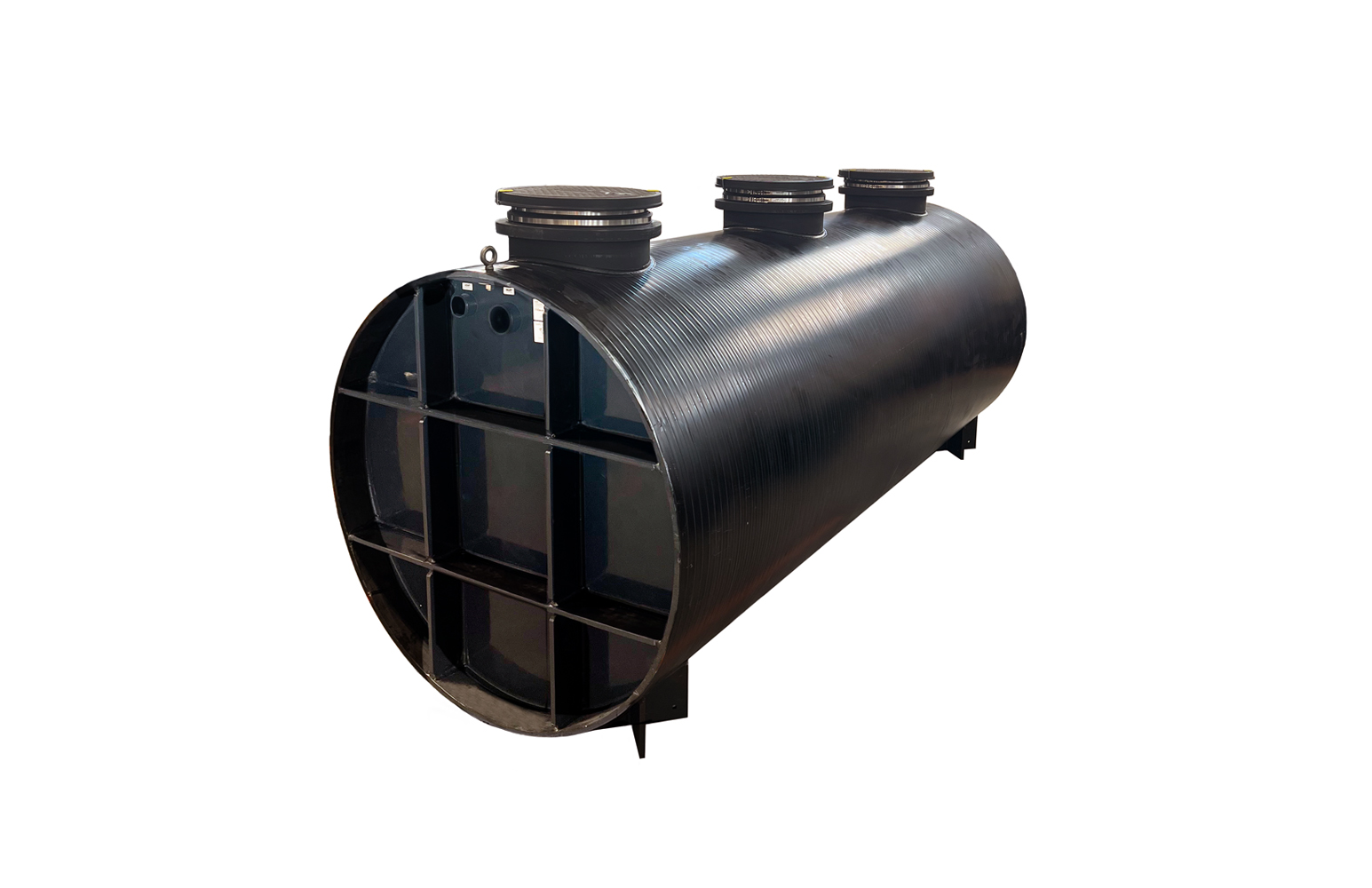

OT-2000-SS

2,000 Gallon Oil/Water Separator with Slick Stick™

Listed by IAPMO to IGC 183-2016

$46,900 list

Ships in: 7 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
  • Flow Rate

    314 GPM

  • Weight

    2,000 lbs. / 267 cu. ft.

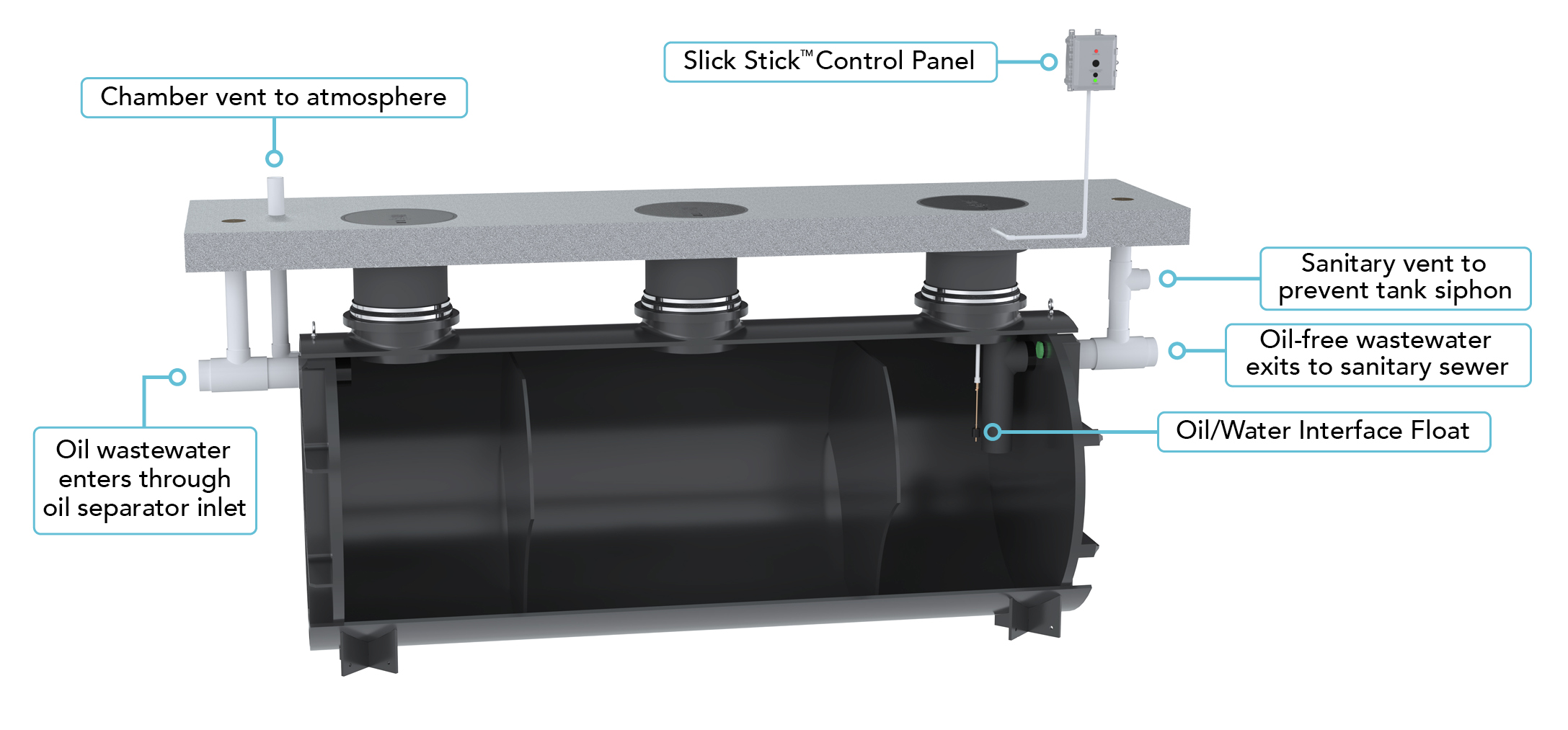

  • Tank is fabricated to accept Slick Stick™

CAPACITIES

  • Total

    2,000 gal. / 267 cu. ft.

  • Oil

    638 gal.

  • Sand

    1,077 gal.

DIMENSIONS

  • LxWxH

    168" x 67-3/4" x 80"

STANDARD CONNECTIONS

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    1" thick polyethylene

  • Covers

    H20-rated pickable cast iron

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

  • 8" plain end (-8P)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • Up to 21":

    SR-24 (x3)

  • Up to 36":

    LR-24 (x3)

  • Up to 40":

    SR-24 (x6)

  • Up to 55":

    SR-24 (x3) + LR-24 (x3)

  • Up to 69":

    LR-24 (x6)

  • Up to 87":

    SR-24 (x3) + LR-24 (x6)

  • Up to 103":

    LR-24 (x9)

  • -OR-

  • 11" - 103":

    CPRK (x3) *corrugated pipe by others

High Water Hold Down Kit
