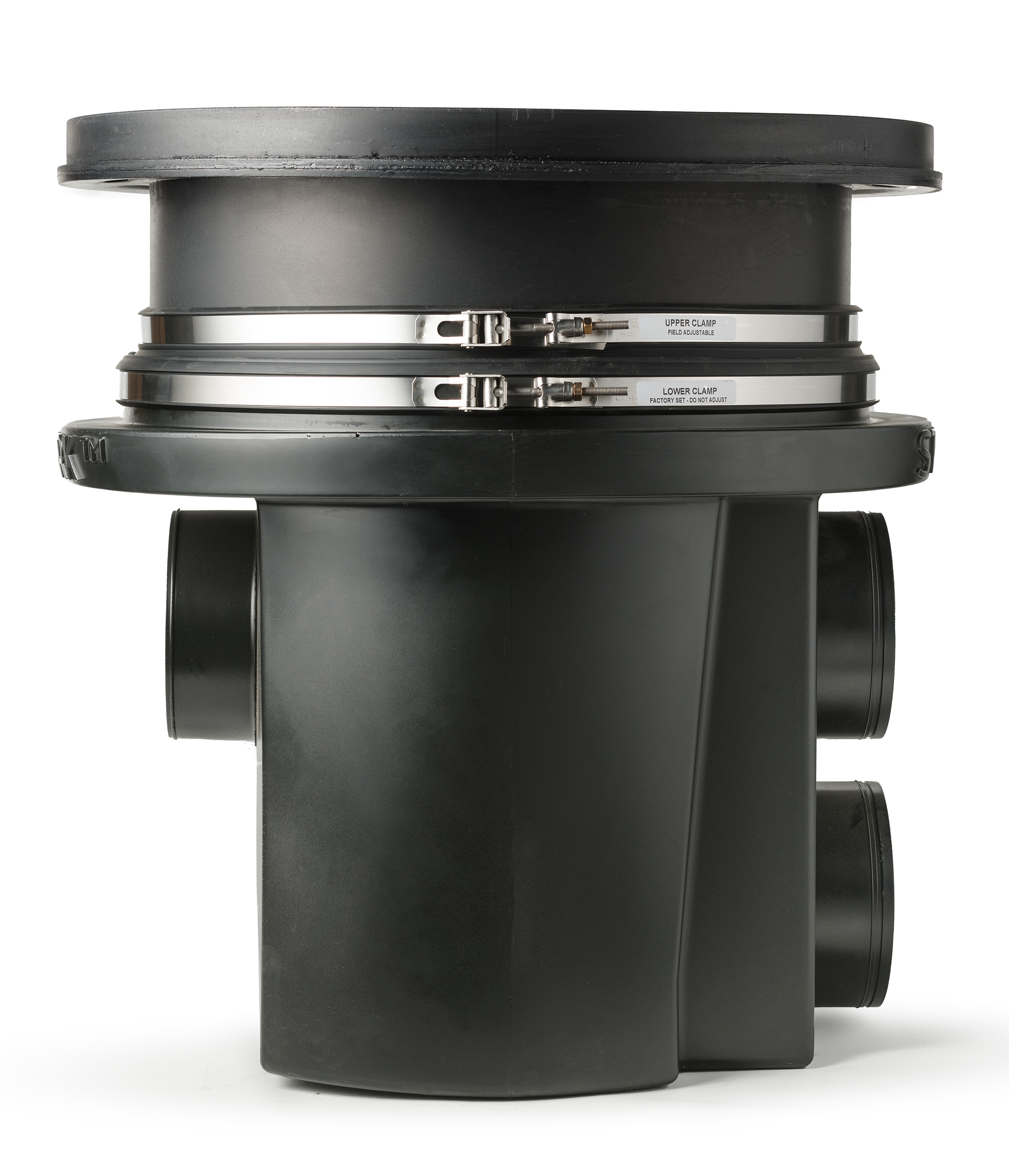

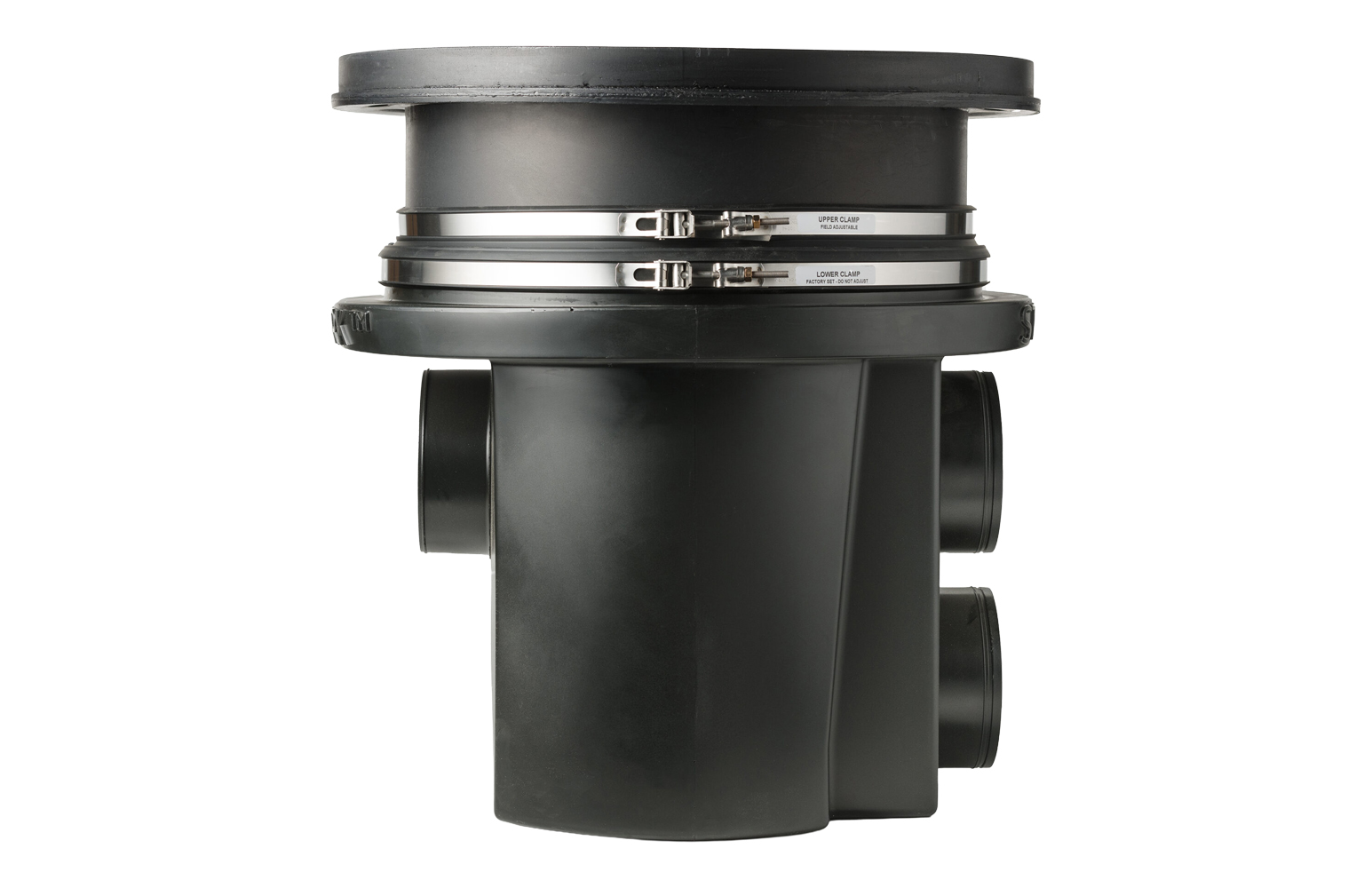

AA-6

6" Basket-style solids interceptor

Listed by IAPMO to IAPMO/ANSI/CAN Z1167

$3,000 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Dimensions (L x W x H)

    24-1/2" x 24-1/2" x 23"

  • Weight

    65 lbs.

  • Screen Perforations

    1/4"

  • Solids Capacity

    7 gal.

  • Flow Rate

    100 GPM

Four Available Models

AA-6

  • Inlet & Outlets

    6" Plain end connections

Materials of Construction

  • Tank

    Rotomolded polyethylene

  • Basket

    Rotomolded polyethylene

  • Screeen

    Perforated polypropylene

  • Cover

    Pedestrian-rated bolted composite

Covers

Spare Parts

  • Additional Basket

    $600 list

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24

  • Up to 39":

    LR-24

HIGH WATER TABLE HOLD DOWN KIT

  • Anchor Flange

    $400 list
