CB-125-G

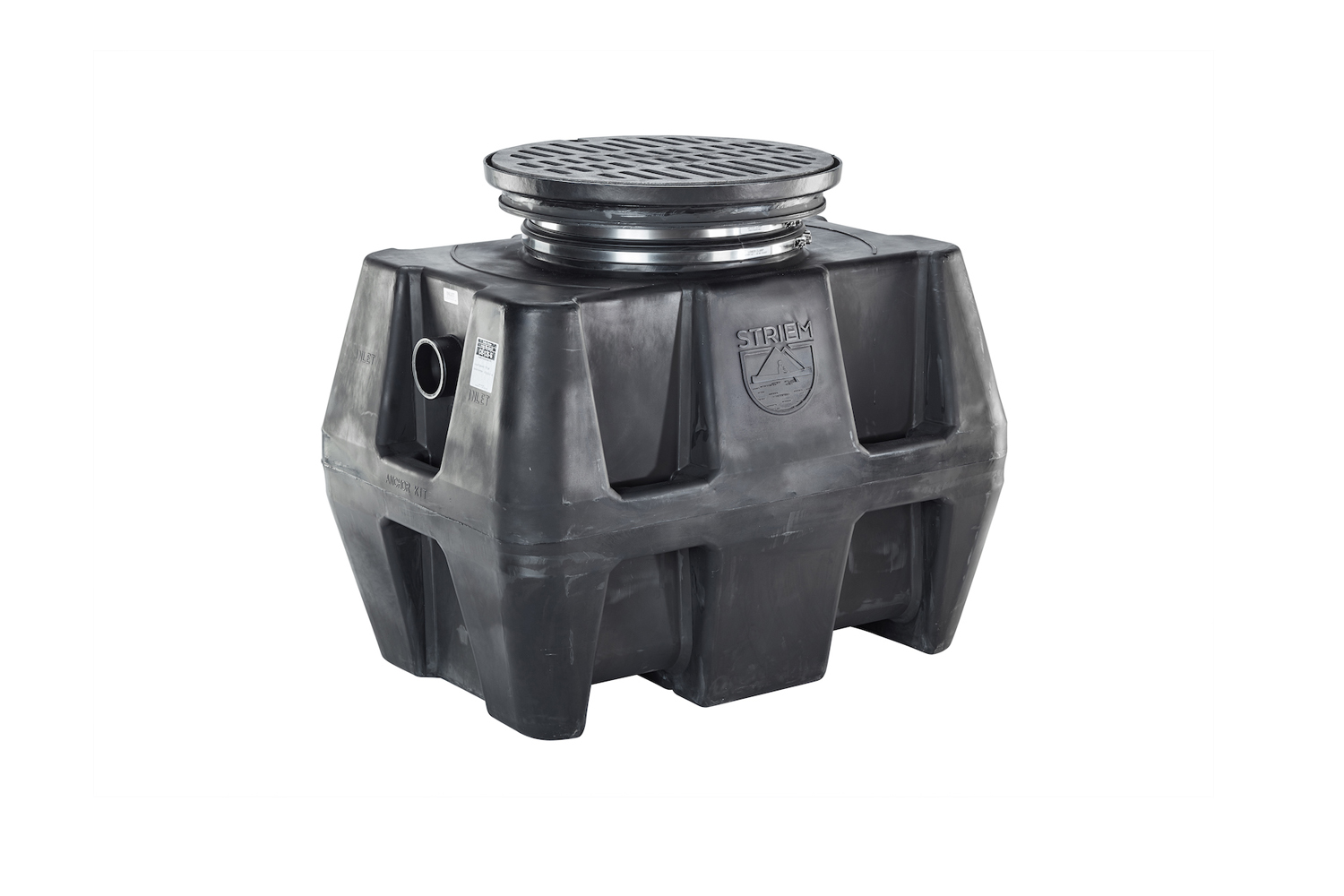

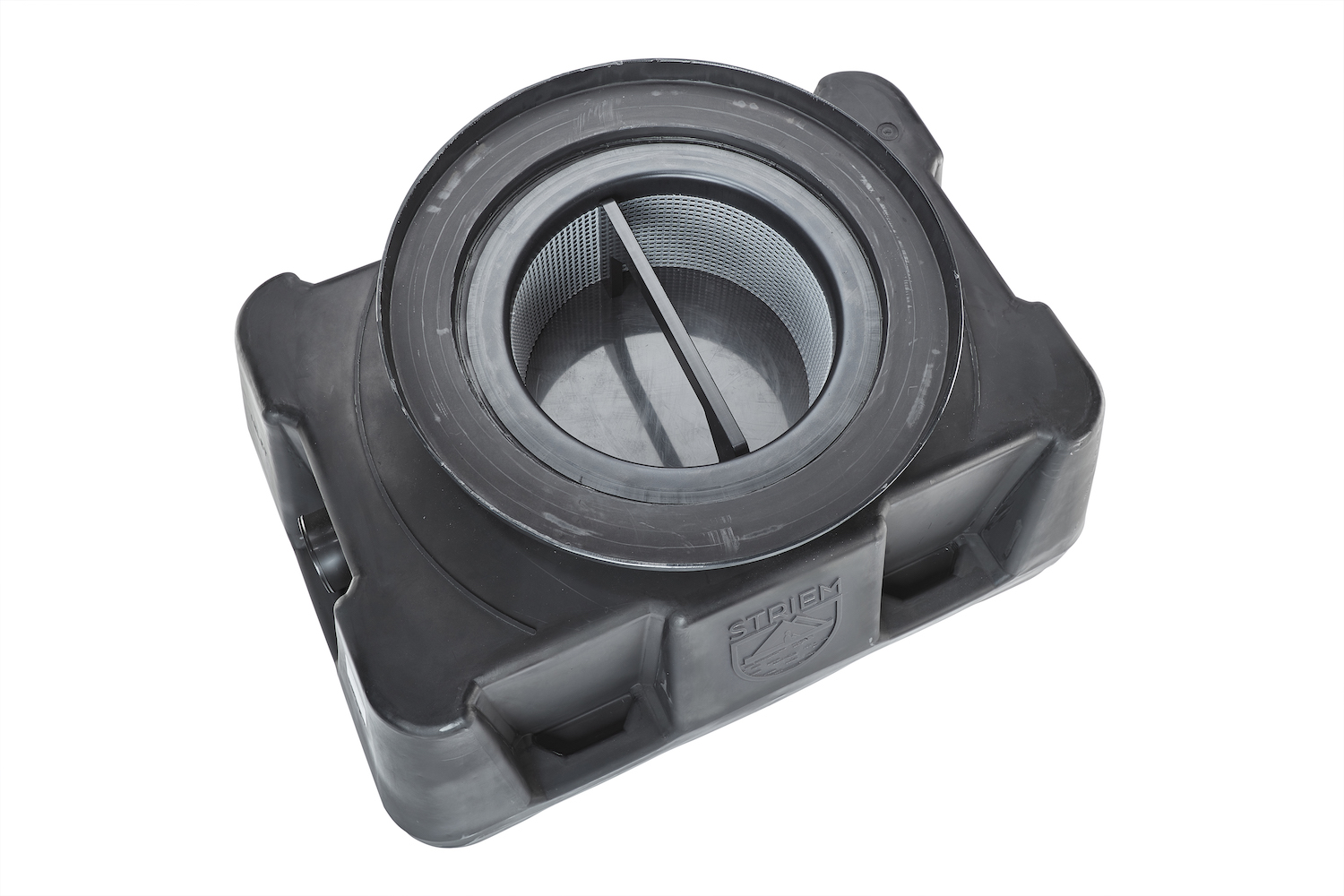

110 Gallon Sand Interceptor, Grated Cover

$4,900 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Weight

    227 lbs.

CAPACITIES

  • Liquid

    110 gal.

  • Solids

    70 gal.

  • Basket

    7 gal.

DIMENSIONS

  • L x W x H

    46" x 32" x 38-1/2"

CONNECTIONS

  • Inlet & Outlet

    4" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Cover

    H20-rated cast iron grate

CONNECTIONS

  • Inlet/Outlet

    4" plain end (-4P)

  • 6" plain end (-6P) (outlet only)

  • 6" plain end (-6P) (inlet & outlet) - 6" inlet can't be capped

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • 5 to 21":

    SR-24

  • Up to 36":

    LR-24

  • Up to 40":

    SR-24 (x2)

  • Up to 55":

    SR-24 + LR-24

  • Up to 69":

    LR-24 (x2)

HIGH WATER HOLD DOWN KIT
