CB-1500-SFL

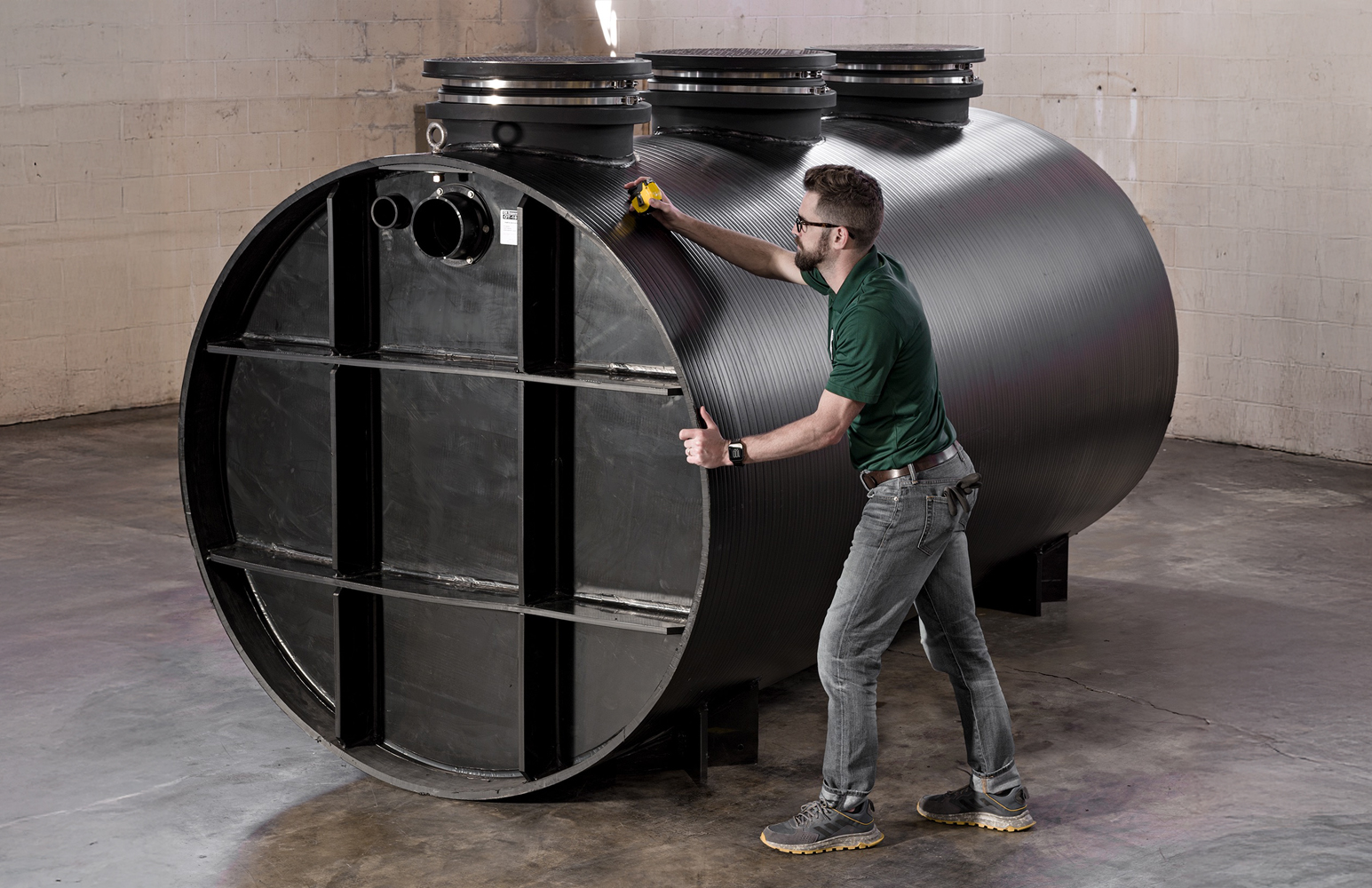

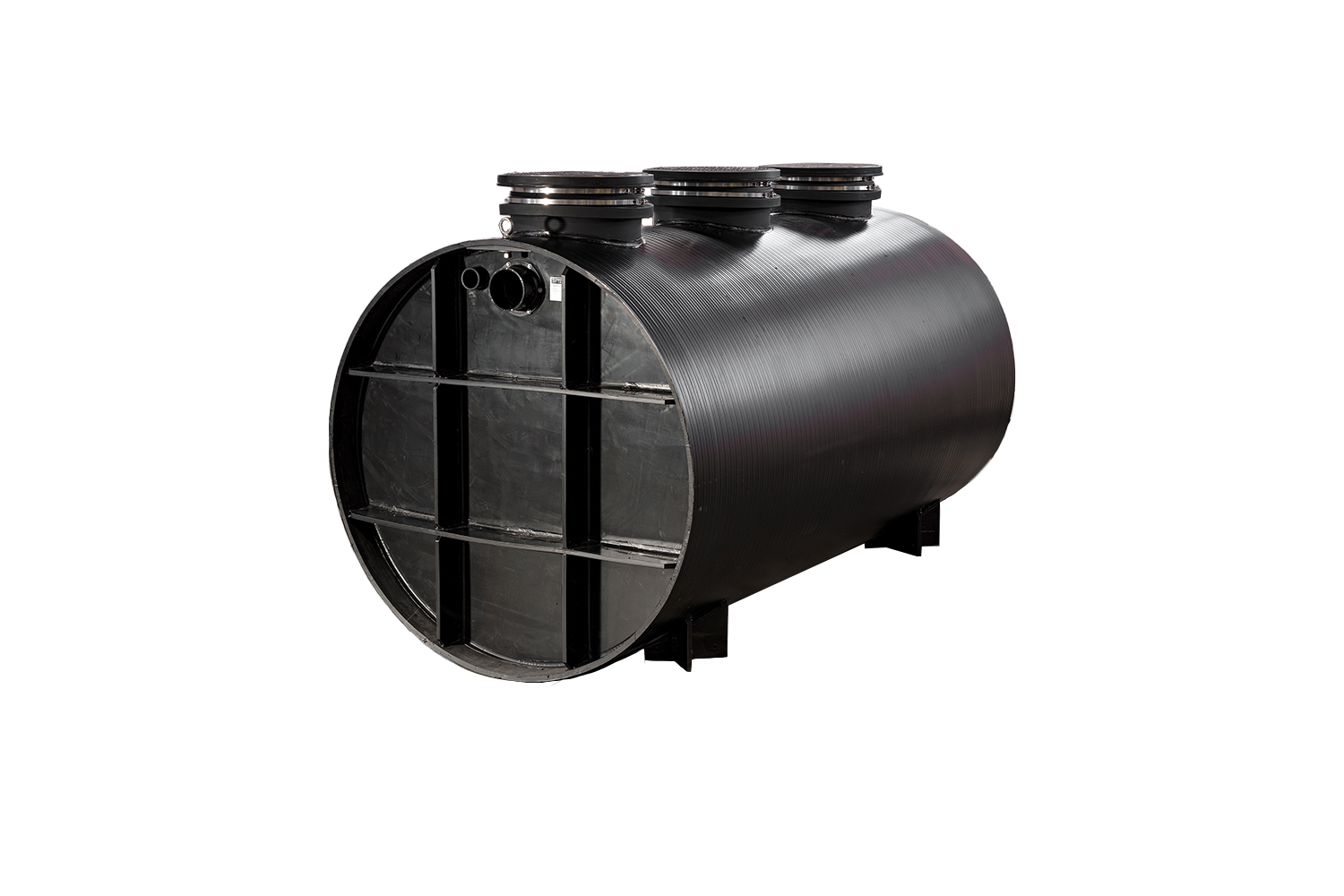

1,000 Gallon Solids Interceptor

$31,200 list

Ships in: 7 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Weight

    1,496 lbs.

CAPACITIES

  • Total

    1,500 gal. / 201 cu. ft.

  • Solids

    1,364 gal.

DIMENSIONS

  • L x W x H

    132" x 67-3/4" x 77"

CONNECTIONS

  • Vent

    3" plain end

MATERIAL OF CONSTRUCTION

  • 1" thick polyethylene

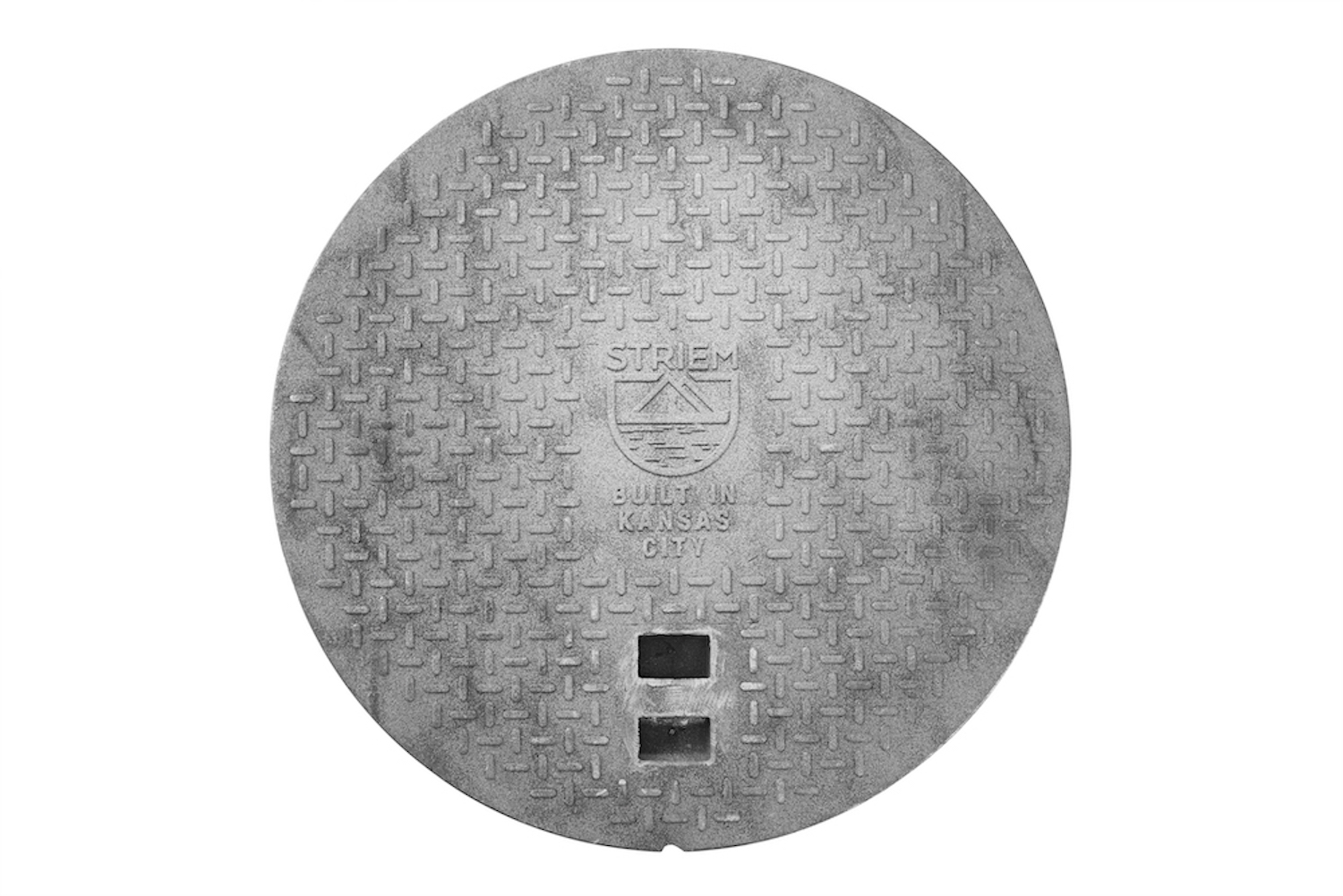

  • Covers

    H20-rated pickable cast iron

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

COVER

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24 (x3)

  • Up to 39":

    LR-24 (x3)

  • Up to 43":

    SR-24 (x6)

  • Up to 58":

    SR-24 (x3) + LR-24 (x3)

  • Up to 72":

    LR-24 (x6)

  • Up to 90":

    SR-24 (x3) + LR-24 (x6)

  • Up to 106":

    LR-24 (x9)

  • -OR-

  • 11" - 106":

    CPRK (x3) *corrugated pipe by others

HIGH WATER HOLD DOWN KIT
