CB-275-S
CB-500-G

CB-500-S

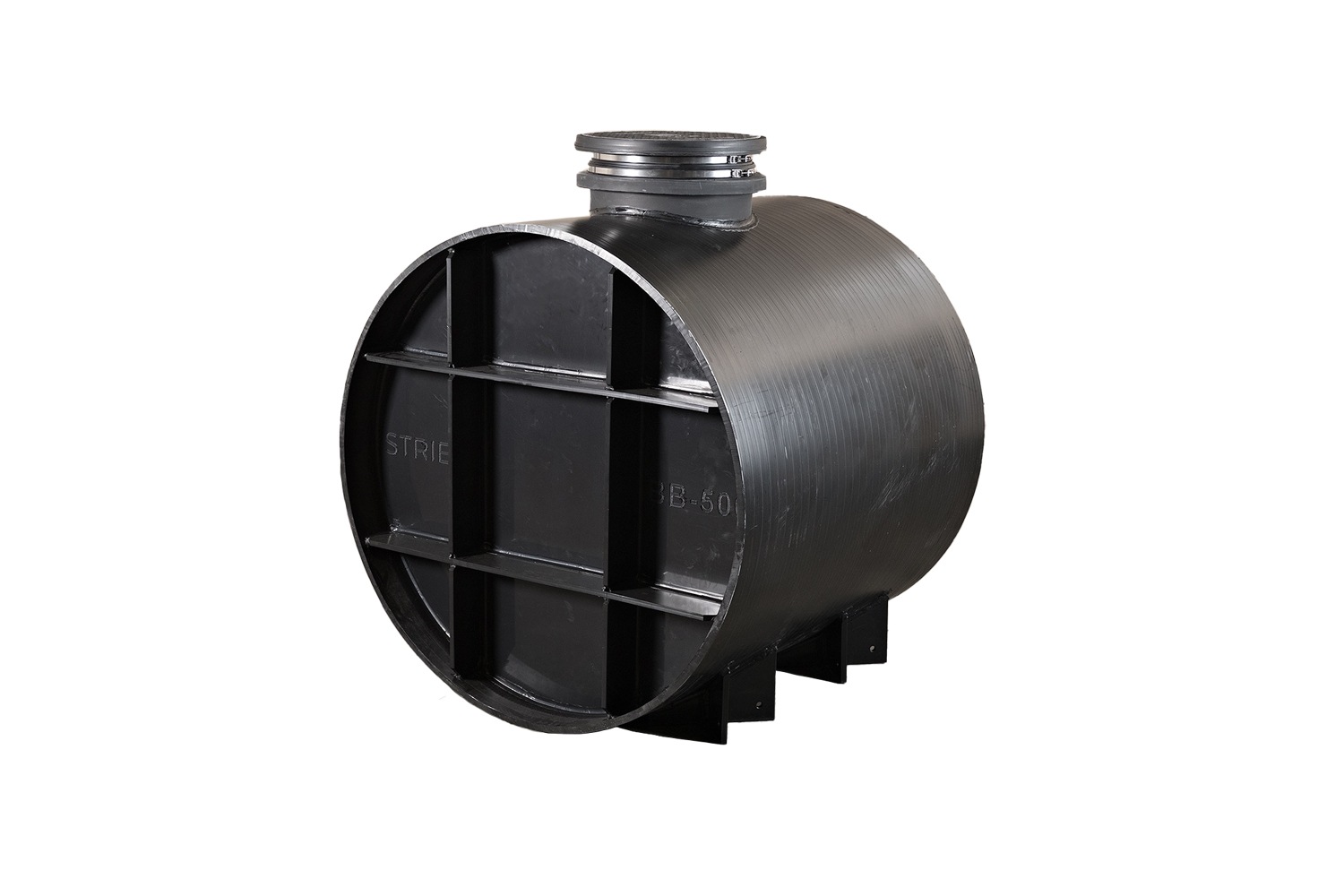

500 Gallon Sand Interceptor, Solid Cover

$17,900 list

Ships in: 7 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Weight

    800 lbs.

CAPACITIES

  • Liquid

    500 gal. / 66 cu. ft.

  • Solids

    400 gal.

DIMENSIONS

  • L x W x H

    60" x 61-3/4" x 71"

STANDARD CONNECTIONS

  • Inlet & Outlet

    6" plain end

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    1" thick polyethylene

  • Cover

    Traffic-rated bolted composite

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

  • 8" plain end (-8P)

COVER

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24

  • Up to 39":

    LR-24

  • Up to 43":

    SR-24 (x2)

  • Up to 58":

    SR-24 + LR-24

  • Up to 72":

    LR-24 (x2)

  • Up to 90":

    SR-24 + LR-24 (x2)

  • Up to 106":

    LR-24 (x3)

  • -OR-

  • 11" - 106":

    CPRK *corrugated pipe by others

HIGH WATER ANCHOR KIT
