FLI-125

FWT-35

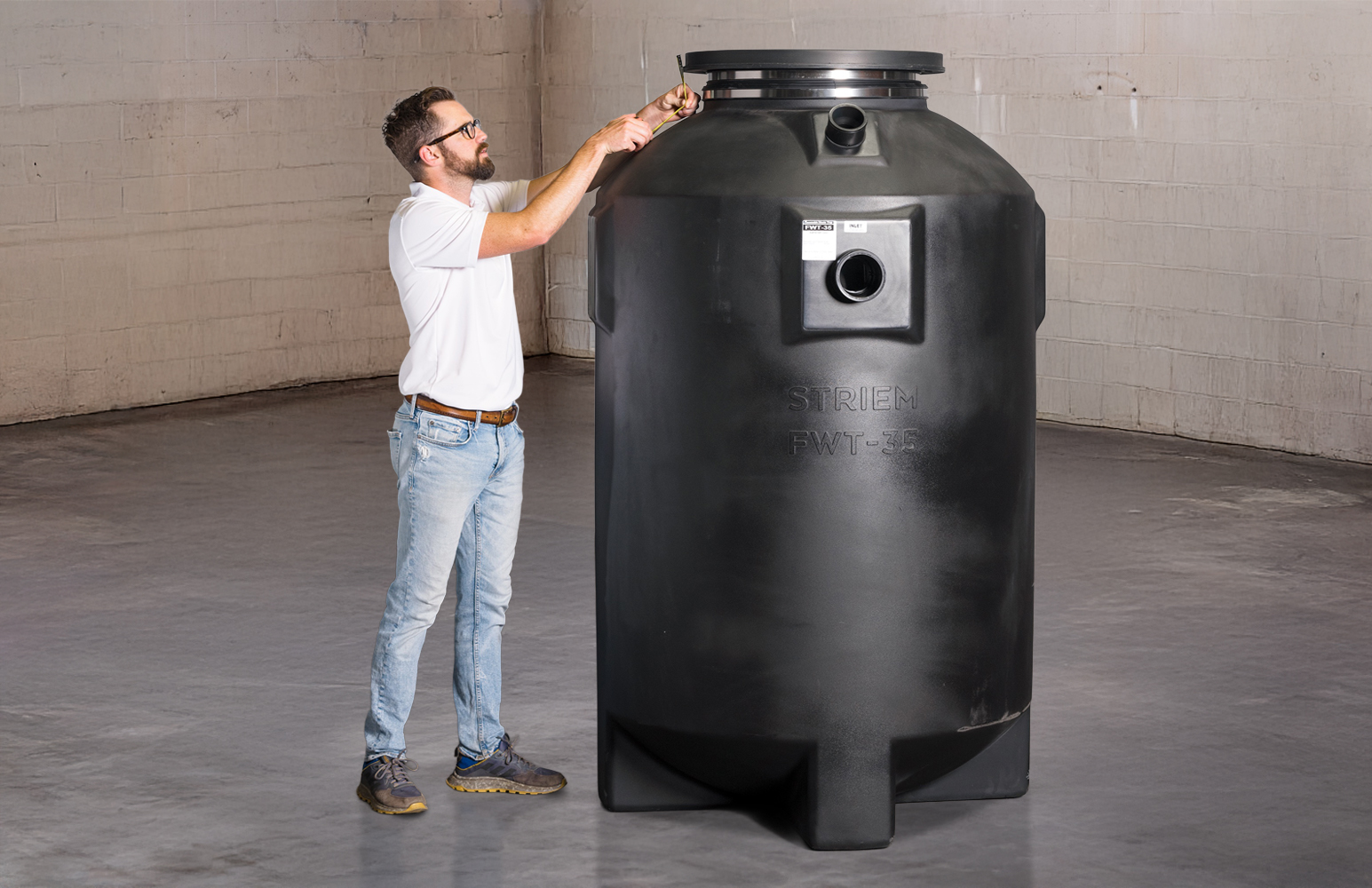

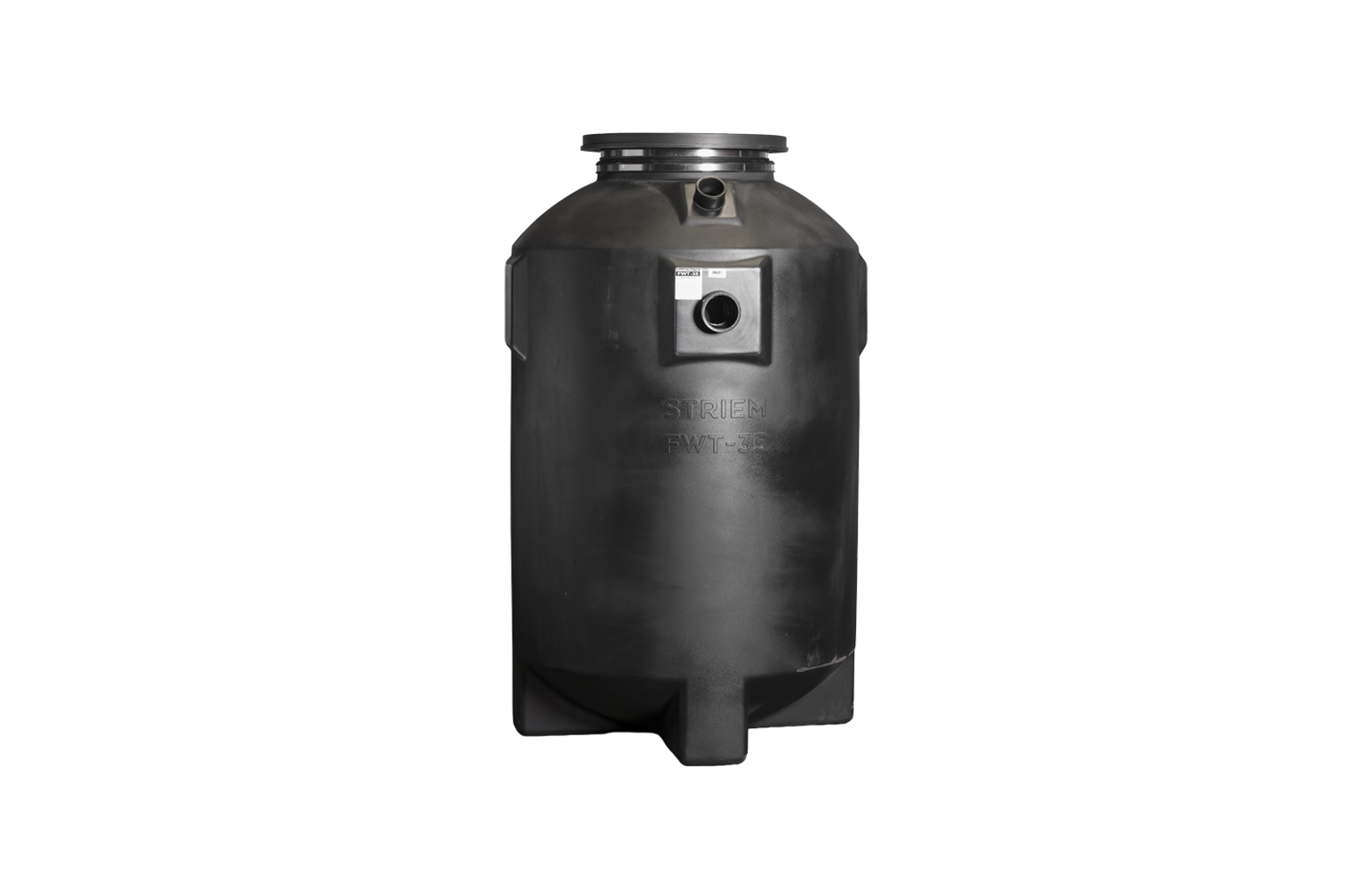

35 Cubic Foot Flammable Waste Trap

$6,000 list

Ships in: 3 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install
PDF
With Slick Stick™
PDF DWG

Product Details

  • Weight

    175 lbs.

CAPACITIES

  • Total

    262 gal. / 35 cu. ft.

  • Solids

    163 gal. / 26.2 cu. ft.

  • Flammable Waste

    89 gal. / 14.2 cu. ft.

DIMENSIONS

  • L x W x H

    43" x 43" x 72-1/2"

STANDARD CONNECTIONS

  • Inlet & Outlet

    4” plain end

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Cover

    Traffic-rated bolted composite

Options & Accessories

CONNECTIONS

  • Inlet/Outlet

    4” plain end (-4P)

  • 6” plain end (-6P)

COVERS

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Minimum Burial Depth:

    12"

  • Up to 24":

    SR-24

  • Up to 39":

    LR-24

  • Up to 43":

    SR-24 (x2)

  • Up to 58":

    SR-24 + LR-24

  • Up to 72":

    LR-24 (x2)

  • Up to 90":

    SR-24 + LR-24 (x2)

  • -OR-

  • 12" - 90":

    CPRK *corrugated pipe by others

OIL LEVEL MONITORING SYSTEM

  • Slick Stick™

    $5,700 list

HIGH WATER ANCHOR KIT
