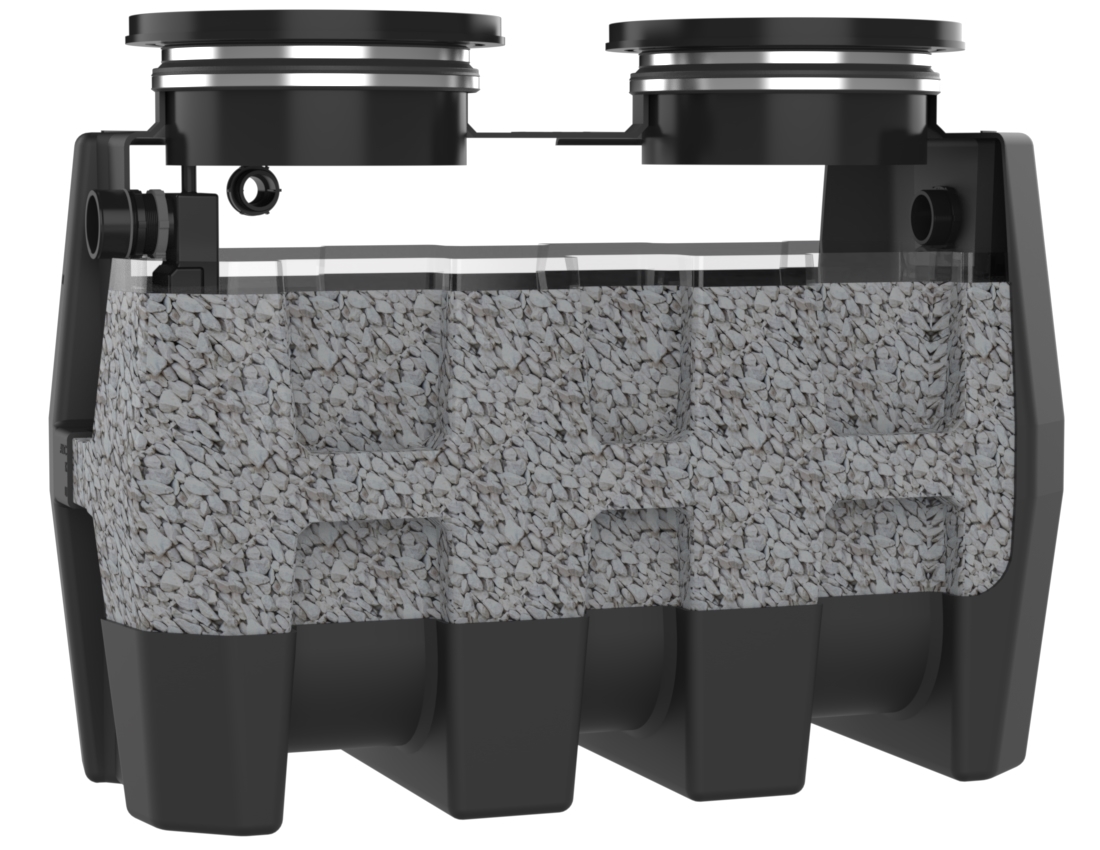

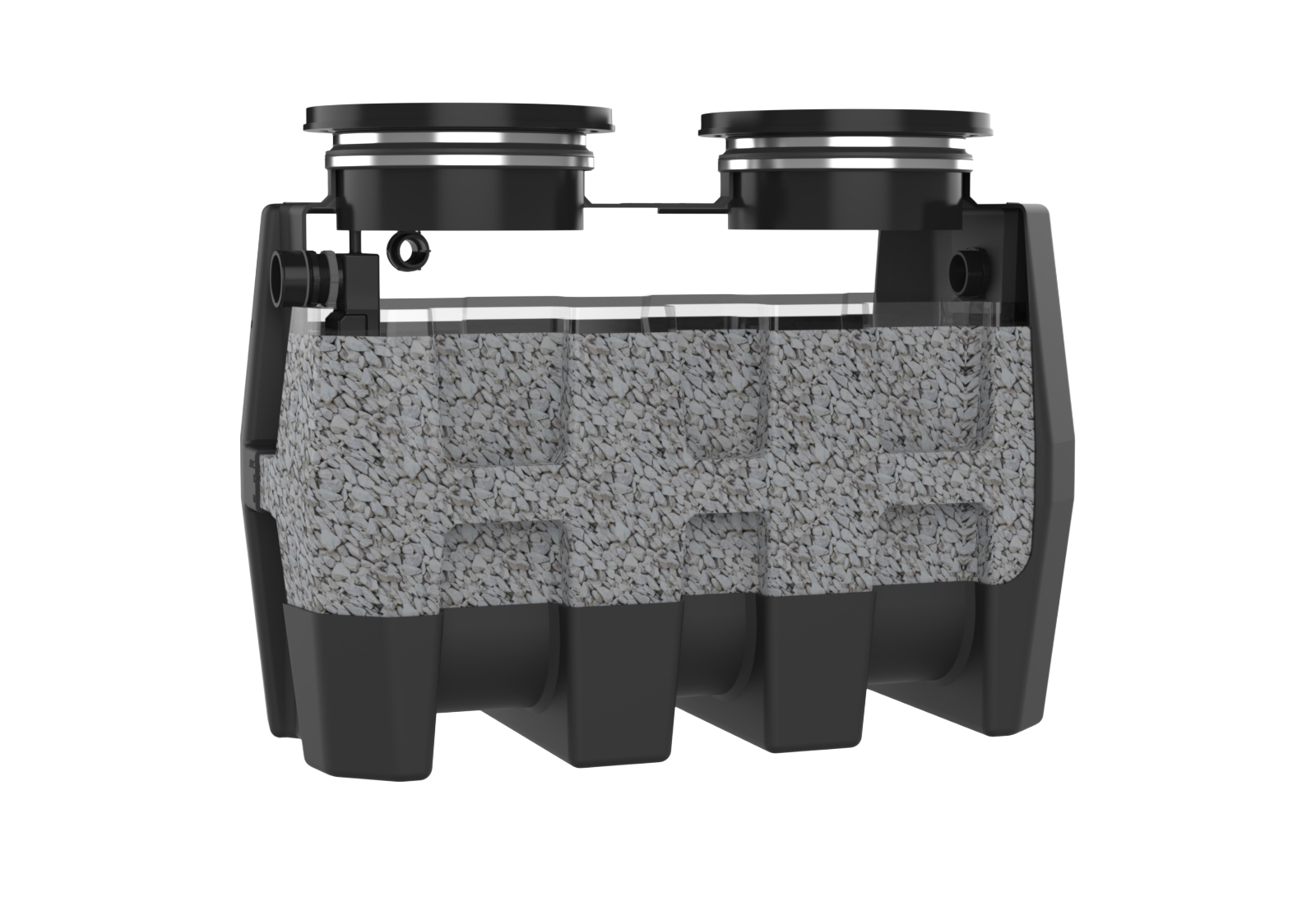

LB-275

• Weight

  225 lbs.

• Number of Lab Sinks

  75

CAPACITIES

• Liquid

  250 gal.

DIMENSIONS

• L x W x H

  68" x 33" x 51-1/2"

STANDARD CONNECTIONS

• Inlet & Outlet

  4" plain end

• Vents

  2" plain end

MATERIAL OF CONSTRUCTION

• Tank

  Rotationally-molded polyethylene

• Covers

  Traffic-rated bolted composite

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

RISERS

• SR-24

  $720 list each

• LR-24

  $860 list each

• -OR-

• CPRK

  $740 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 5":

  Included with cover adapter

• Up to 24":

  SR-24 (x2)

• Up to 39":

  LR-24 (x2)

• Up to 43":

  SR-24 (x4)

• Up to 58":

  SR-24 (x2) + LR-24 (x2)

• Up to 72":

  LR-24 (x4)

• Up to 90":

  SR-24 (x2) + LR-24 (x4)

• -OR-

• 11" - 90":

  CPRK *corrugated pipe by others

Limestone

• LS-50: 50 lbs. bag

  $100 list

• *LB-275 requires (63) LS-50, equal to 3,150 lbs. of limestone

High Water HOLD DOWN Kit

• HDK-2

  $1,500 list

PH MONITORING SYSTEM

• CC-1: Command Center™

  $19,500 list

• SPK: Sensor placement kit*

  $2,000 list

• *Required with CC-1
