OCT-125

110 Gallon Oil Collection Tank

$4,100 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Weight

    120 lbs.

CAPACITIES

  • Liquid Capacity

    110 gal. / 14.7 cu ft.

DIMENSIONS

  • L x W x H

    46" x 32" x 38-1/2" (w/o monitoring)

  • 46" x 32" x 41-1/2" (w/ monitoring)

CONNECTIONS

  • Inlet

    2" plain end

  • No outlet

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Cover

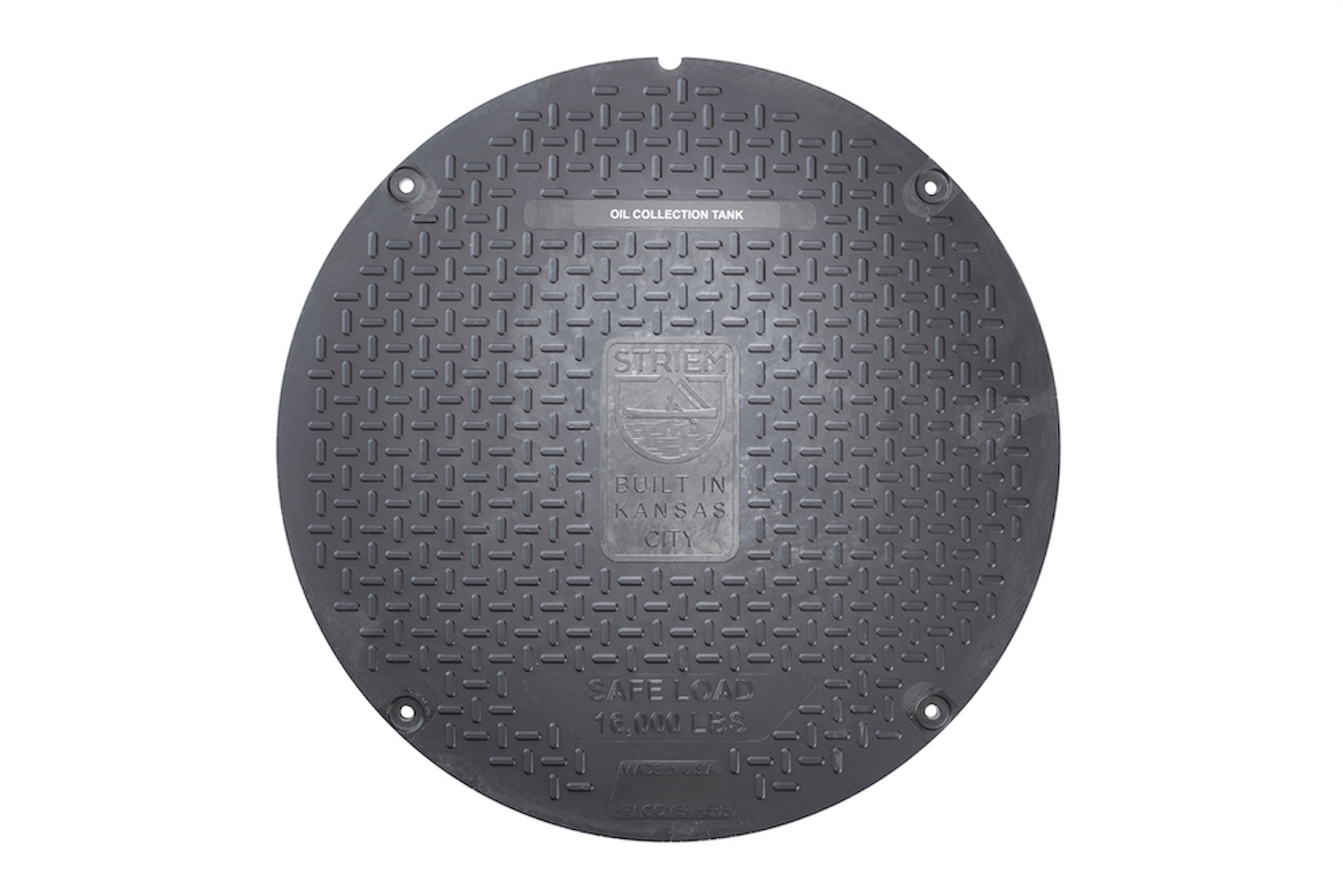

    Traffic-rated bolted composite

CONNECTIONS

  • Inlet

    2" plain end (-2P)

  • 3" plain end (-3P)

  • 4" plain end (-4P)

COVER

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter. (0"-2" w/ monitoring)

  • Up to 24":

    SR-24 (21" w/ monitoring)

  • Up to 39":

    LR-24 (36" w/ monitoring)

  • Up to 43":

    SR-24 (x2) (40" w/ monitoring)

  • Up to 58":

    SR-24 + LR-24 (55" w/ monitoring)

  • Up to 72":

    LR-24 (x2) (69" w/ monitoring)

  • -OR-

  • 11" - 72":

    CPRK. (11-69" w/ monitoring) *corrugated pipe by others

HIGH WATER HOLD DOWN KIT

LIQUID LEVEL MONITORING
