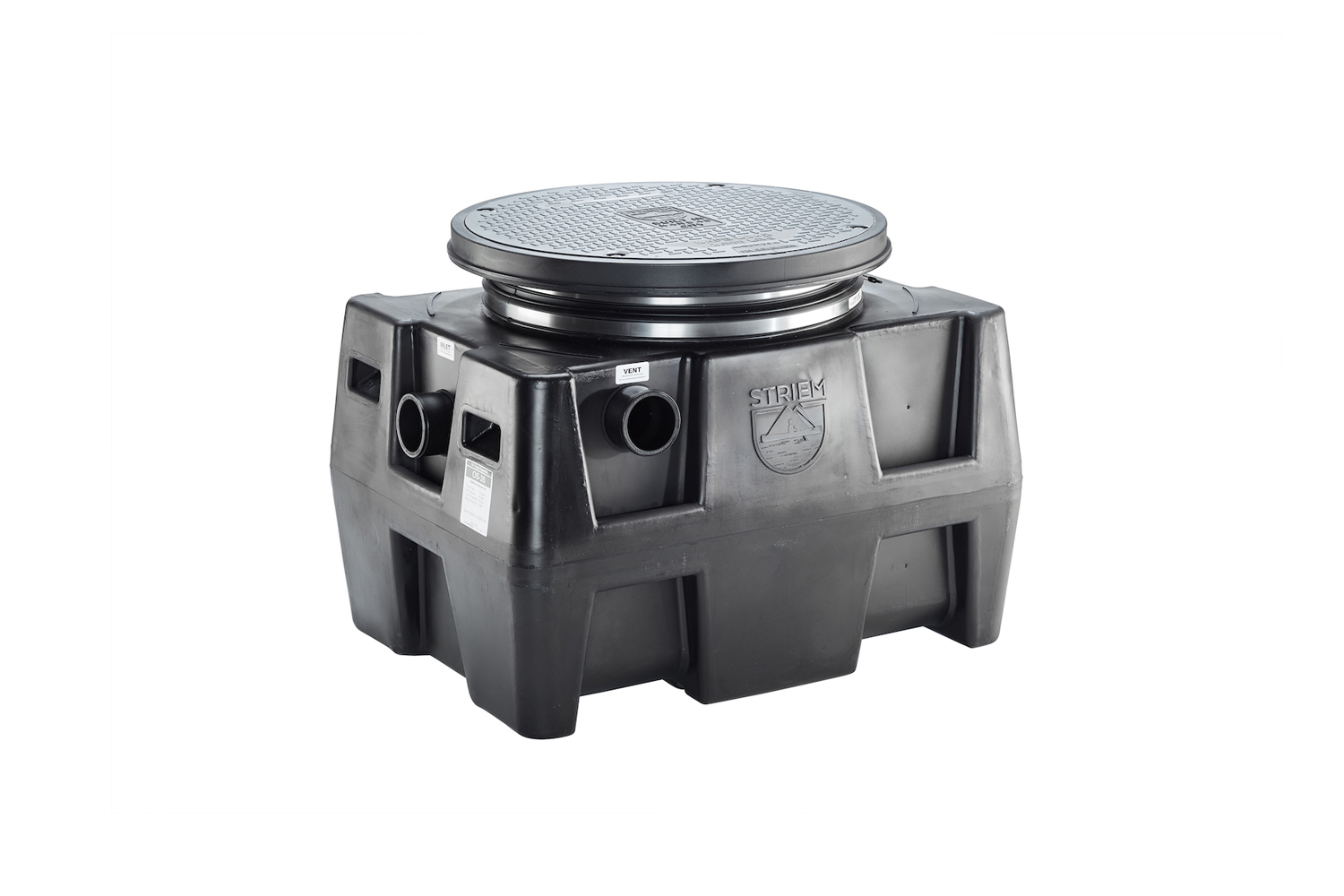

OCT-50

• Weight

  93 lbs.

CAPACITIES

• Oil

  57 gal. / 7.6 cu ft.

DIMENSIONS

• L x W x H

  37" x 28" x 28-1/2"

• (w/o monitoring)

• 37" x 28" x 31-1/2"

• (w/ monitoring)

CONNECTIONS

• Inlet

  2" plain end

• No outlet

• Vents

  3" plain end

MATERIAL OF CONSTRUCTION

• Tank

  Rotationally-molded polyethylene

• Cover

  Pedestrian-rated bolted composite

CONNECTIONS

• Inlet

  2" plain end (-2P)

• 3" plain end (-3P)

• 4" plain end (-4P)

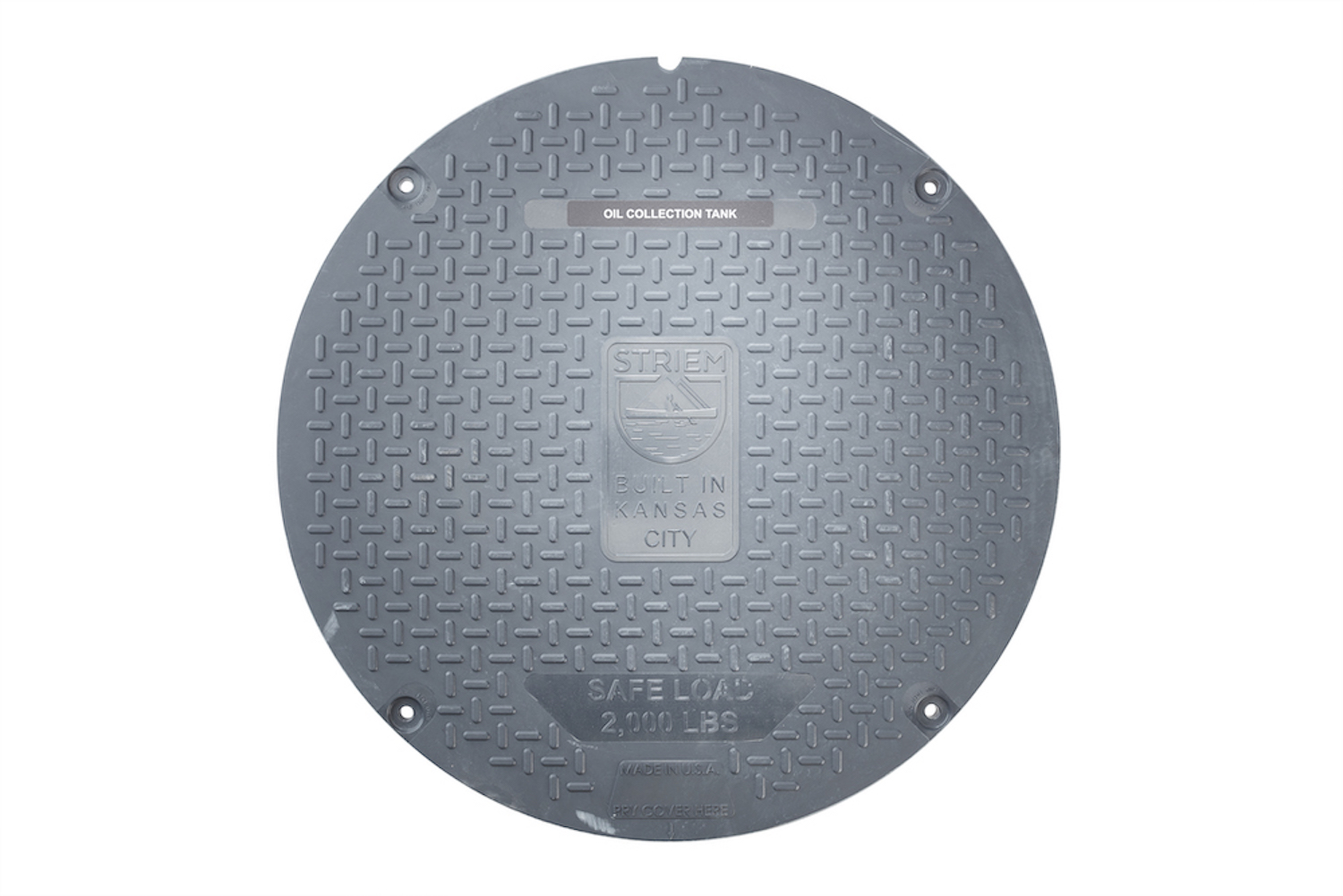

COVER

• C24-H

  Traffic-rated bolted composite

• C24-HP

  H20-rated pickable cast iron

RISERS

• SR-24

  $720 list each

• LR-24

  $860 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 5":

  Included with cover adapter

• Up to 24":

  SR-24 (21" w/ monitoring)

• Up to 39":

  LR-24 (36" w/ monitoring)

HIGH WATER HOLD DOWN KIT

• HDK-2

  $1,500 list

LIQUID LEVEL MONITORING

• AVA-3: Single-Level Monitor

  $3,100 list
