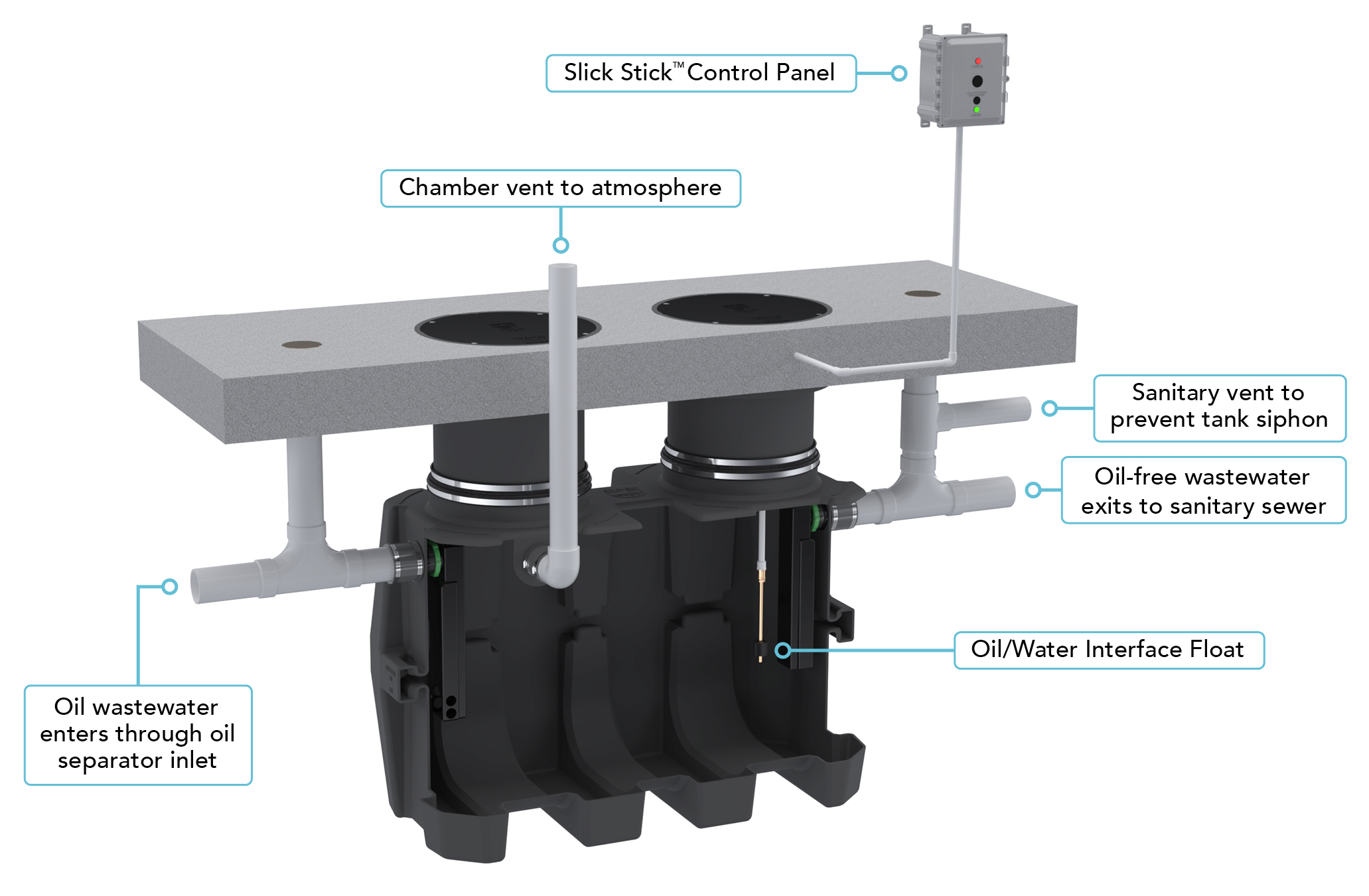

OS-100-SS

• Flow Rate

  75 GPM

• Weight

  225 lbs.

• Tank is fabricated to accept Slick Stick™

CAPACITIES

• Total

  250 gal. / 33.4 cu. ft.

• Oil

  62.5 gal.

• Sand

  95 gal.

DIMENSIONS

• L x W x H

  68" x 33" x 54-1/2"

CONNECTIONS

• Inlet & Outlet

  4” plain end

• Vents

  3” plain end

MATERIAL OF CONSTRUCTION

• Tank

  Rotationally-molded polyethylene

• Covers

  Traffic-rated bolted composite

Slick Stick™

• UL Listed

• NEMA 4X weatherproof enclosure

• 120 volt power required

• Provides audible and visual indicator when oil level is met

• Unit supplied with extra dry contact for BMS hookup

Connections

• Inlet & Outlet

  4” plain end (-4P)

• 6” plain end (-6P)

COVERS

• C24-HP (x2)

  H20-rated pickable cast iron

RISERS

• SR-24

  $720 list each

• LR-24

  $860 list each

• -OR-

• CPRK

  $740 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 2":

  Included with cover adapter

• Up to 21":

  SR-24 (x2)

• Up to 36":

  LR-24 (x2)

• Up to 40":

  SR-24 (x4)

• Up to 55":

  SR-24 (x2) + LR-24 (x2)

• Up to 69":

  LR-24 (x4)

• Up to 87":

  SR-24 (x2) + LR-24 (x4)

• -OR-

• 11" - 87":

  CPRK (x2) *corrugated pipe by others

High Water Hold Down Kit

• HDK-2

  $1,500 list
