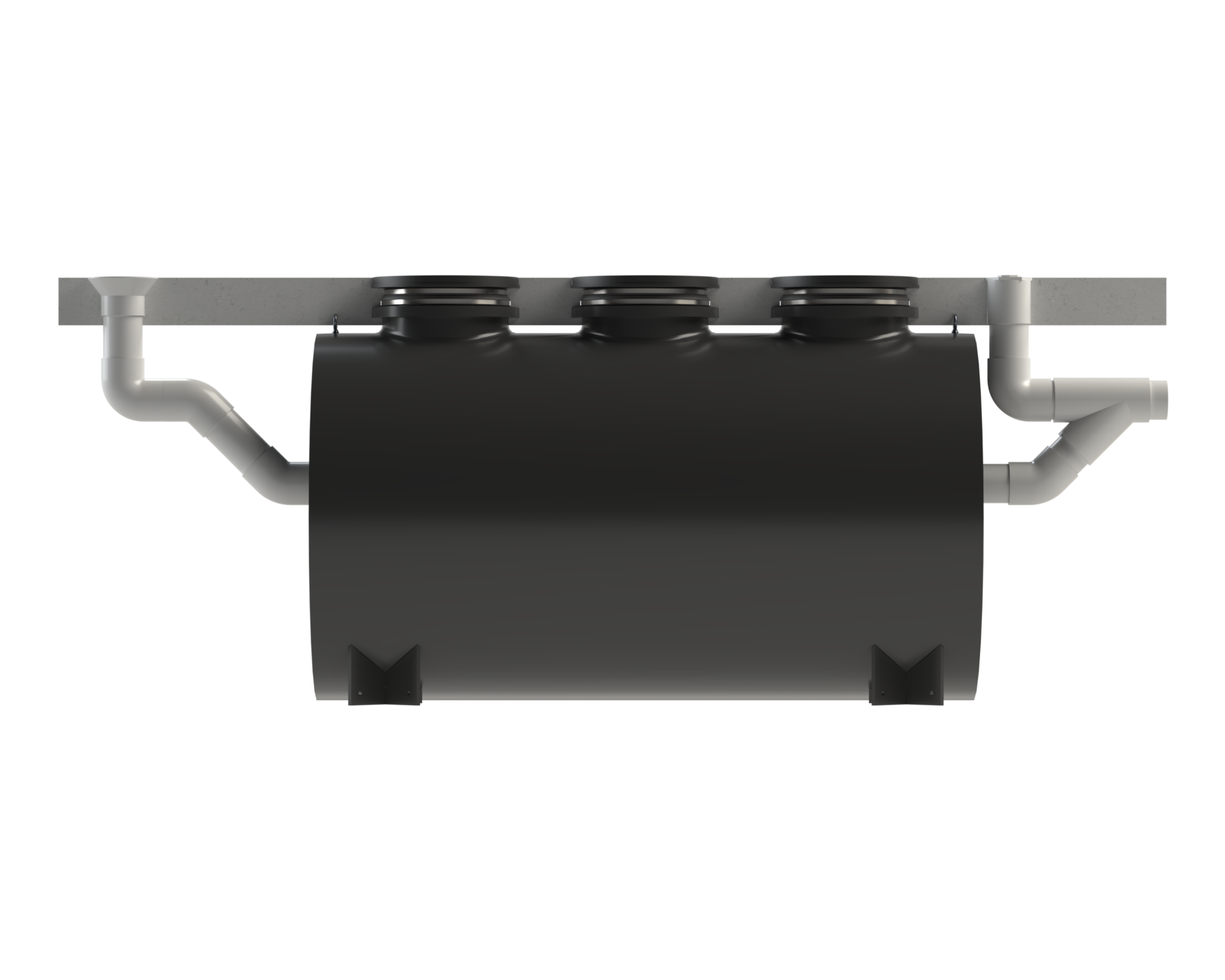

OS-1000-OMAHA

• Flow Rate

  314 GPM

• Weight

  1324 lbs.

Capacities

• Total

  980 gal. / 131 cu. ft.

• Oil

  187 gal.

• Sand

  477 gal.

Dimensions

• L x W x H

  110" x 61-3/4" x 71"

Connections

• Inlet & Outlet

  6” plain end

• Vents

  4” plain end

Material of Construction

• Tank

  Polyethylene

• Covers

  Cast iron

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

RISERS

• SR-24

  $780 list each

• LR-24

  $880 list each

• -OR-

• CPRK

  $780 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 5":

  Included with cover adapter

• Up to 24":

  SR-24 (x3)

• Up to 39":

  LR-24 (x3)

• Up to 43":

  SR-24 (x3)

• Up to 58":

  SR-24 (x3) + LR-24 (x3)

• Up to 72":

  LR-24 (x6)

• Up to 90":

  SR-24 (x3) + LR-24 (x6)

• Up to 106":

  LR-24 (x9)

• -OR-

• 11" - 106":

  CPRK (x3) *corrugated pipe by others

HIGH WATER HOLD DOWN KIT

• HDK-5

  $1,300 list
