OS-500

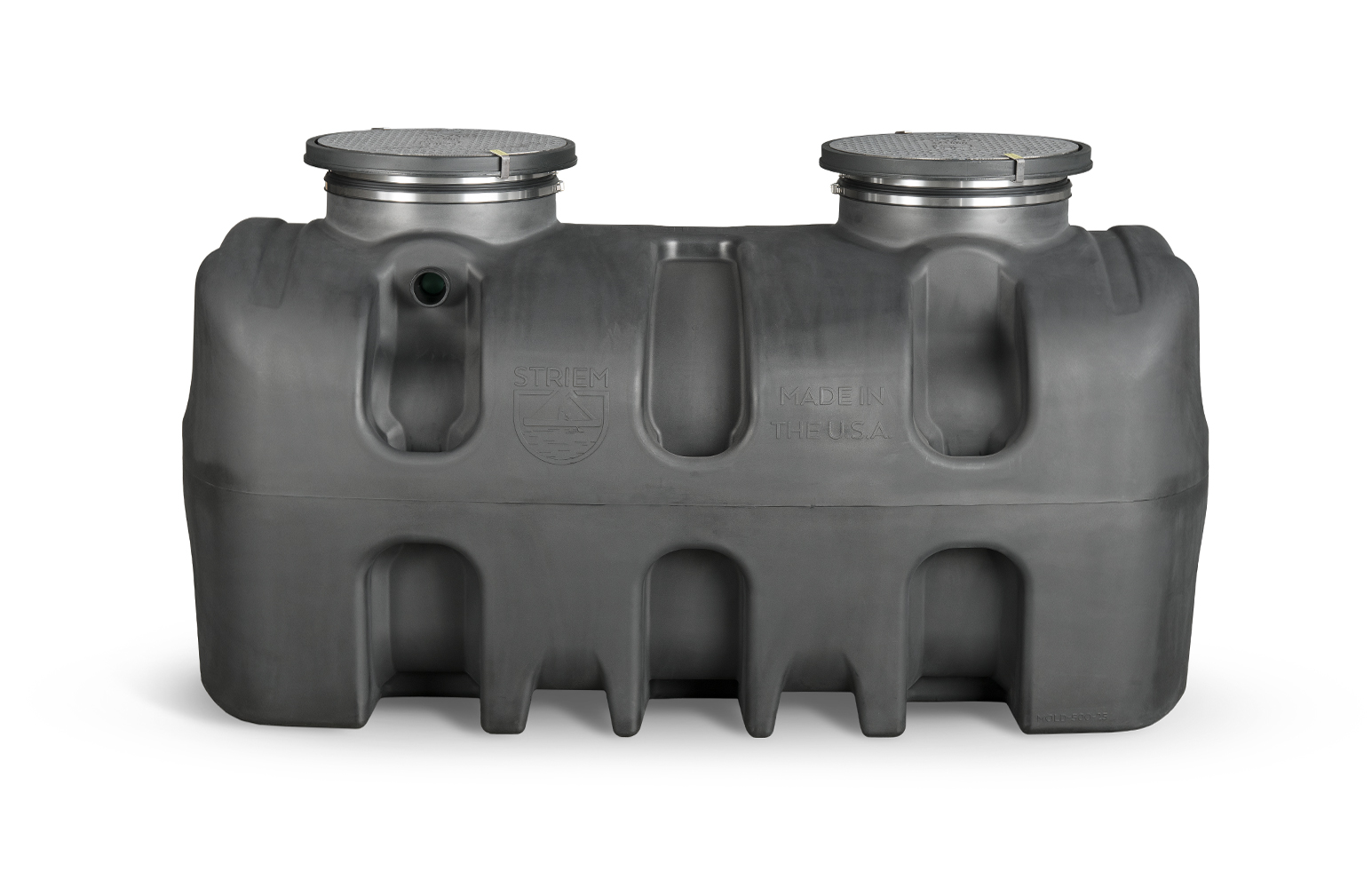

High Efficiency Oil/Water Separator

100 GPM | 99% Efficient

Listed by IAPMO to IGC 325

$13,200 list

Ships in: 3 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    100 GPM

  • Weight

    456 lbs.

Capacities

  • Total

    500 gal. / 66.8 cu. ft.

  • Oil

    125 gal.

  • Sand

    195 gal.

Dimensions

  • L x W x H

    96" x 48" x 51"

Connections

  • Inlet & Outlet

    4” plain end

  • Vents

    3” plain end

Material of Construction

  • Tank

    Polyethylene

  • Covers

    Cast Iron

Options & Accessories

Connections

  • Inlet & Outlet

    6” plain end (-6P)

COVERS

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24 (x2)

  • Up to 39":

    LR-24 (x2)

  • Up to 43":

    SR-24 (x4)

  • Up to 58":

    SR-24 (x2) + LR-24 (x2)

  • Up to 72":

    LR-24 (x4)

  • Up to 90":

    SR-24 (x2) + LR-24 (x4)

  • Up to 106"

    LR-24 (x6)

  • -OR-

  • 11" - 106"

    CPRK (x2) (corrugated pipe by others)

Oil Level Monitoring System

High Water Hold Down Kits
