OT-1000-SS

• Flow Rate

  314 GPM

• Weight

  1,324 lbs.

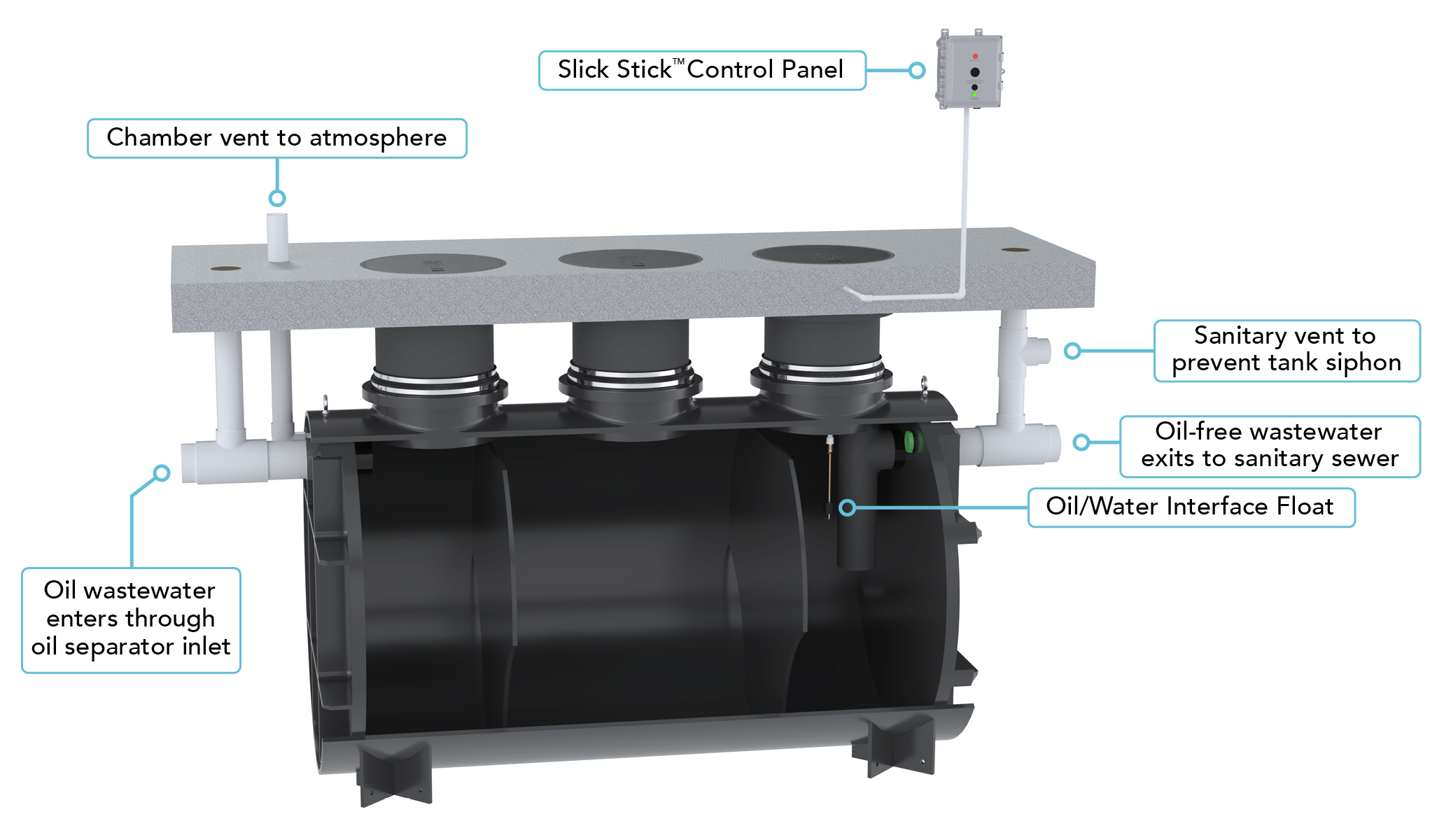

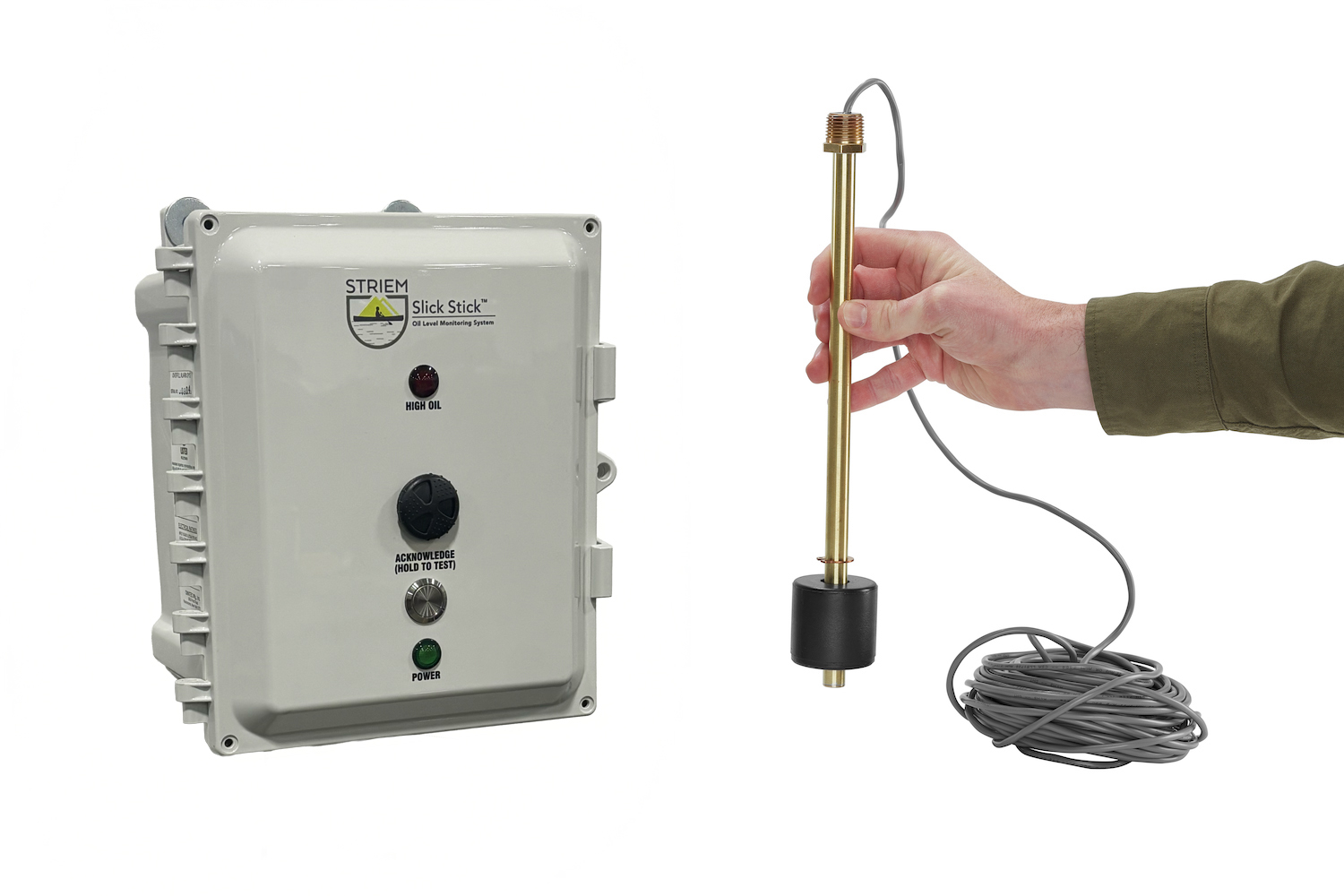

• Tank is fabricated to accept Slick Stick™

CAPACITIES

• Total

  1,000 gal. / 134 cu. ft.

• Oil

  370 gal.

• Sand

  477 gal.

DIMENSIONS

• LxWxH

  110" x 61-3/4" x 74"

CONNECTIONS

• Vents

  3" plain end

MATERIAL OF CONSTRUCTION

• Tank

  1" thick polyethylene

• Covers

  Cast iron

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

• 8" plain end (-8P)

RISERS

• SR-24

  $780 list each

• LR-24

  $880 list each

• -OR-

• CPRK

  $780 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 2":

  Included with cover adapter

• Up to 21":

  SR-24 (x3)

• Up to 36":

  LR-24 (x3)

• Up to 40":

  SR-24 (x6)

• Up to 55":

  SR-24 (x3) + LR-24 (x3)

• Up to 69":

  LR-24 (x6)

• Up to 87":

  SR-24 (x3) + LR-24 (x6)

• Up to 103":

  LR-24 (x9)

• -OR-

• 11" - 103":

  CPRK (x3) *corrugated pipe by others

High Water Hold Down Kit

• HDK-5

  $1,300 list
