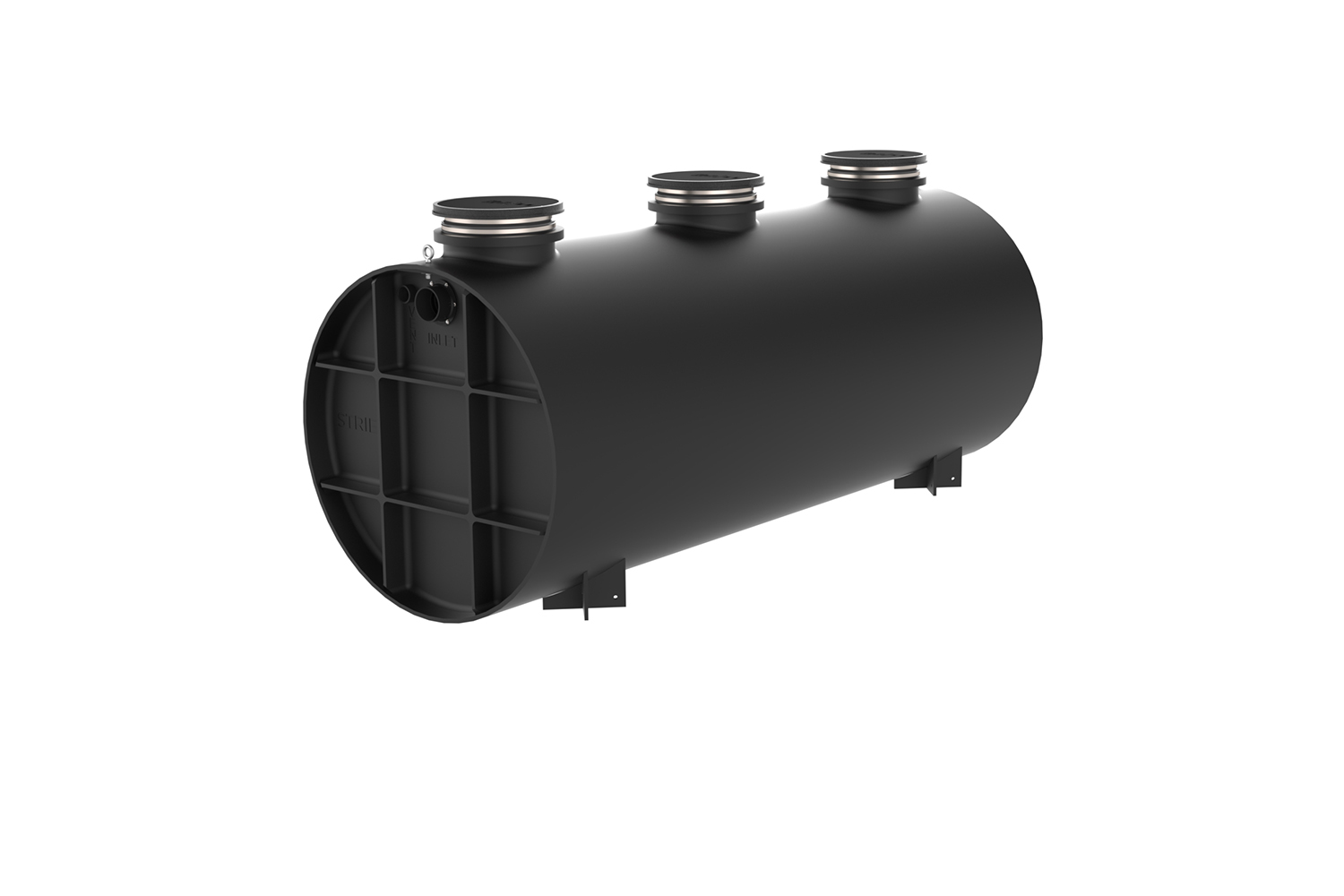

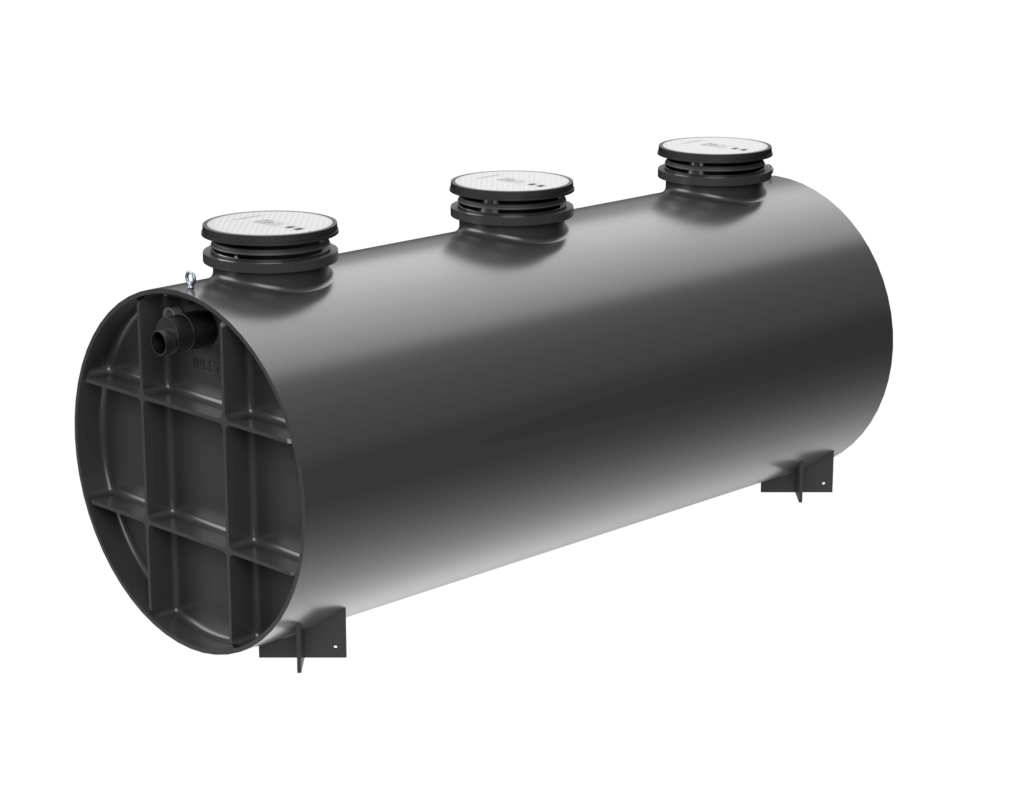

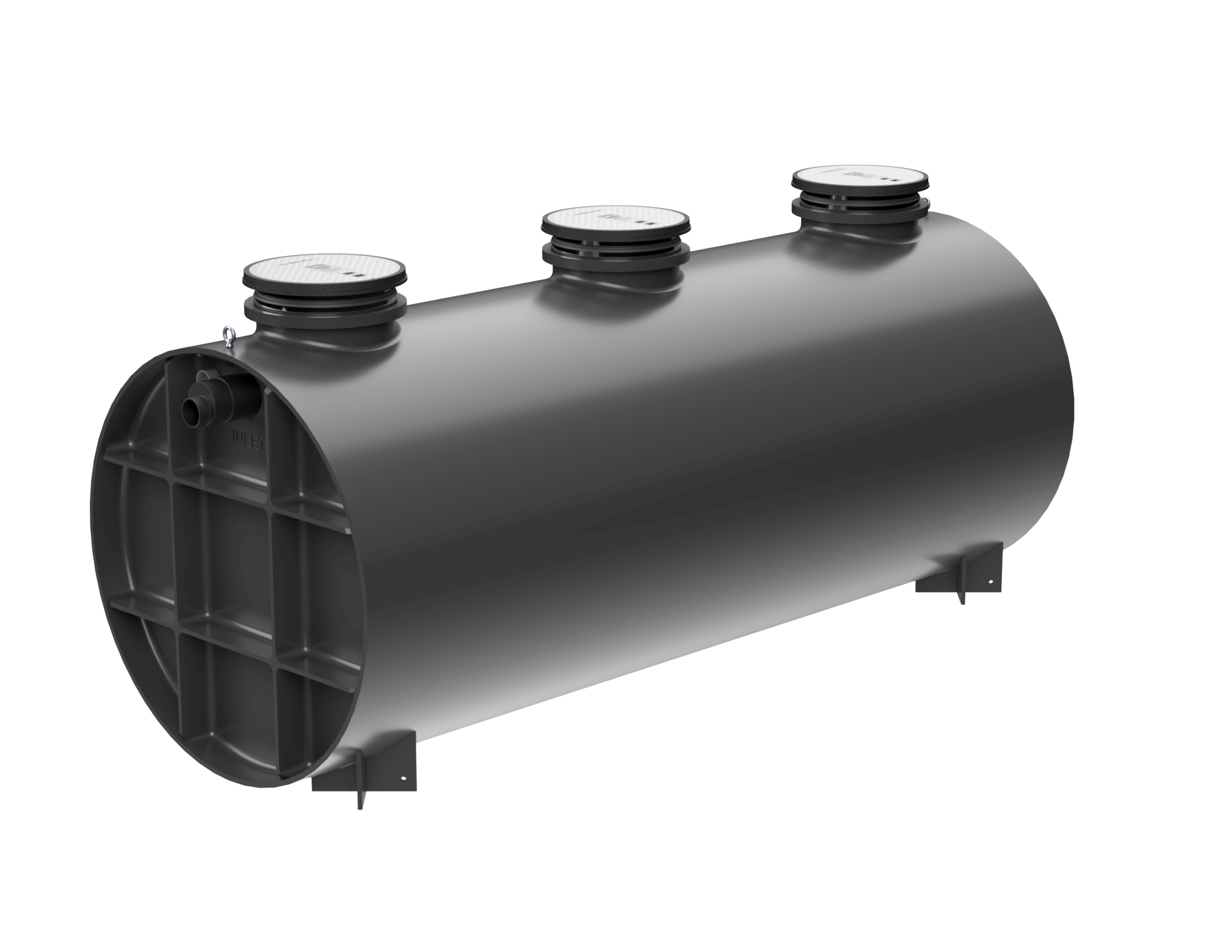

2,000 Gallon Oil Separator

Listed by IAPMO to IGC 183

$41,200 list

Ships in: 7 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    314 GPM

  • Weight

    2,000 lbs.

CAPACITIES

  • Total

    2,000 gal. / 267 cu. ft.

  • Oil

    638 gal.

  • Sand

    1,077 gal.

DIMENSIONS

  • L x W x H

    168" x 67-3/4" x 77"

STANDARD CONNECTIONS

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Polyethylene

  • Covers

    Cast Iron

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

  • 8" plain end (-8P)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24 (x3)

  • Up to 39":

    LR-24 (x3)

  • Up to 43":

    SR-24 (x6)

  • Up to 58":

    SR-24 (x3) + LR-24 (x3)

  • Up to 72":

    LR-24 (x6)

  • Up to 90":

    SR-24 (x3) + LR-24 (x6)

  • Up to 106":

    LR-24 (x9)

  • -OR-

  • 11" - 106":

    CPRK (x3) (corrugated pipe by others)

Oil Level Monitoring System

High Water Hold Down Kit
