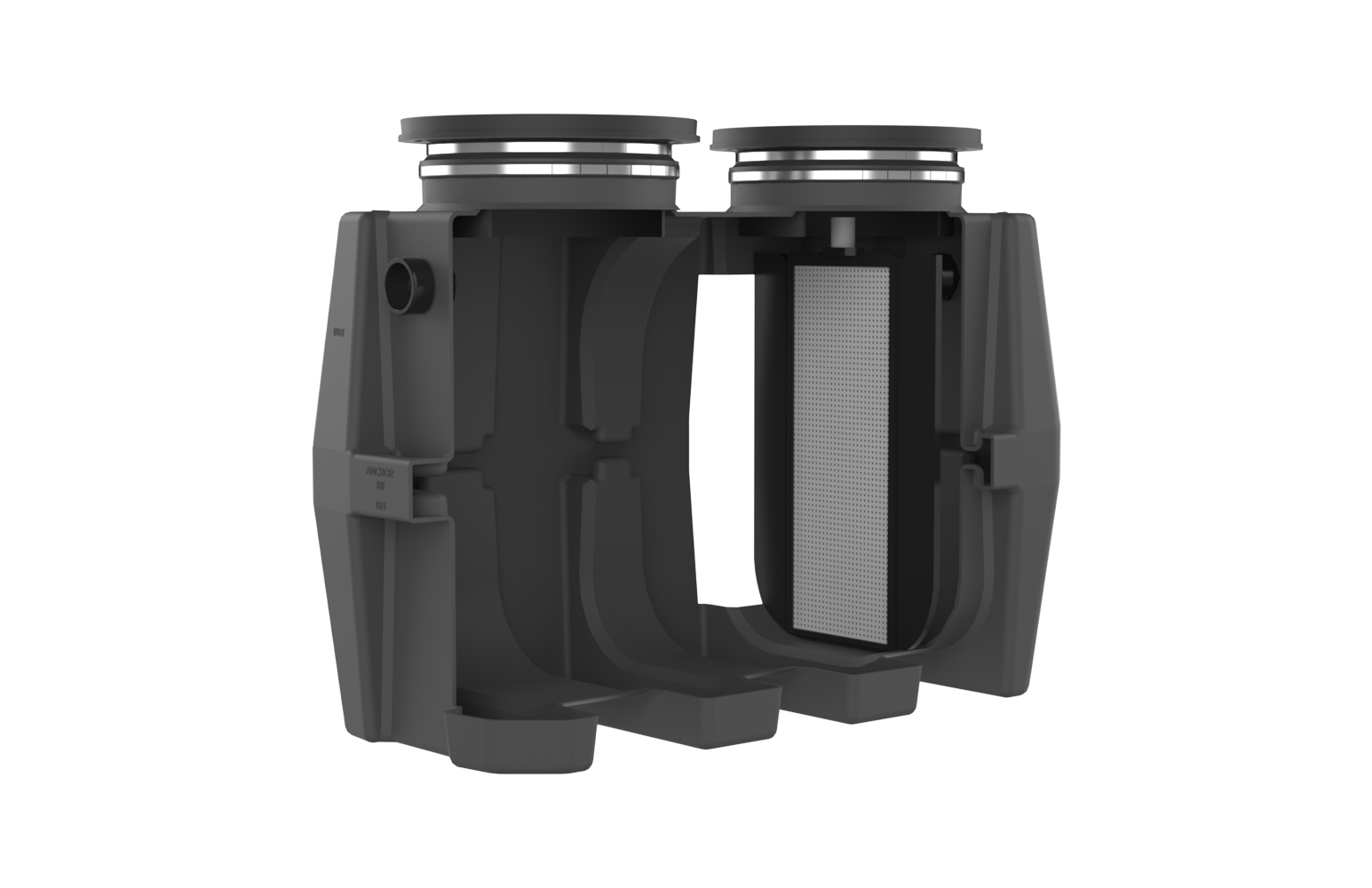

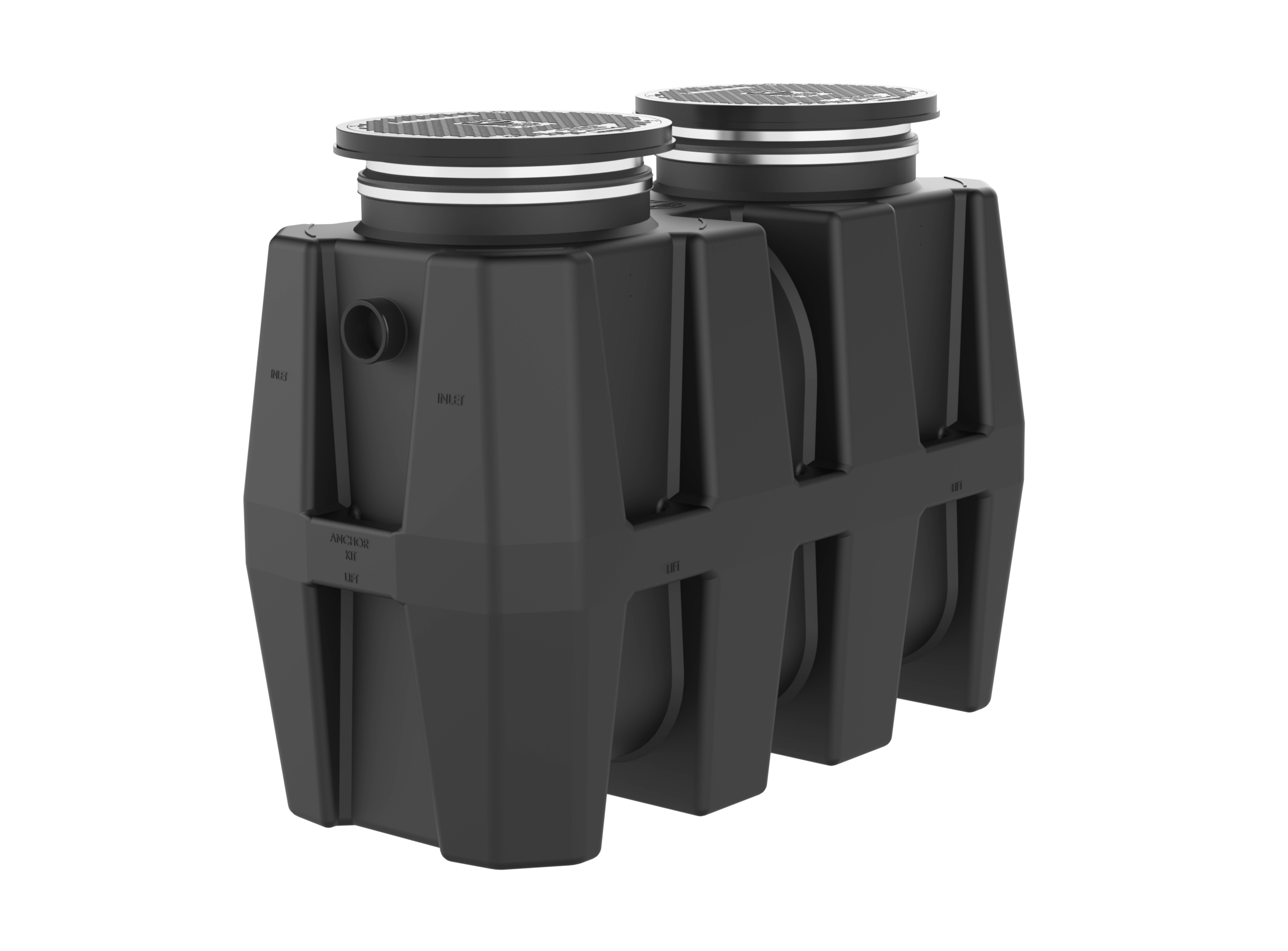

PS-275-S

250 Gallon Screen-Style Solids Interceptor

$7,900 list

Ships in: 3 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Flow Rate

    100 GPM

  • Weight

    260 lbs.

CAPACITIES

  • Liquid

    250 gal.

  • Solids

    210 gal.

DIMENSIONS

  • L x W x H

    68" x 33" x 51-1/2"

STANDARD CONNECTIONS

  • Inlet & Outlet

    4" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Screen

    Polyethylene and perforated polypropylene

  • Cover

    Traffic-rated bolted composite

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

COVERS

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24 (x2)

  • Up to 39":

    LR-24 (x2)

  • Up to 43":

    SR-24 (x4)

  • Up to 58":

    SR-24 (x2) + LR-24 (x2)

  • Up to 72":

    LR-24 (x4)

  • Up to 90":

    SR-24 (x2) + LR-24 (x4)

HIGH WATER HOLD DOWN KIT
