CB-2000-S

SI-UPC-1016

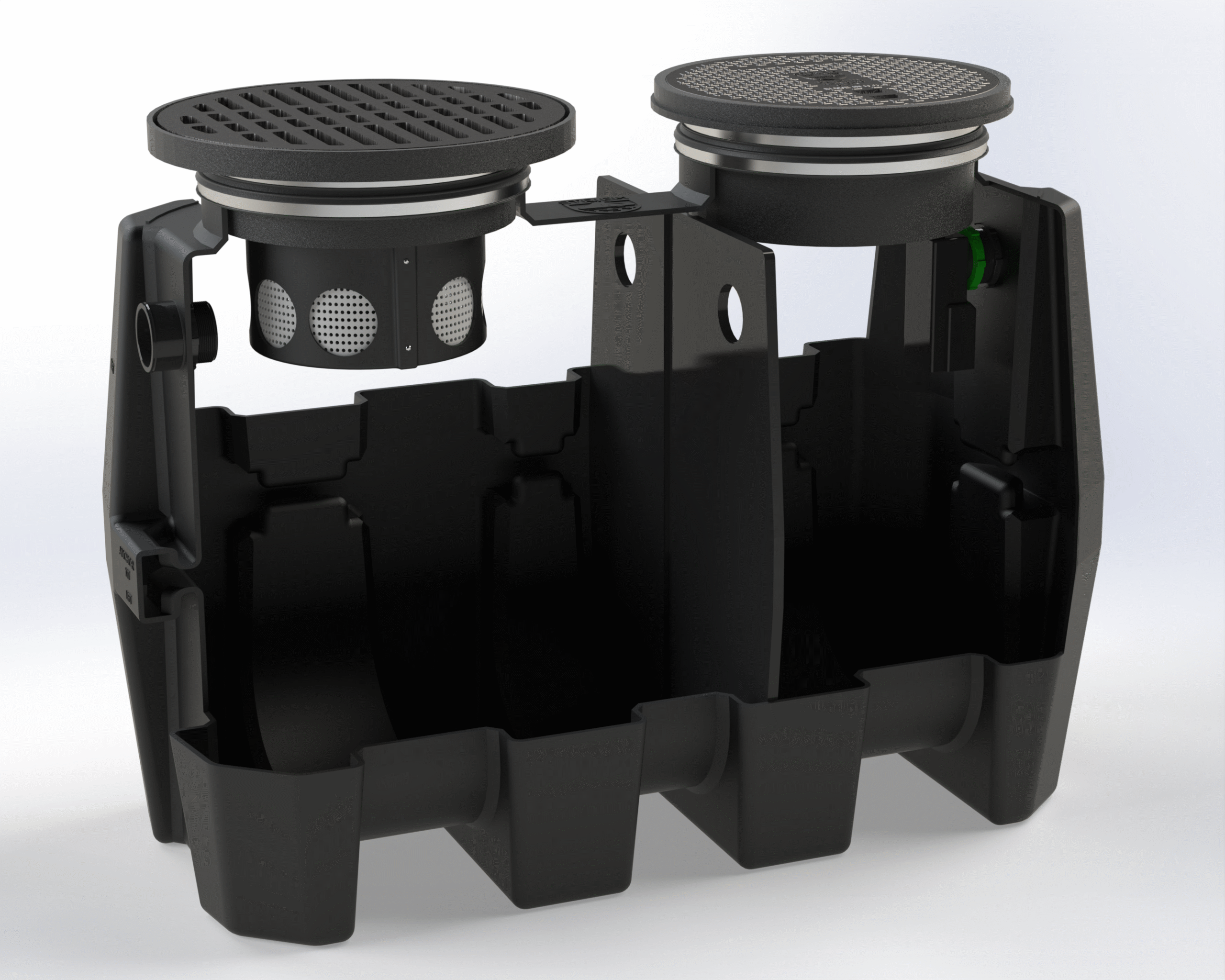

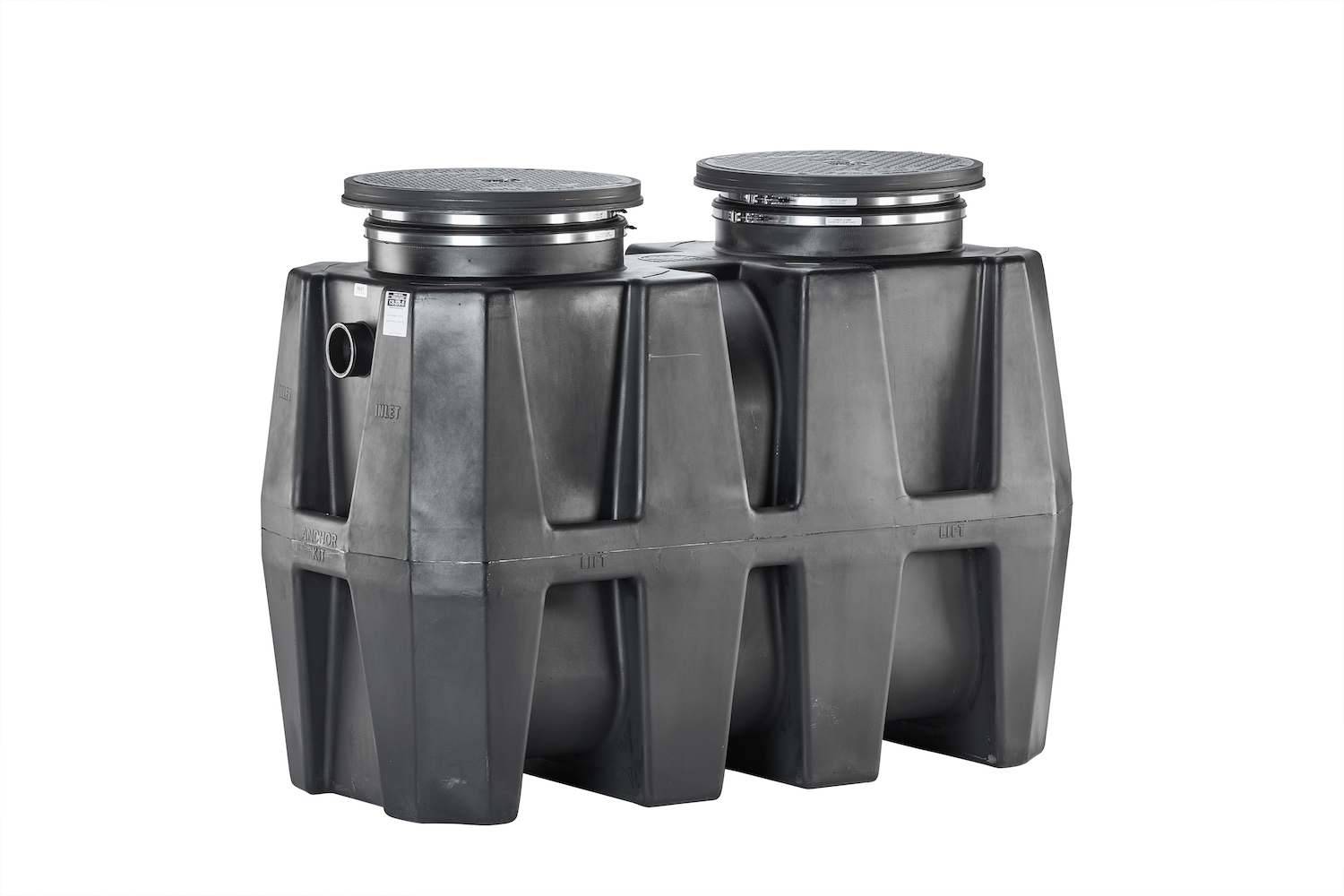

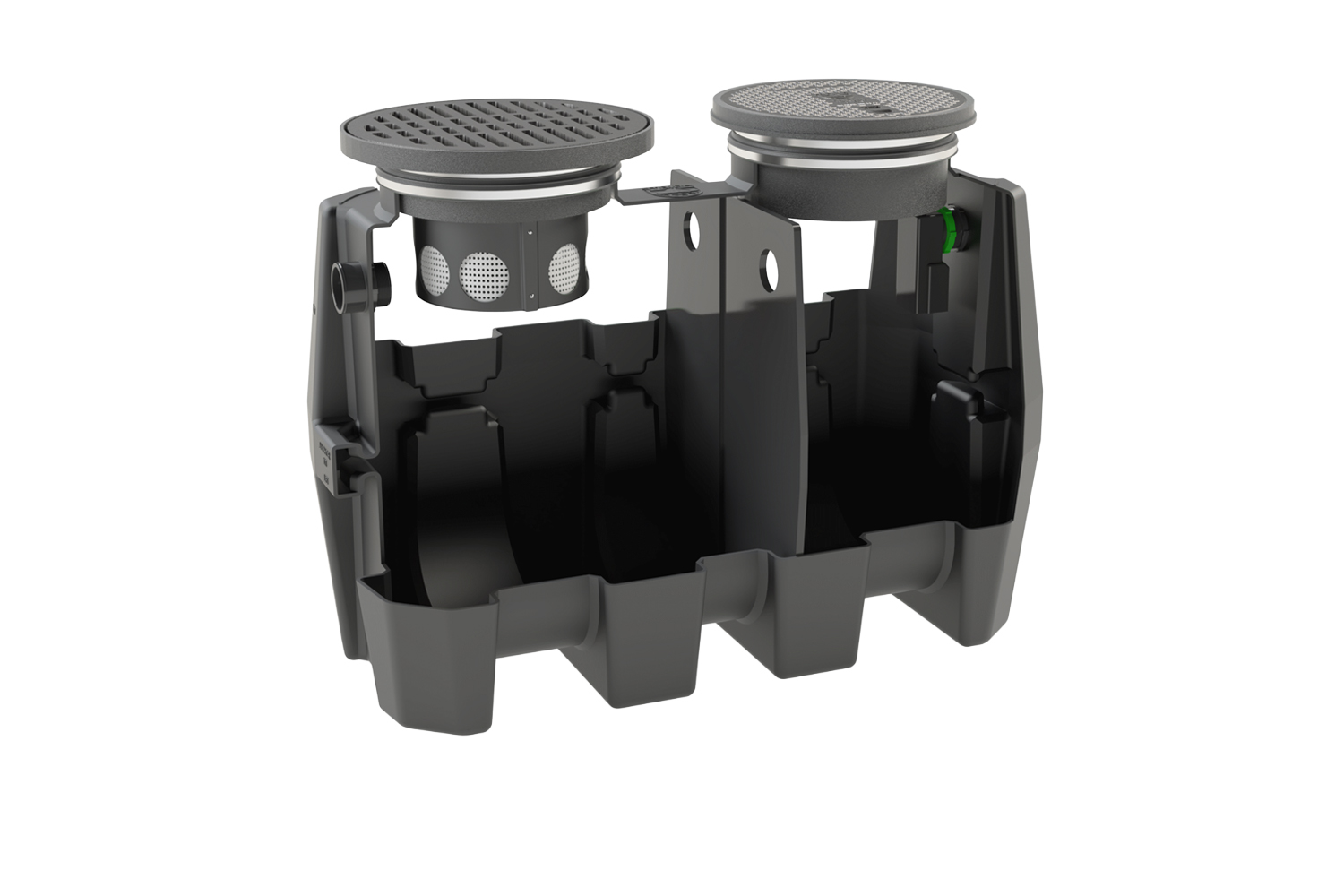

250 Gallon Sand Interceptor, Per UPC Section 1016.0

$8,400 list

Ships in: 3 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    43 GPM per 1016.3 of UPC.

  • Weight

    417 lbs.

CAPACITIES

  • Liquid

    250 gal. (33.4 cu ft).

  • Basket

    7 gal.

DIMENSIONS

  • L x W x H

    68" x 33" x 51-1/4"

CONNECTIONS

  • Inlet & Outlet

    4" plain end

  • Vents

    3" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    Rotationally-molded polyethylene

  • Inlet Cover

    H20-rated cast iron grate

  • Outlet Cover

    H20-rated pickable cast iron

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    3" plain end (-3P)

  • 4" plain end (-4P)

  • 6" plain end (-6P)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • Up to 21":

    SR-24 (x2)

  • Up to 36":

    LR-24 (x2)

  • Up to 40":

    SR-24 (x4)

  • Up to 55":

    SR-24 (x2) + LR-24 (x2)

  • Up to 69":

    LR-24 (x4)

  • Up to 87":

    SR-24 (x2) + LR-24 (x4)

HIGH WATER HOLD DOWN KIT
