SPK

• Weight

  51 lbs.

• Max operating temperature

  140° F

CONNECTIONS

• Inlet & Outlet

  4" plain end

MATERIAL OF CONSTRUCTION

• Body

  Rotationally-molded polyethylene

• Cover

  Traffic-rated bolted composite

Notes

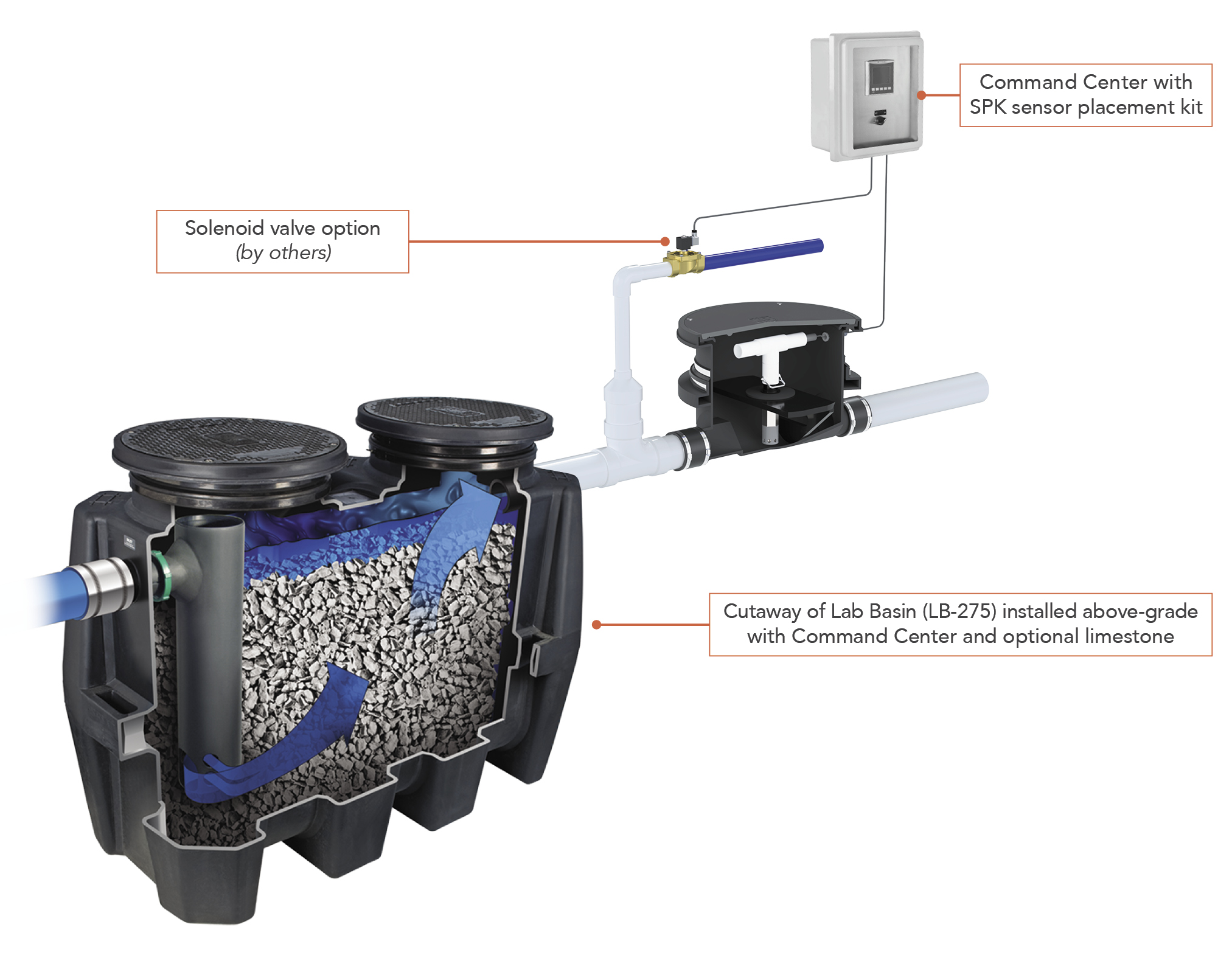

• For above- and below-grade placement of pH sensor. (See CC-1)

• For gravity drainage applications only.

• Do not use for pressure applications.

• Handle may be extended using 1-1/2" PVC pipe (by others).

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

RISERS

• SR-24

  $720 list each

• LR-24

  $860 list each

• -OR-

• CPRK

  $740 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 2":

  Included with cover adapter

• Up to 21":

  SR-24

• Up to 36":

  LR-24

• Up to 40":

  SR-24 (x2)

• Up to 55":

  SR-24 + LR-24

• Up to 69":

  LR-24 (x2)

• Up to 87":

  SR24 + LR24 (x2)

• Up to 103":

  LR-24 (x3)

• -OR-

• 11" - 103":

  CPRK (x3) *corrugated pipe by others
