BB-1000 | $20,600 list

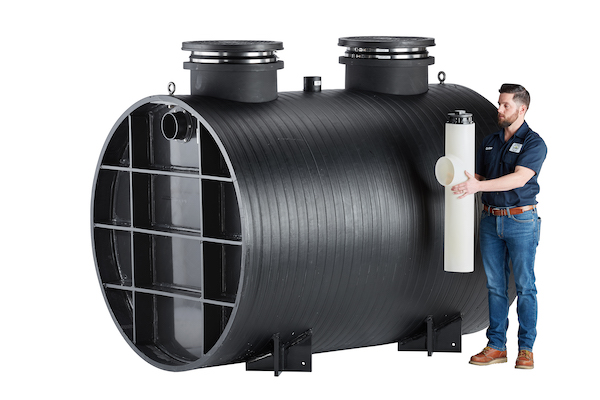

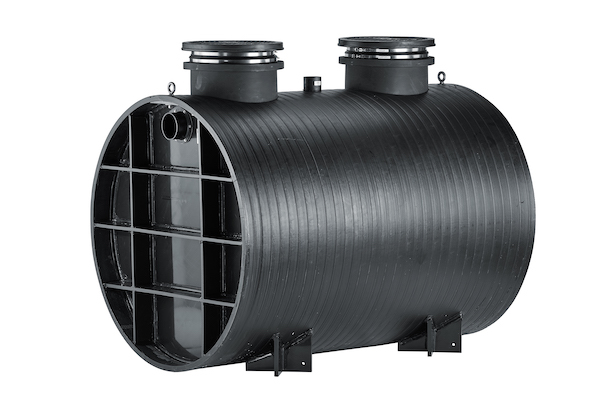

1000 Gallon Decontamination Tank

Downloads

Specifications

PDF DWG

Revit

RFA

Install & Maint.

PDF

Weight

1,184 lbs.

CAPACITIES

Liquid

1,000 gal. / 133 cu. ft.

DIMENSIONS

L x W x H

110" x 62" x 71"

STANDARD CONNECTIONS

Vent

3" plain end

MATERIAL OF CONSTRUCTION

Tank

1" thick polyethylene

Covers

Traffic-rated bolted composite

CONNECTIONS

Inlet & Outlet

3" plain end (-3P)

3" female thread (-3F)

4" plain end (-4P)

4" female thread (-4F)

6" plain end (-6P)

Optional Outlet available

RISERS

Up to 5": Included with cover adapter

N/A

Up to 24": SR-24 (x3)

$1,920 list

Up to 39": LR-24 (x3)

$2,280 list

Up to 43": SR-24 (x6)

$3,840 list

Up to 58": SR-24 (x3) + LR-24 (x3)

$4,200 list

Up to 72": LR-24 (x6)

$4,560 list

Up to 90": SR-24 (x3) + LR-24 (x6)

$6,480 list

Up to 106": LR-24 (x9)

$6,840 list

-or-

11" - 106": CPRK (x3)*

$1,770 list

*corrugated pipe by others

HIGH WATER ANCHOR KIT

HDK-5

$1,210 list

LIQUID LEVEL MONITORING

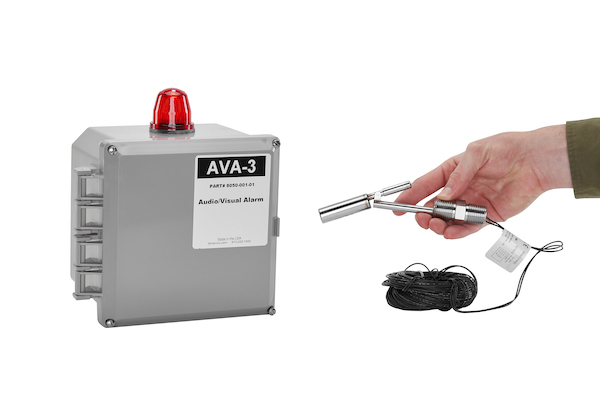

AVA-3: Single-Level Monitor

$2,440 list

AVA-4: Three-Level Monitor

$6,280 list

MBV: Manual Ball Valve

(Spec available upon request)

EAV: Electronically Actuated Valve

(Spec available upon request)

*Monitoring packages will raise covers by 3"
