OS-100-SS | $11,100 list

100 GPM Oil Separator with Slick Stick™

Downloads

Specifications
Revit
RFA
Install & Maint. (OS-100)
PDF
Install & Maint. (Slick Stick™)
PDF
Optional Coalescing Media
CS3
Flow Rate
100 GPM
Weight
230 lbs.

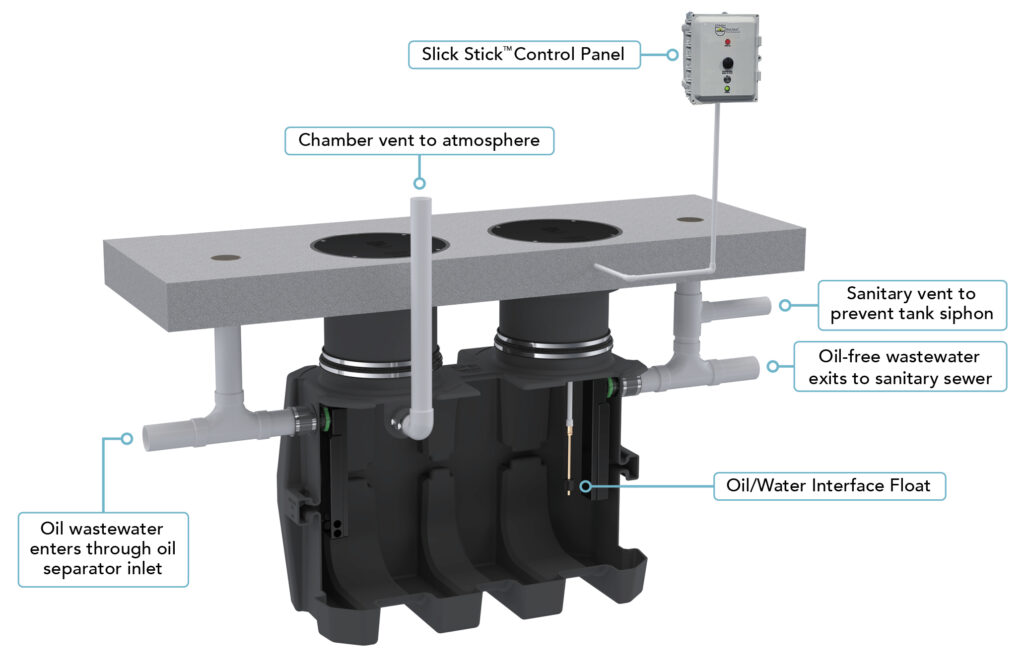

Tank is fabricated to accept Slick Stick™

CAPACITIES

Total
250 gal. / 33 cu. ft.
Oil
144 gal.
Sand
95 gal.

DIMENSIONS

L x W x H
68" x 33" x 51-1/2"

CONNECTIONS

Inlet & Outlet
4” plain end
Vent (one on each side)
3” plain end

MATERIAL OF CONSTRUCTION

Tank
Rotationally-molded polyethylene
Covers
Traffic-rated bolted composite

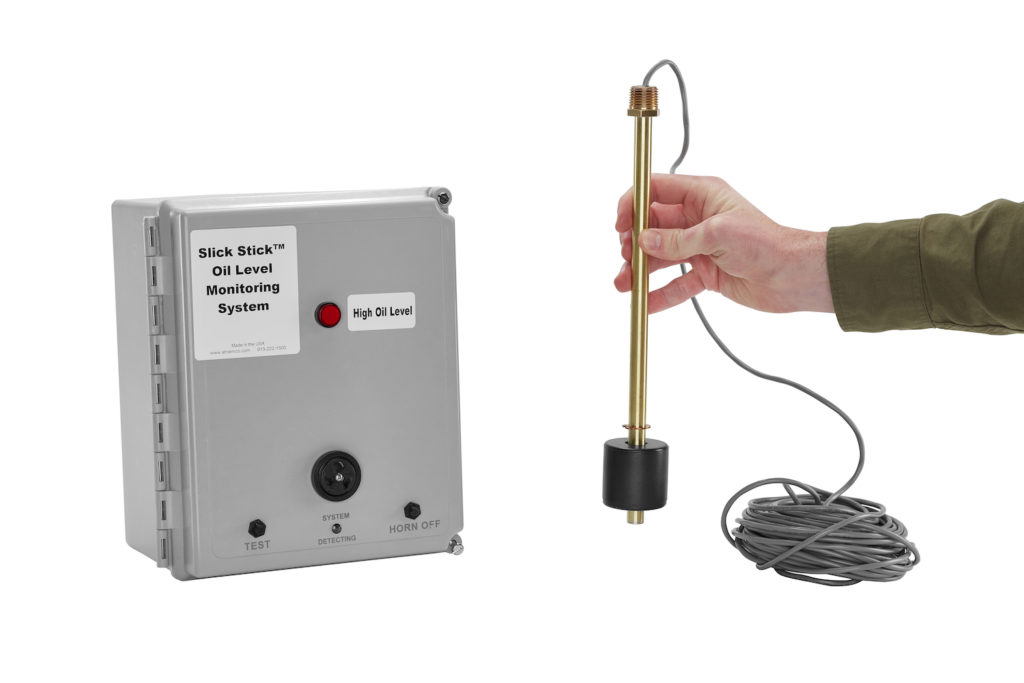

Slick Stick™

UL Listed
NEMA 4X weatherproof enclosure
120 volt power required
Provides audible and visual indicator when oil level is met
Unit supplied with extra dry contact for BMS hookup
