OS-50-SS | $7,300 list

50 GPM Oil Separator with Slick Stick™

Downloads

Specifications
Revit
RFA
Install & Maint. (OS-50)
PDF
Install & Maint. (Slick Stick™)
PDF
Flow Rate
50 GPM
Weight
92 lbs.
Tank is fabricated to accept Slick Stick™

CAPACITIES

Total
57 gal. / 7 cu. ft.
Oil
40 gal.
Sand
7 gal.

DIMENSIONS

L x W x H
37" x 28" x 28-1/2"

CONNECTIONS

Inlet & Outlet
4" plain end
Vent (one on each side)
3" plain end

MATERIAL OF CONSTRUCTION

Tank
Rotationally-molded polyethylene
Cover

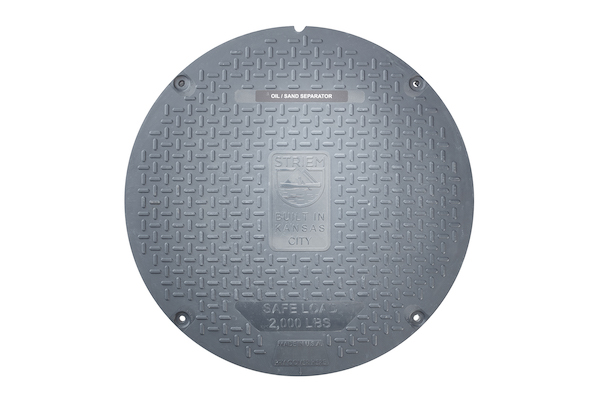

Pedestrian-rated bolted composite

Slick Stick™

UL Listed
NEMA 4X weatherproof enclosure
120 volt power required
Provides audible and visual indicator when oil level is met
Unit supplied with extra dry contact for BMS hookup
