CB-500-G

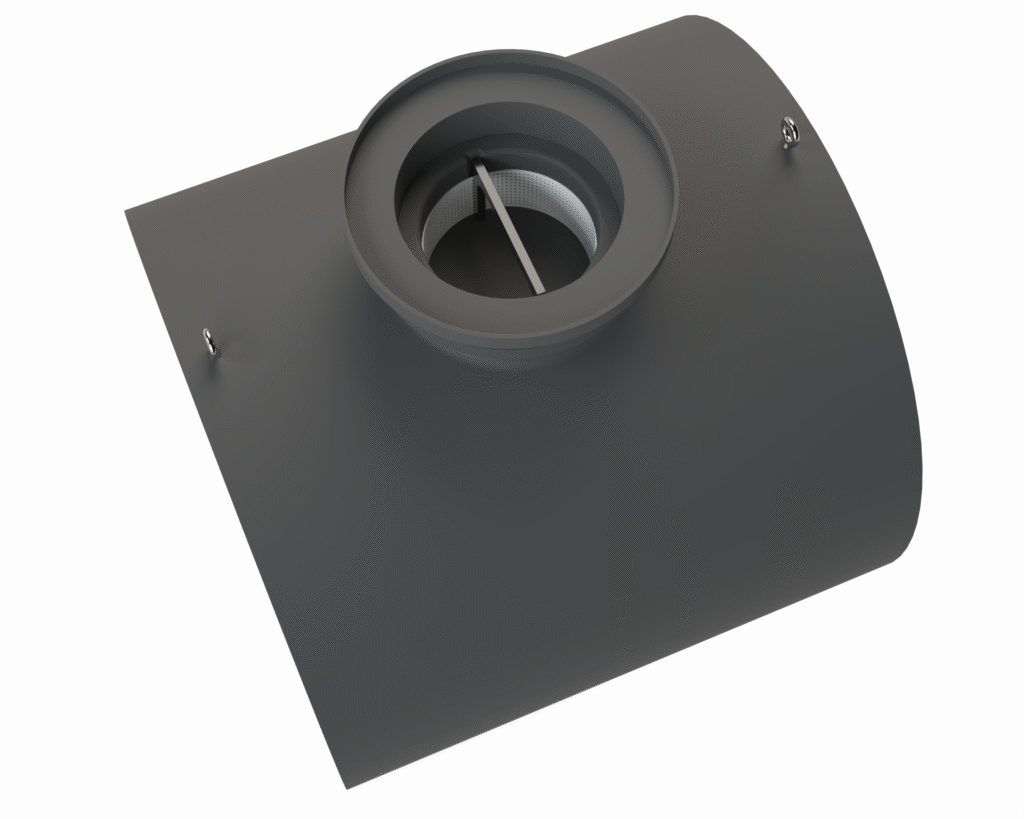

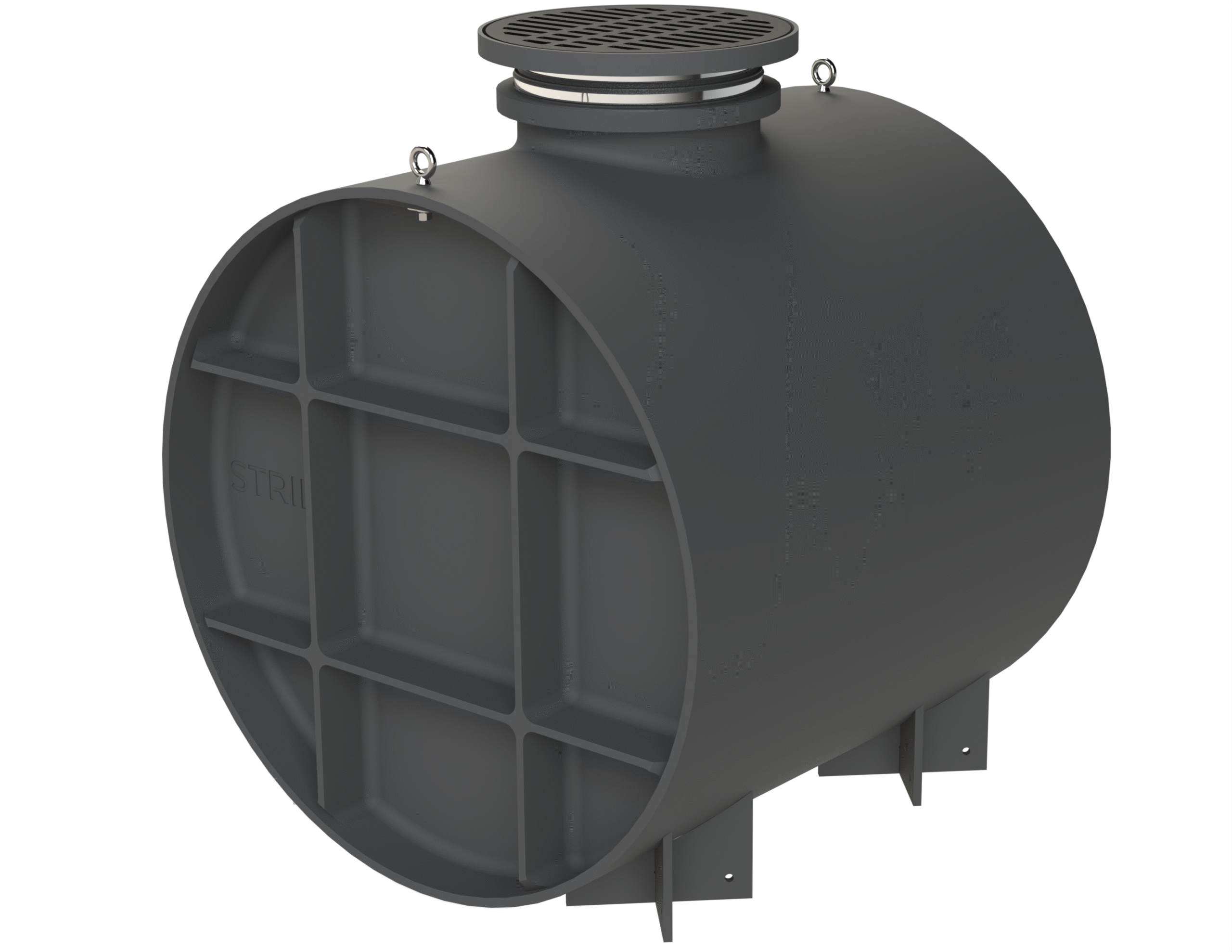

500 Gallon Sand Interceptor, Grated Cover

$18,600 list

Ships in: 7 business days

Downloads:

Specifications
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF
  • Weight

    900 lbs.

CAPACITIES

  • Liquid

    500 gal. / 66 cu. ft.

  • Solids

    400 gal.

  • Basket

    7 gal.

DIMENSIONS

  • L x W x H

    60" x 61-3/4" x 71"

CONNECTIONS

  • Outlet

    6" plain end

MATERIAL OF CONSTRUCTION

  • Tank

    1" thick polyethylene

  • Cover

    H20-rated cast iron grate

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • 5 to 21":

    SR-24

  • Up to 36":

    LR-24

  • Up to 40":

    SR-24 (x2)

  • Up to 55":

    SR-24 + LR-24

  • Up to 69":

    LR-24 (x2)

  • Up to 87":

    SR-24 + LR-24 (x2)

  • Up to 103":

    LR-24 (x3)

HIGH WATER ANCHOR KIT
