LB-1000

• Weight

  1,144 lbs.

• Number of Lab Sinks

  260

CAPACITIES

• Liquid

  1,000 gal. / 133.7 cu. ft.

DIMENSIONS

• L x W x H

  110" x 61-3/4" x 71"

STANDARD CONNECTIONS

• Inlet/Outlet

  6" plain end

• Vents

  3" plain end

MATERIAL OF CONSTRUCTION

• Tank

  1" thick polyethylene

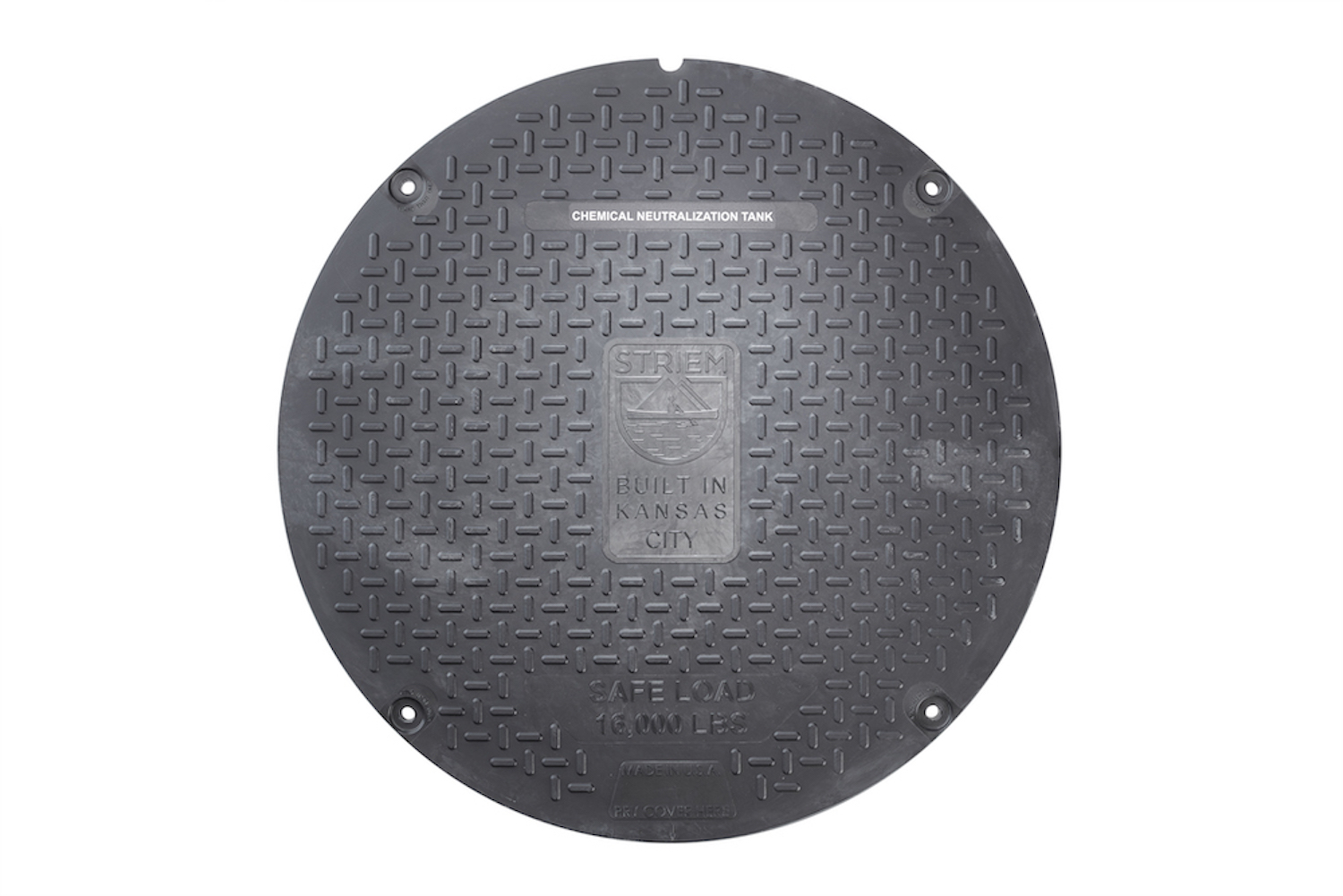

• Covers

  Traffic-rated bolted composite

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

RISERS

• SR-24

  $720 list each

• LR-24

  $860 list each

• -OR-

• CPRK

  $740 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 5":

  Included with cover adapter

• Up to 24":

  SR-24 (x3)

• Up to 39":

  LR-24 (x3)

• Up to 43":

  SR-24 (x6)

• Up to 58":

  SR-24 (x3) + LR-24 (x3)

• Up to 72":

  LR-24 (x6)

• Up to 90":

  SR-24 (x3) + LR-24 (x6)

• Up to 106":

  LR-24 (x9)

• -OR-

• 11" - 106":

  CPRK (x3) *corrugated pipe by others

LIMESTONE

• LS-50: 50 lbs. bag

  $100 list

• *LB-1000 requires (260) LS-50, equal to 13,000 lbs. of limestone

HIGH WATER ANCHOR KIT

• HDK-5

  $1,300 list

PH MONITORING SYSTEM

• CC-1: Command Center™

  $19,500 list

• SPK: Sensor placement kit*

  $2,000 list

• *Required with CC-1
