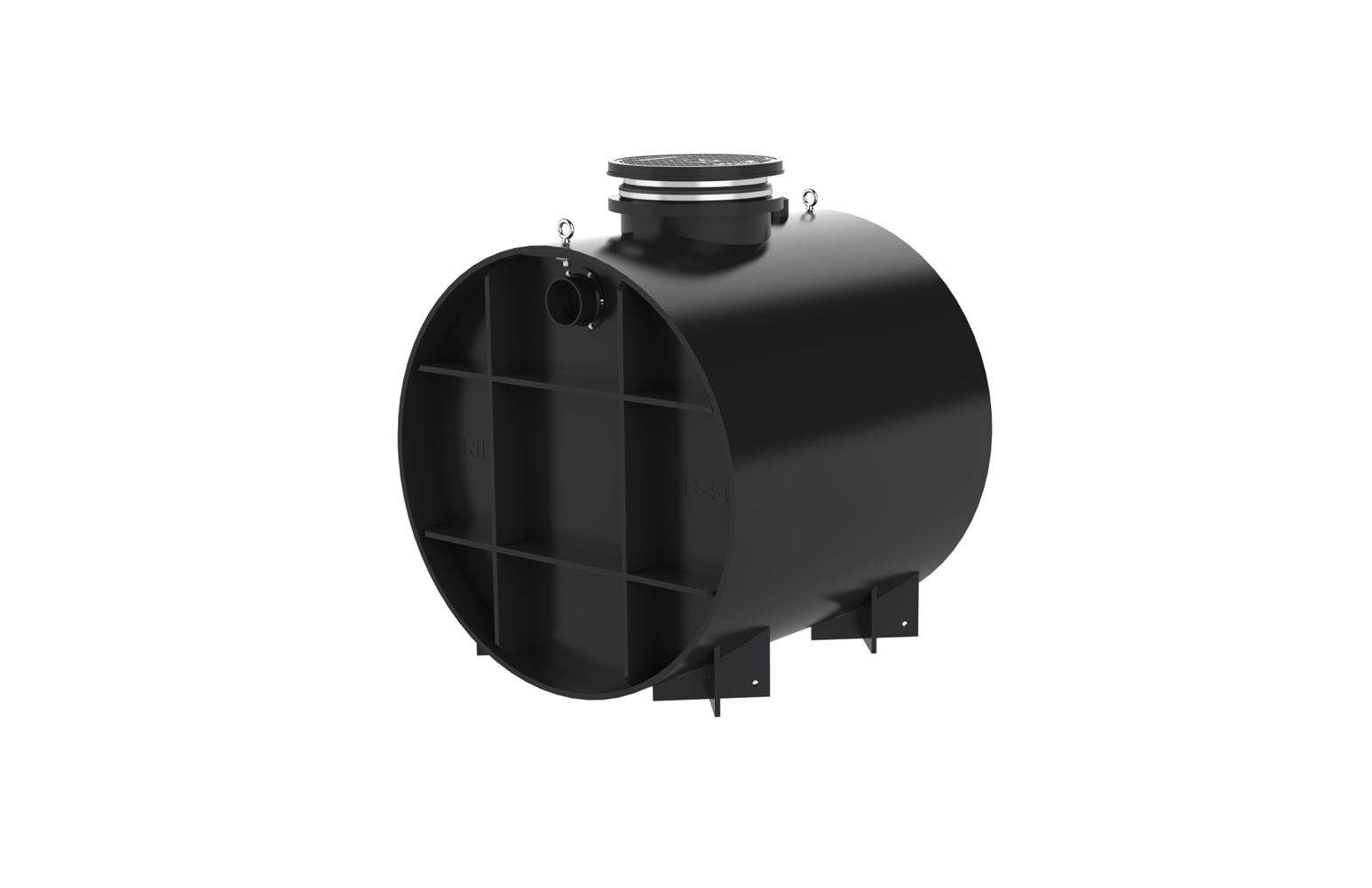

LB-500

• Weight

  456 lbs.

• Number of Lab Sinks

  150

CAPACITIES

• Liquid

  500 gal. / 67 cu. ft.

DIMENSIONS

• L x W x H

  96" x 48" x 51"

STANDARD CONNECTIONS

• Inlet/Outlet

  4" plain end

• Vents

  2" plain end

MATERIAL OF CONSTRUCTION

• Tank

  Polyethylene

• Covers

  Cast iron

CONNECTIONS

• Inlet & Outlet

  4" plain end (-4P)

• 6" plain end (-6P)

Cover (no charge)

• C24-M

  Bolted composite

RISERS

• SR-24

  $780 list each

• LR-24

  $880 list each

• -OR-

• CPRK

  $780 list each

BURIAL DEPTH (COVER-TO-GRADE)

• Up to 5":

  Included with cover adapter

• Up to 24":

  SR-24 (x2)

• Up to 39":

  LR-24 (x2)

• Up to 43":

  SR-24 (x4)

• Up to 58":

  SR-24 (x2) + LR-24 (x2)

• Up to 72":

  LR-24 (x4)

• Up to 90":

  SR-24 (x2) + LR-24 (x4)

• Up to 106":

  LR-24 (x6)

• -OR-

• 11" - 106":

  CPRK *corrugated pipe by others

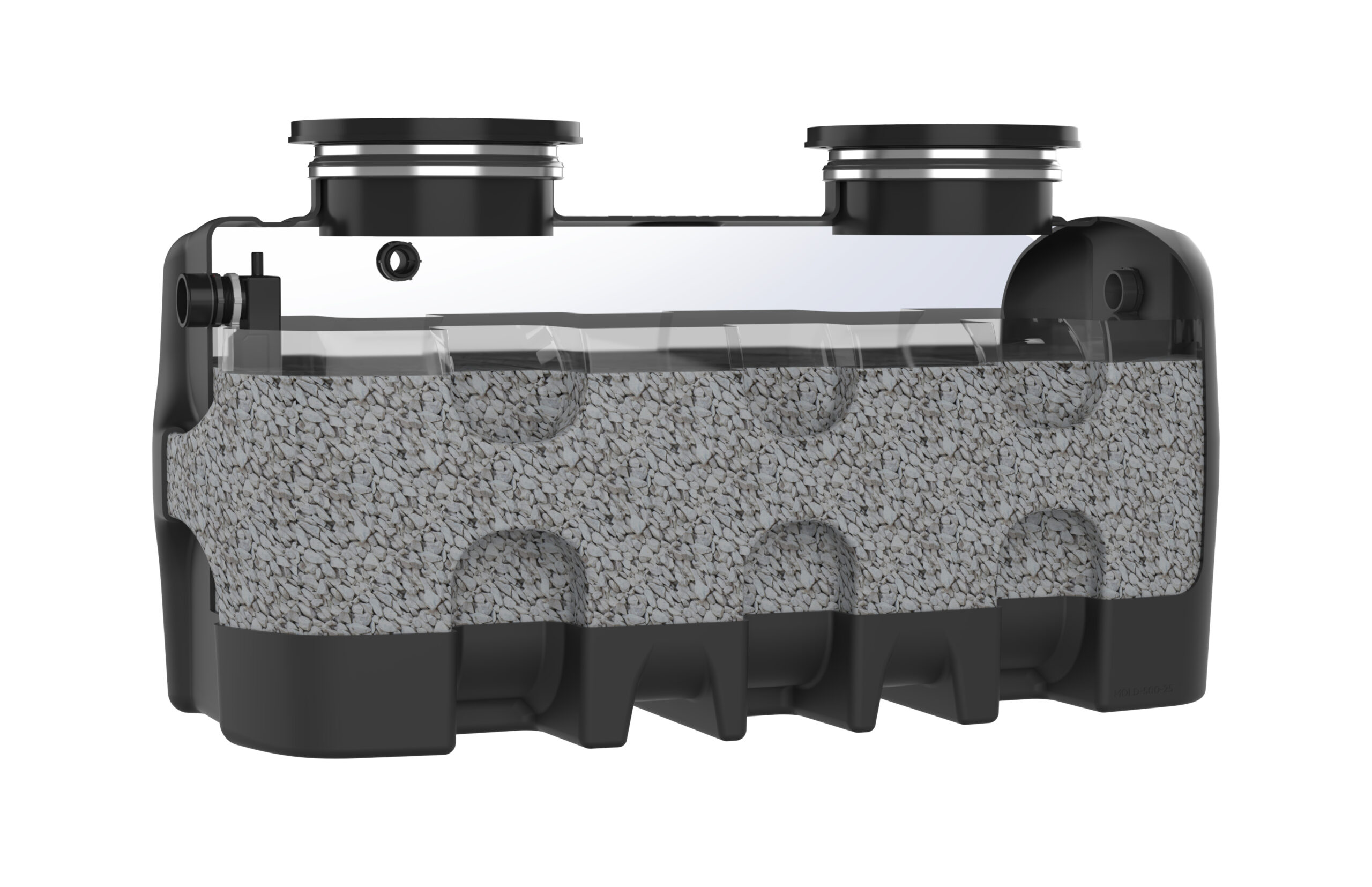

LIMESTONE

• LS-50: 50 lbs. bag

  $100 list

• *LB-500 requires (130) LS-50, equal to 6,500 lbs. of limestone

HIGH WATER ANCHOR KIT

• HDK-13

  $1,900 list

• HDK-14

  $700 list

PH MONITORING SYSTEM

• CC-1: Command Center™

  $19,500 list

• SPK: Sensor placement kit*

  $2,000 list

• *Required with CC-1
