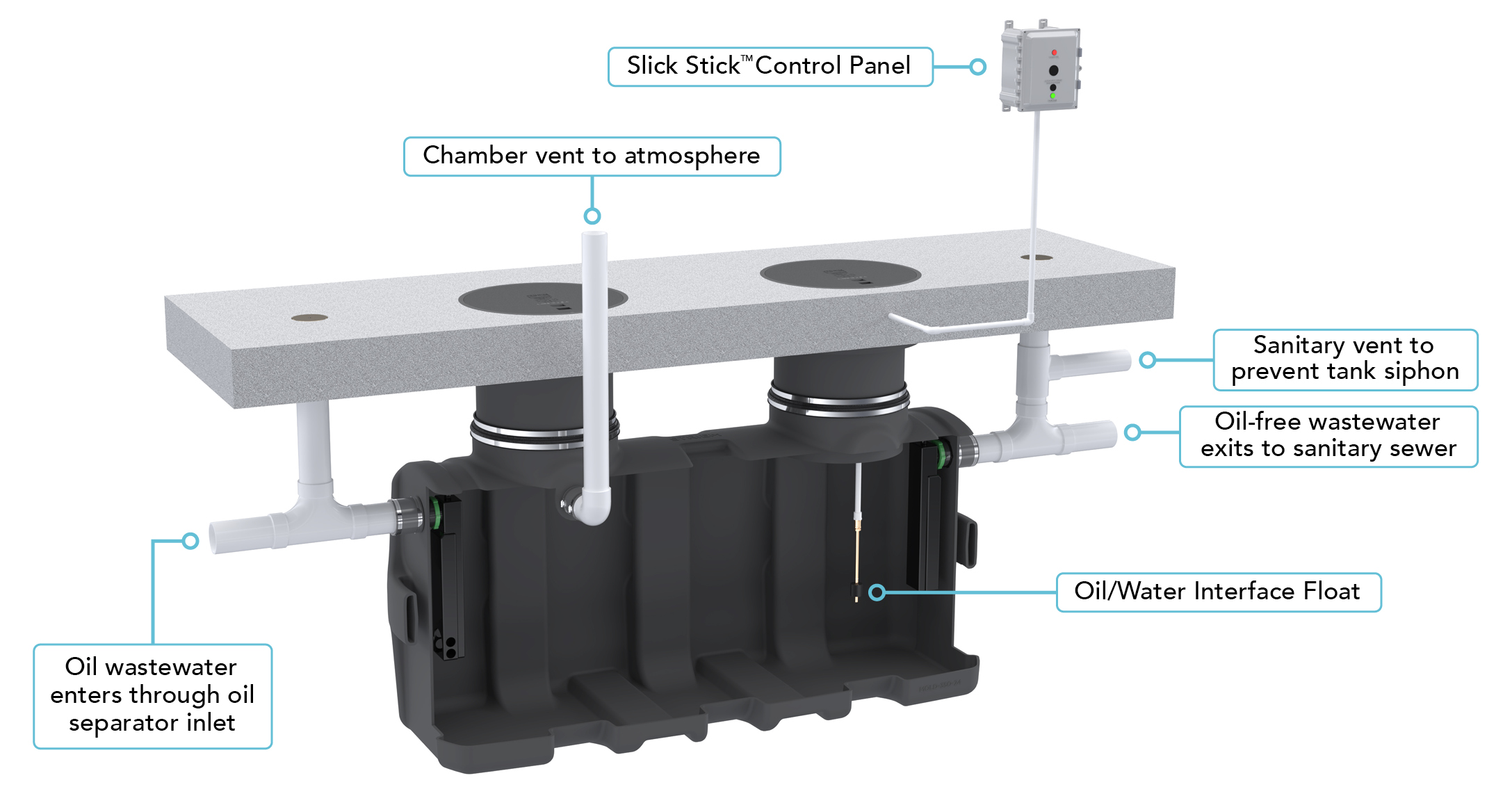

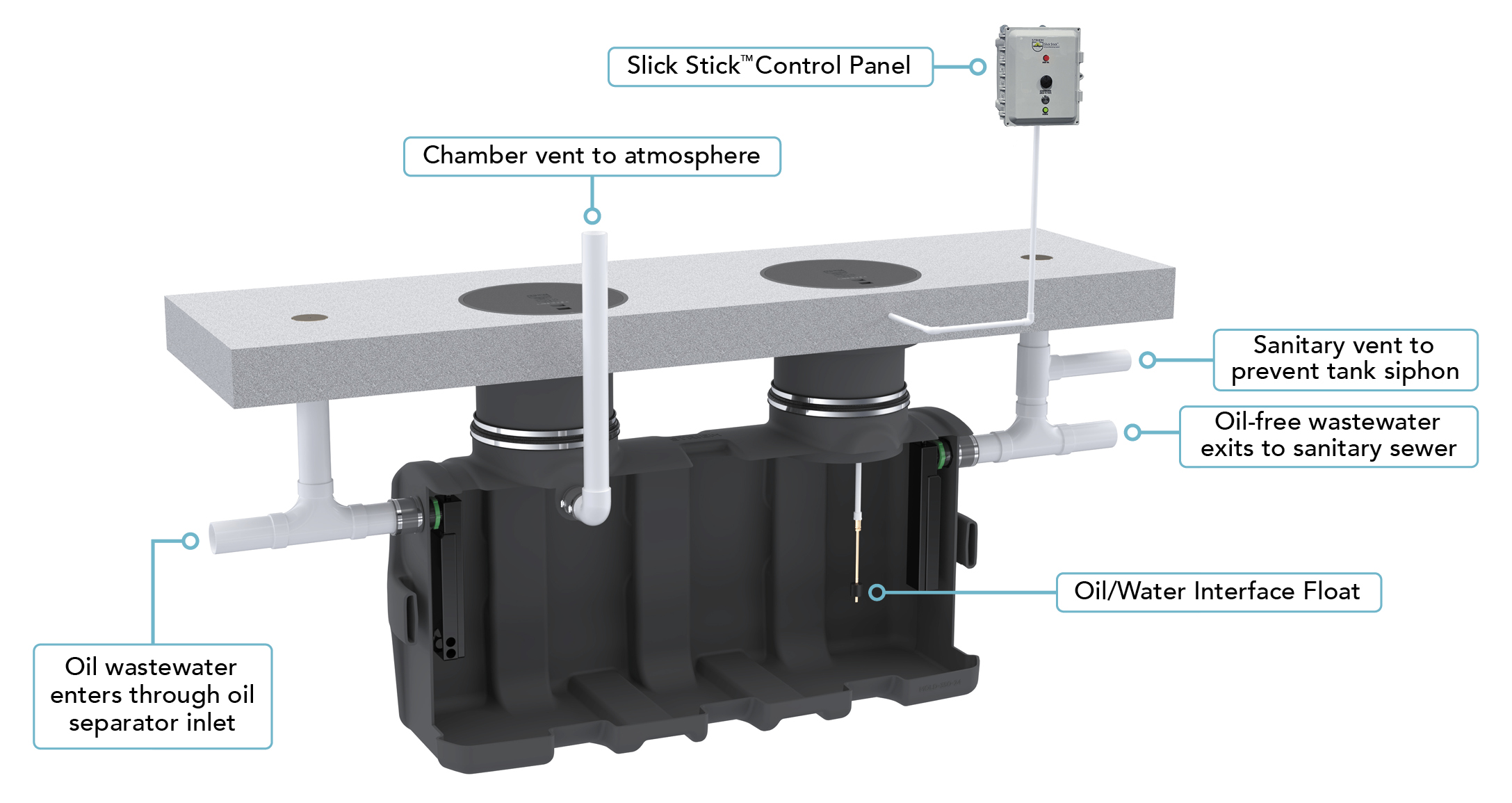

100 GPM Oil/Water Separator with Slick Stick™

Listed by IAPMO to IGC 325

$14,900 list

Ships in: 3 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
(OS-350) (SS)

Product Details

  • Flow Rate

    100 GPM

  • Weight

    410 lbs.

Capacities

  • Total

    350 gal. / 46.8 cu. ft.

  • Oil

    87.5 gal.

  • Sand

    114 gal.

Dimensions

  • L x W x H

    95" x 33" x 51"

Connections

  • Inlet & Outlet

    4” plain end

  • Vents

    3" plain end

Material of Construction

  • Tank

    Rotationally-molded polyethylene

  • Covers

    H20-rated pickable cast iron

Options & Accessories

Connections

  • Inlet & Outlet

    4” plain end (-4P)

  • 6” plain end (-6P)

COVERS

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 2":

    Included with cover adapter

  • Up to 21":

    SR-24 (x2)

  • Up to 36":

    LR-24 (x2)

  • Up to 40":

    SR-24 (x4)

  • Up to 55":

    SR-24 (x2) + LR-24 (x2)

  • Up to 69":

    LR-24 (x4)

  • Up to 87":

    SR-24 (x2) + LR-24 (x4)

  • -OR-

  • 11" - 87"

    CPRK (x2) *corrugated pipe by others

High Water Hold Down Kits
