LB-50 | $2,200 list

57 Gallon Neutralization Tank

Downloads

Specifications

PDF DWG

Revit

RFA

Install & Maint.

PDF

Weight

92 lbs.

Number of Lab Sinks

15

CAPACITIES

Liquid

57 gal.

DIMENSIONS

L x W x H

37" x 28" x 28-1/2"

STANDARD CONNECTIONS

Built Per Specification - See "Downloads" Section

MATERIAL OF CONSTRUCTION

Tank

Rotationally-molded polyethylene

Cover

Pedestrian-rated bolted composite

CONNECTIONS

Inlet & Outlet

2" plain end (-2P)

2" female thread (-2F)

2" flanged

3" plain end (-3P)

3" female thread (-3F)

3" flanged

4" plain end (-4P)

4" female thread (-4F)

4" flanged

Vent

2" plain end (-2P)

3" plain end (-2P)

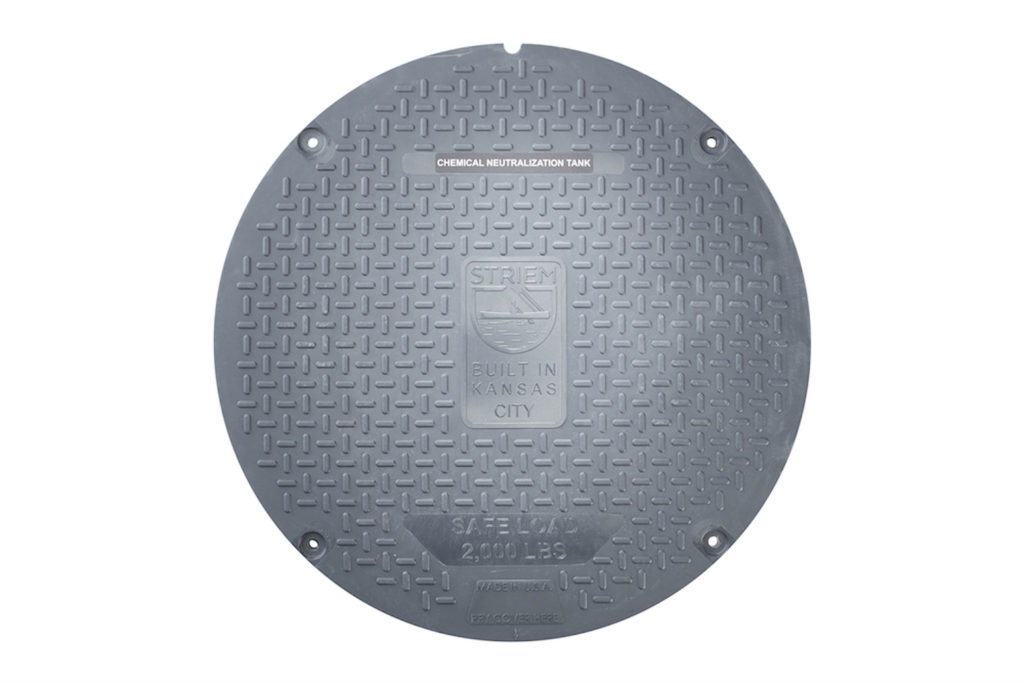

COVER

C24-H

Traffic-rated bolted composite

RISERS

Up to 5": Included with cover adapter

N/A

Up to 24": SR-24

$640 list

Up to 39": LR-24

$760 list

LIMESTONE

LS-50: 50 lbs. bag

$60 list

*LB-50 requires (13) LS-50, equal to 650 lbs. of limestone

HIGH WATER HOLD DOWN KIT

HDK-2

$780 list

PH MONITORING SYSTEM

CC-1: Command Center™

$17,500 list

SPK-A: Above-grade sensor placement kit*

$450 list

SPK-B: Below-grade sensor placement kit*

$1,700 list

*Required with CC-1
