OS-100-OMAHA

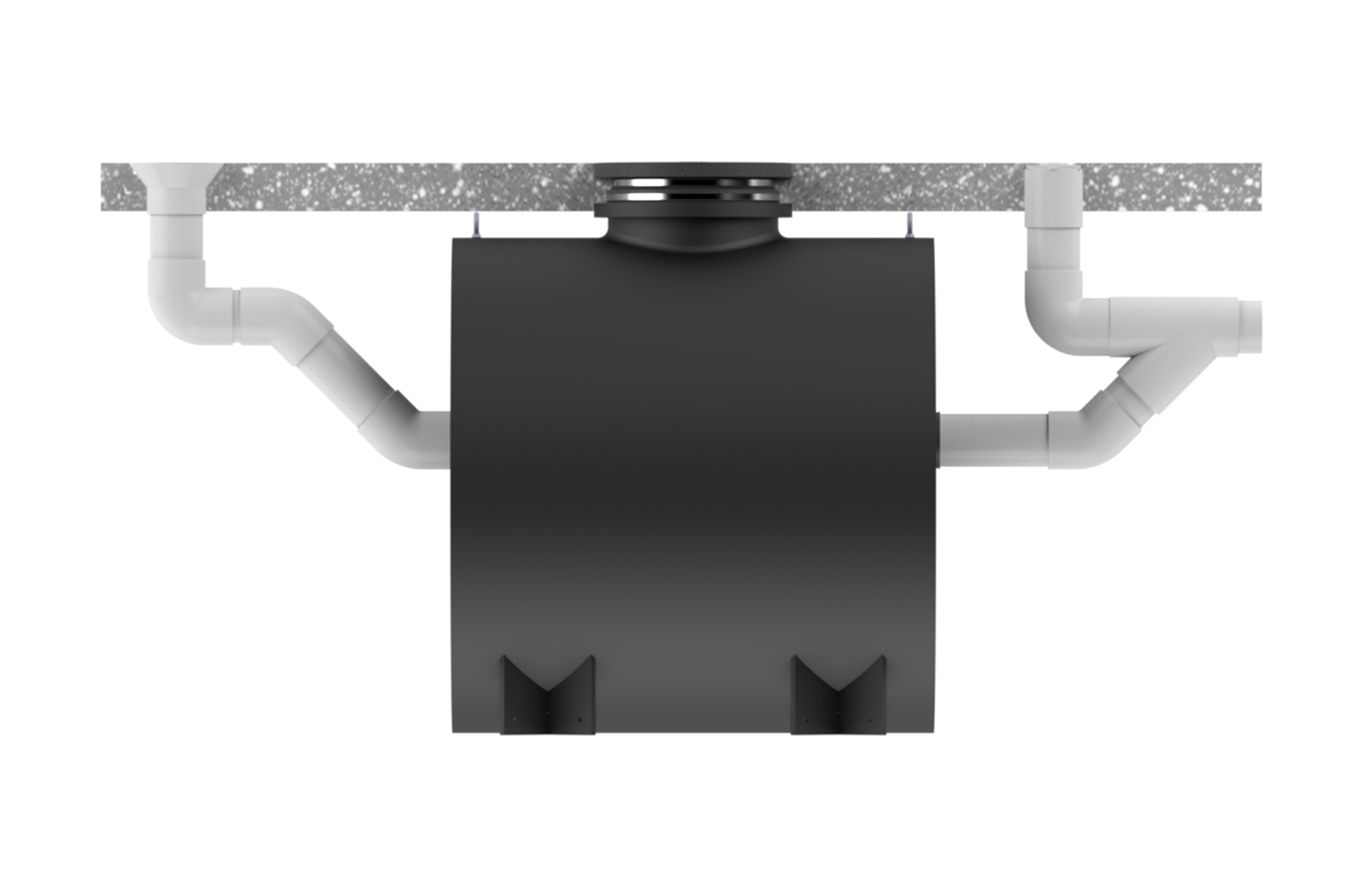

OS-500-OMAHA

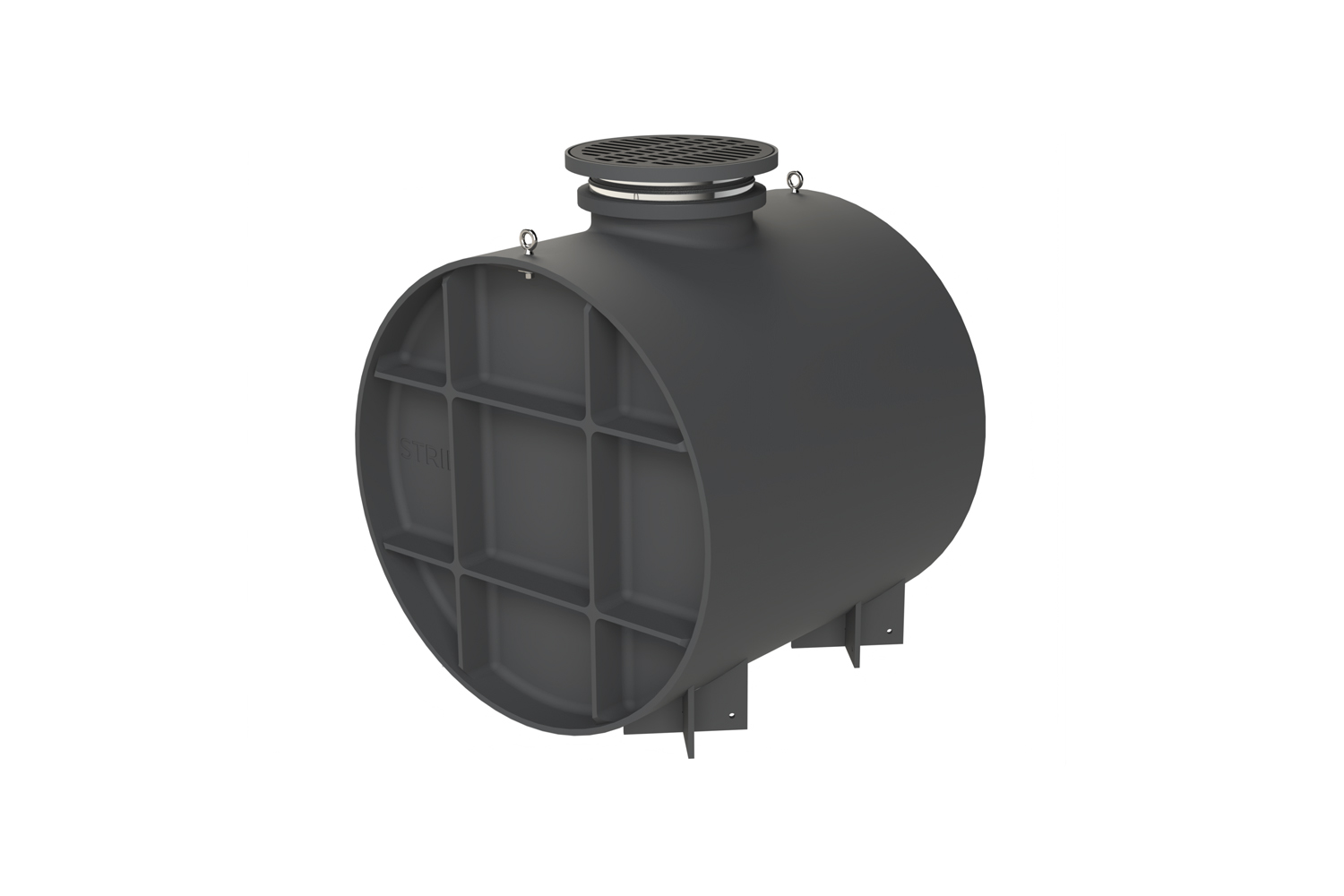

Omaha Type I & Type II Interceptor

$17,900 list

Ships in: 7 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    314 GPM

  • Weight

    845 lbs.

Capacities

  • Total

    475 gal. / 63.5 cu. ft.

  • Oil

    86 gal.

  • Sand

    320 gal.

Dimensions

  • L x W x H

    60" x 61-3/4" x 71"

Connections

  • Inlet & Outlet

    6” plain end

  • Vents

    4” plain end

Material of Construction

  • Tank

    1" thick polyethylene

  • Covers

    Cast iron

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

COVER (no charge)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • Up to 5":

    Included with cover adapter

  • Up to 24":

    SR-24

  • Up to 39":

    LR-24

  • Up to 43":

    SR-24 (x2)

  • Up to 58":

    SR-24 + LR-24

  • Up to 72":

    LR-24 (x2)

  • Up to 90":

    SR-24 + LR-24 (x2)

  • Up to 106":

    LR-24 (x3)

  • -OR-

  • 11" - 106":

    CPRK *corrugated pipe by others

HIGH WATER ANCHOR KIT
