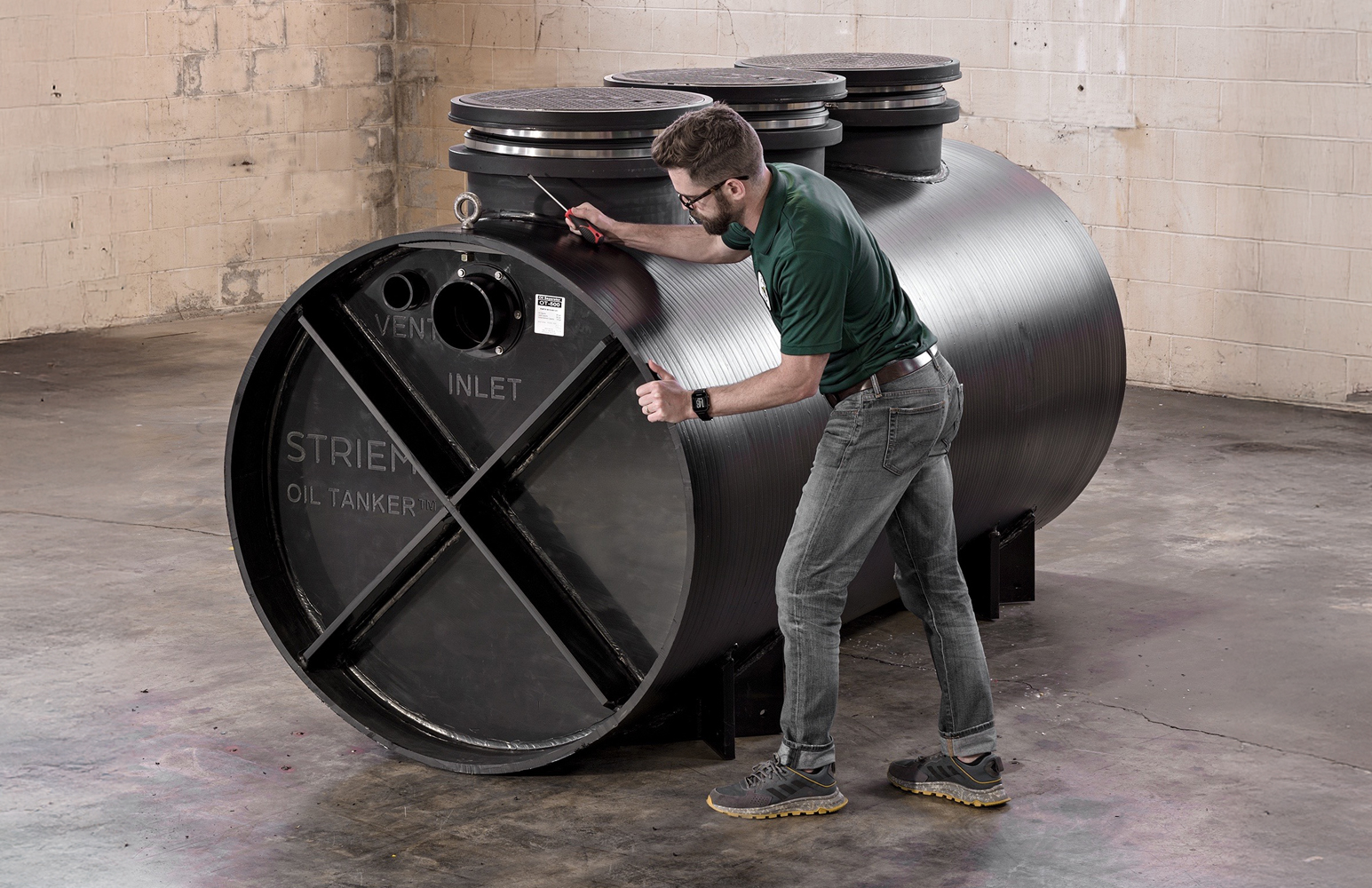

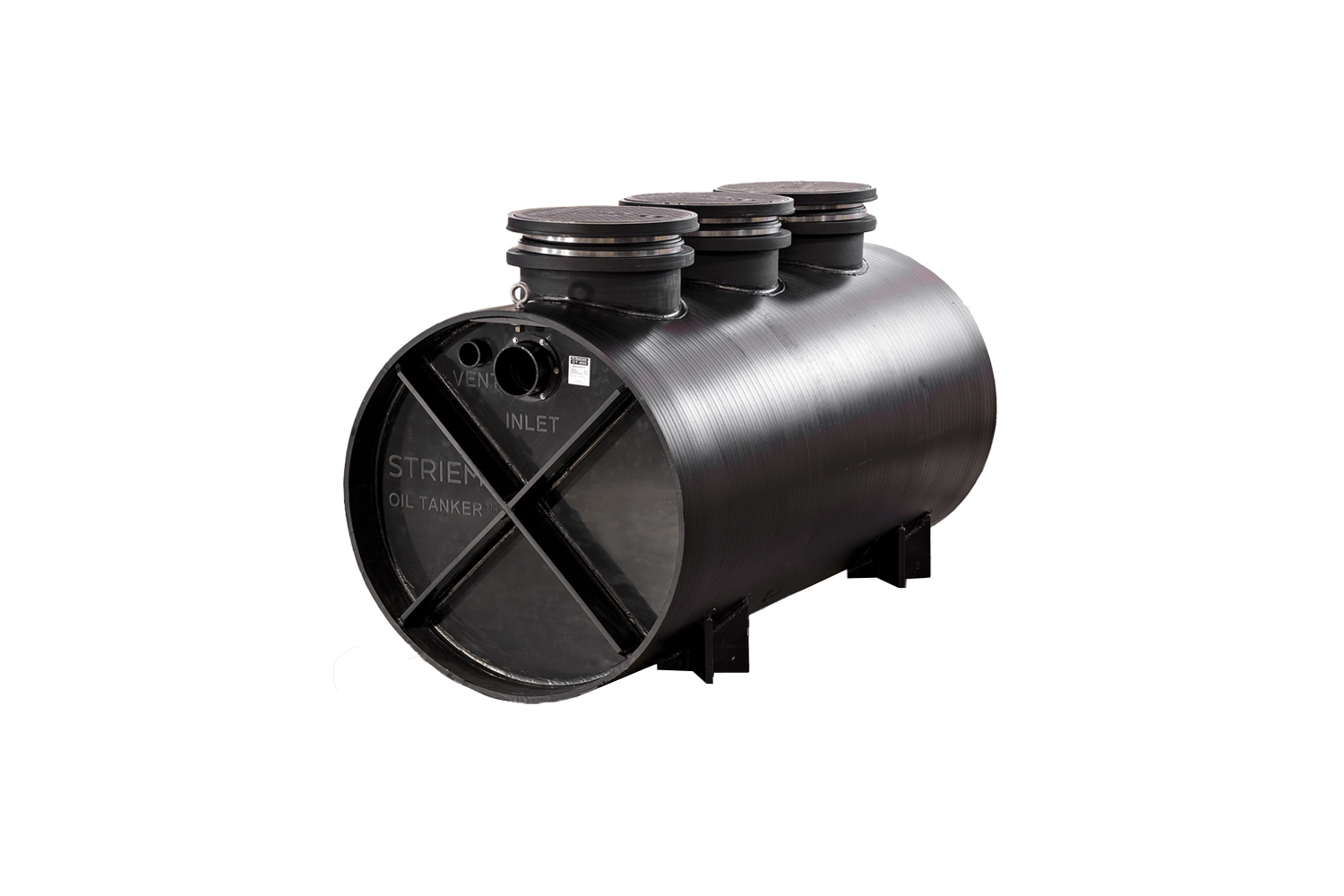

500 Gallon Oil Separator

$17,900 list

Ships in: 7 business days

Downloads:

Specifications
PDF DWG
Revit
RFA
Slab Detail
DWG
Install & Maint.
PDF

Product Details

  • Flow Rate

    314 GPM

  • Weight

    1,025 lbs.

CAPACITIES

  • Total

    562 gal. / 75 cu. ft.

  • Oil

    285 gal.

  • Sand

    162 gal.

DIMENSIONS

  • L x W x H

    103" x 49-3/4" x 59"

Material of Construction

  • Tank

    1" thick polyethylene

  • Covers

    H20-rated pickable cast iron

Options & Accessories

CONNECTIONS

  • Inlet & Outlet

    4" plain end (-4P)

  • 6" plain end (-6P)

  • 8" plain end (-8P)

RISERS

BURIAL DEPTH (COVER-TO-GRADE)

  • 30" to 35":

    SR-24 (x2)

  • Up to 53":

    LR-24 (x3)

  • Up to 57":

    SR-24 (x6)

  • Up to 72":

    SR-24 (x3) + LR-24 (x3)

  • Up to 86":

    LR-24 (x6)

  • Up to 104":

    SR-24 (x3) + LR24 (x6)

  • Up to 120":

    LR-24 (x9)

  • -OR-

  • 30" - 120":

    CPRK (x3) *corrugated pipe by others

Oil Level Monitoring System

  • Slick Stick™

    $5,700 list

  • *Monitoring system will raise covers by 3".

High Water Hold Down Kit
