Auto Services
Slick Stick ™
Oil level monitoring system
Common Applications
- 1. Vehicle service / repair
- 2. Fire / police stations
- 3. Hydraulic elevator pits
- 4. Car washes
- 5. Parking garages
- 6. Loading docks
- 7. Airports / hangars
Sizing Tools
Video
×
98%
Listed by IAPMO to IGC 325
OS-50-SS
50 GPM | 57 GAL. with Slick Stick
$9,100 list
Live
Product Lead Time:
3 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
50 GPM
Weight
93 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
57 gal. / 7.6 cu. ft.
Oil
14.25 gal.
Sand
7 gal.
DIMENSIONS
L x W x H
37" x 28" x 31-1/2"
CONNECTIONS
Inlet & Outlet
4" plain end
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
Polyethylene
Cover
Bolted composite
Slick Stick™
UL Listed
NEMA 4X weatherproof enclosure
120 volt power required
Provides audible and visual indicator when oil level is met
Unit supplied with extra dry contact for BMS hookup
×
99%
Listed by IAPMO to IGC 325
OS-75-SS
75 GPM | 110 GAL. with Slick Stick
$10,200 list
Live
Product Lead Time:
3 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
50 GPM
Weight
120 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
110 gal. / 14.7 cu. ft.
Oil
27.5 gal.
Sand
11 gal.
DIMENSIONS
L x W x H
46" x 32" x 41-1/2"
CONNECTIONS
Inlet & Outlet
4" plain end
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
Rotationally-molded polyethylene
Cover
Cast iron
Slick Stick™
UL Listed
NEMA 4X weatherproof enclosure
120 volt power required
Provides audible and visual indicator when oil level is met
Unit supplied with extra dry contact for BMS hookup
×
99%
Listed by IAPMO to IGC 325
OS-100-SS
100 GPM | 250 GAL. with Slick Stick
$13,300 list
Live
Product Lead Time:
3 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
75 GPM
Weight
225 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
250 gal. / 33.4 cu. ft.
Oil
62.5 gal.
Sand
95 gal.
DIMENSIONS
L x W x H
68" x 33" x 54-1/2"
CONNECTIONS
Inlet & Outlet
4” plain end
Vents
3” plain end
MATERIAL OF CONSTRUCTION
Tank
Rotationally-molded polyethylene
Covers
Cast iron
Slick Stick™
UL Listed
NEMA 4X weatherproof enclosure
120 volt power required
Provides audible and visual indicator when oil level is met
Unit supplied with extra dry contact for BMS hookup
×
99%
Listed by IAPMO to IGC 325

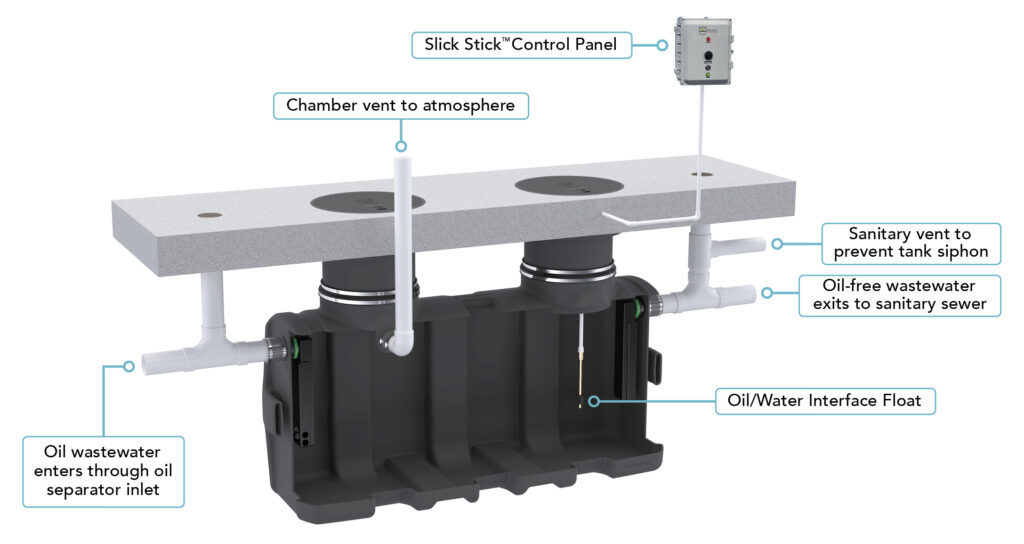

OS-350-SS
100 GPM | 350 GAL. with Slick Stick
$15,200 list
Live
Product Lead Time:
3 business days
Lead time based on 5 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
100 GPM
Weight
410 lbs.
Capacities
Total
350 gal. / 46.8 cu. ft.
Oil
87.5 gal.
Sand
114 gal.
Dimensions
L x W x H
95" x 33" x 51"
Connections
Inlet & Outlet
4” plain end
Vents
3" plain end
Material of Construction
Tank
Rotationally-molded polyethylene
Covers
Cast iron
×
99%
Listed by IAPMO to IGC 325

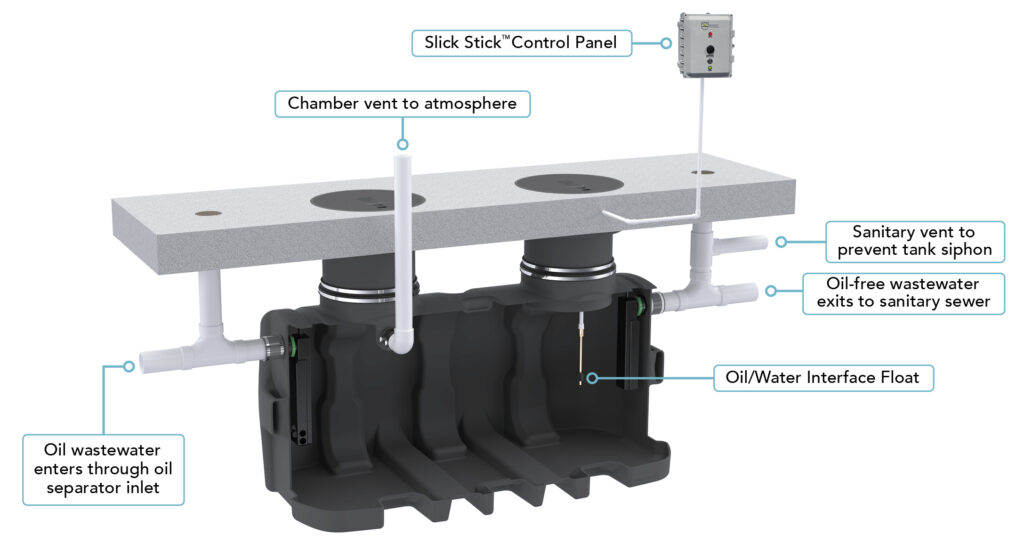

OS-500-SS
100 GPM | 500 GAL. with Slick Stick
$19,200 list
Live
Product Lead Time:
3 business days
Lead time based on 5 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
100 GPM
Weight
456 lbs.
Capacities
Total
500 gal. / 66.8 cu. ft.
Oil
125 gal.
Sand
164 gal.
Dimensions
L x W x H
96" x 48" x 51"
Connections
Inlet & Outlet
4” plain end
Vents
3” plain end
Material of Construction
Tank
Rotationally-molded polyethylene
Covers
Cast iron
Downloads
×
Listed by IAPMO to IGC 183-2016

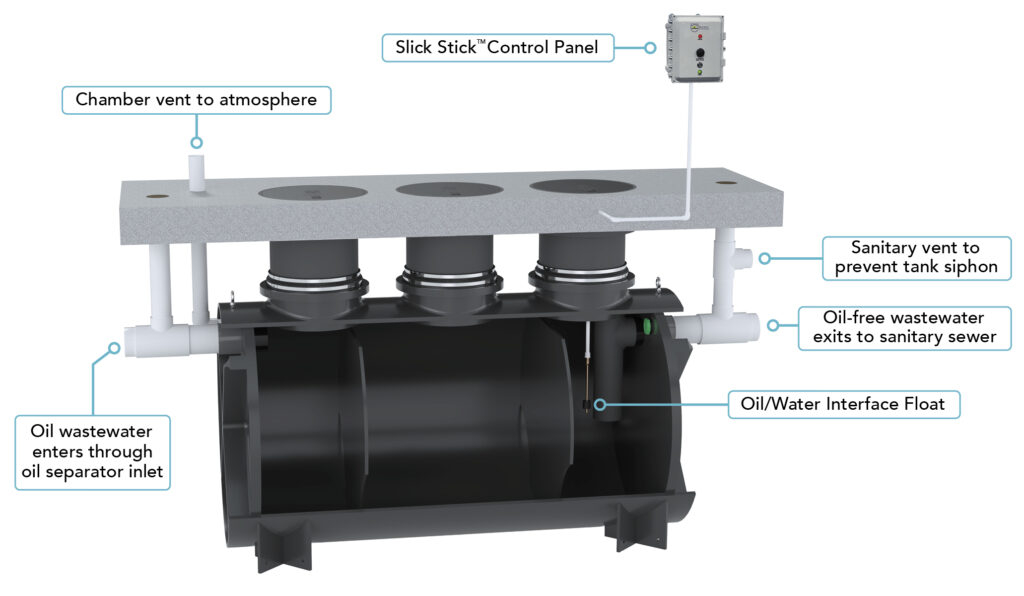

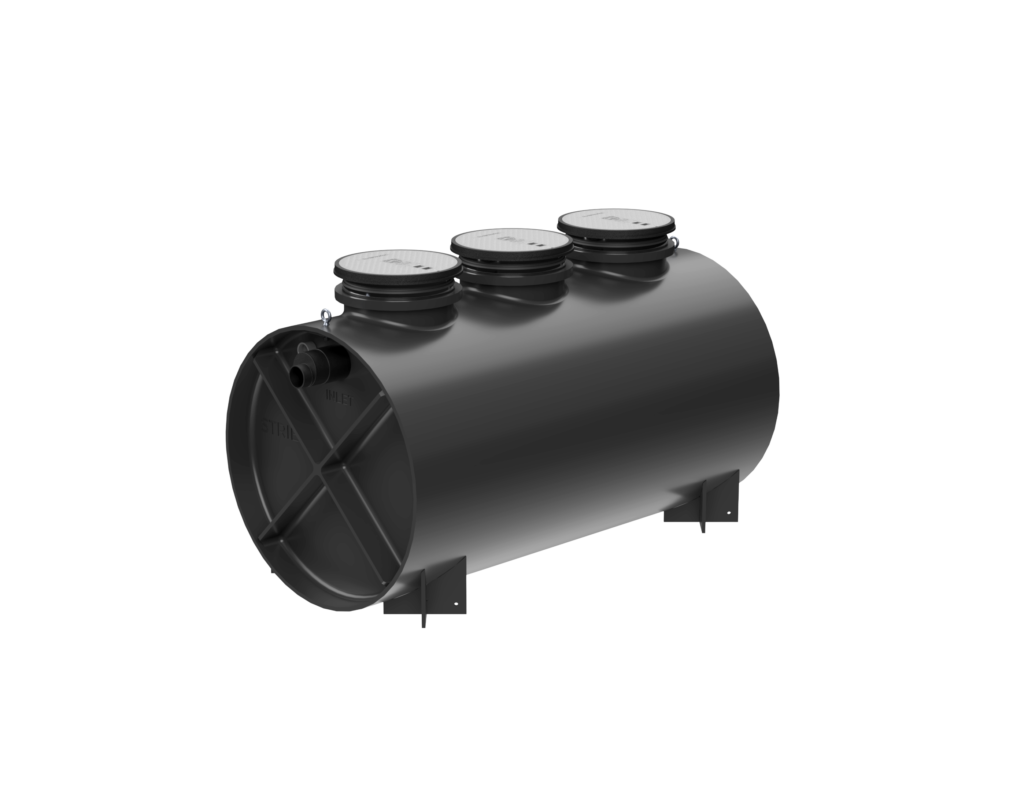

OT-750-SS
750 Gallon Oil Separator with Slick Stick™
$27,000 list
Live
Product Lead Time:
7 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
314 GPM
Weight
1,253 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
750 gal. / 100 cu. ft.
Oil
323 gal.
Sand
295 gal.
DIMENSIONS
LxWxH
105" x 55-3/4" x 68"
CONNECTIONS
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
1" thick polyethylene
Covers
Cast iron
×
Listed by IAPMO to IGC 183-2016
OT-1000-SS
1,000 Gallon Oil Separator with Slick Stick™
$31,800 list
Live
Product Lead Time:
7 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
314 GPM
Weight
1,324 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
1,000 gal. / 134 cu. ft.
Oil
370 gal.
Sand
477 gal.
DIMENSIONS
LxWxH
110" x 61-3/4" x 74"
CONNECTIONS
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
1" thick polyethylene
Covers
Cast iron
×
Listed by IAPMO to IGC 183-2016
OT-1500-SS
1,500 Gallon Oil Separator with Slick Stick™
$38,200 list
Live
Product Lead Time:
7 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
314 GPM
Weight
1,676 lbs.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
1,500 gal. / 201 cu. ft.
Oil
488 gal.
Sand
825 gal.
DIMENSIONS
LxWxH
132" x 67-3/4" x 80"
CONNECTIONS
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
1" thick polyethylene
Covers
Cast iron
×
Listed by IAPMO to IGC 183-2016
OT-2000-SS
2,000 Gallon Oil Separator with Slick Stick™
$48,400 list
Live
Product Lead Time:
7 business days
Lead time based on 2 units or fewer. For higher quantities, Contact Striem.
Liquid capacity
DIMENSIONS
L x W x H
Flow Rate
314 GPM
Weight
2,000 lbs. / 267 cu. ft.
Tank is fabricated to accept Slick Stick™
CAPACITIES
Total
2,000 gal. / 267 cu. ft.
Oil
638 gal.
Sand
1,077 gal.
DIMENSIONS
LxWxH
168" x 67-3/4" x 80"
STANDARD CONNECTIONS
Vents
3" plain end
MATERIAL OF CONSTRUCTION
Tank
1" thick polyethylene
Covers
Cast iron
